Small Component Cleaning
Sand Blasting Cabinet blasts parts that fit the grate and gloves.
EnquireSand Blasting
Sand blasting cabinet is another type of sand blasting machine that has a cabinet and is a closed form of the machine. In the closed section, pollutants are blasted and sand blasting sand is recycled. Cleaning, recycling, and collecting dust products are among the additional responsibilities.
Browse full product photos, component close-ups, and application views.
Review the key product specifications used for quotation and application planning.
Watch how the machine performs in real blasting and surface preparation conditions.
Sand blasting cabinet is another type of sand blasting machine that has a cabinet and is a closed form of the machine. In the closed section, pollutants are blasted and sand blasting sand is recycled. Cleaning, recycling, and collecting dust products are among the additional responsibilities.
The part is placed inside Sand Blasting Cabinet and the door is latched.
Dust collection runs before blasting so the window stays clear.
Gloves and the internal gun direct abrasive at the work.
Media removes rust, paint, or scale in a closed cabinet.
Grit falls to the hopper and is reused through the gun.
Blasting stops, dust settles, and the finished part is removed.

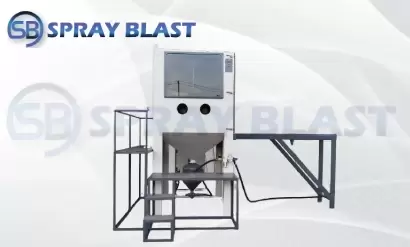

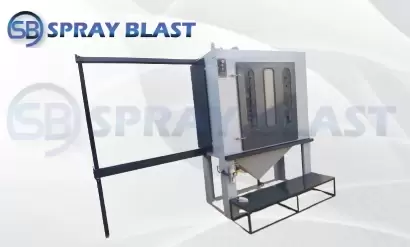

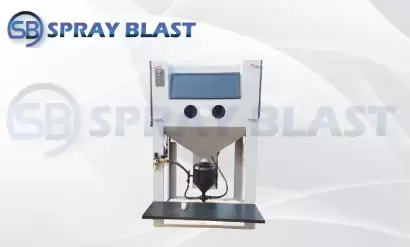

Sand blasting cabinet is another type of sand blasting machine that has a cabinet and is a closed form of the machine. In the closed section, pollutants are blasted and sand blasting sand is recycled. Cleaning, recycling, and collecting dust products are among the additional responsibilities. With this sand blasting cabinet system, there is a glass through which the operator may see the process, as well as an opening gate through which the blasting substance or blasting surface is inserted within the Sandblasting cabinet.
A sand blasting cabinet, also known as a blast cabinet or sand blasting enclosure, is a piece of equipment used for sand blasting small to medium-sized objects. It is an enclosed cabinet that contains the blasting process and helps to control the dispersion of abrasive media and dust.
A sand blasting cabinet typically consists of a chamber made of metal or plastic, a front door or window, a Sand blasting Nozzle, a dust collector or vacuum system, and a lighting system. The blasting nozzle is connected to an air compressor, which propels the abrasive material out of the sand blasting nozzle and onto the object being blasted. The dust collector or vacuum system helps to remove the abrasive material and dust generated during the blasting process, keeping the work area clean and safe.
Sand blasting cabinets are commonly used for a variety of applications, including surface preparation, cleaning, and etching. They are often used in industries such as automotive, aerospace, and manufacturing, as well as in smaller-scale applications such as jewelry making, art restoration, and hobbyist projects.
Some common features of sand blasting cabinets include adjustable blasting pressure, a variety of nozzle sizes and shapes, and a range of abrasive materials to choose from. They may also come with additional features such as an air blow-off nozzle, media recovery systems, and specialized lighting for improved visibility.
Sand blasting Cabinet Price in India is determined by the size of the workpiece. If the workpiece is tiny, a small sand blasting cabinet is required. If the work-piece size is huge, the sand blasting cabinet will be large as well, so the cost will be determined by the size of the blast cabinet. Manufacturers of sand blasting cabinets might minimize prices based on component size.
There are three types of sand blasting cabinets follows:
A suction blasting cabinet, also known as a suction blast cabinet or a siphon blast cabinet, is a type of sand blasting cabinet that uses a suction gun to propel abrasive material onto the object being blasted. A suction sand blasting cabinet is designed to be used with smaller abrasive materials, such as glass beads, aluminum oxide, or plastic media.
A pressure blasting cabinet, also known as a direct pressure blast cabinet or a pressure pot blast cabinet, is a type of sandblasting cabinet that uses a pressurized vessel to propel abrasive material onto the object being blasted. pressure sand blasting cabinet is designed to be used with larger abrasive materials, such as steel grit or shot.
A wet blasting cabinet, also known as a vapor blasting cabinet, slurry blasting cabinet, or liquid abrasive blasting cabinet, is a type of sandblasting cabinet that uses a mixture of abrasive material and water to clean or prepare surfaces. A wet sand blasting cabinet is a gentler form of blasting that is particularly effective for removing surface contaminants without causing damage to the object being blasted.
Compare Sand Blasting Cabinet with other models in Sand Blasting.
| Specification | Sand Blasting Stencil | This model Sand Blasting Cabinet | Abrasive Blasting Machine |
|---|---|---|---|
| Product | Sand blasting Stencil | — | Abrasive Blasting Machine |
| Material | Polyester Liner/Rubber Adhesive and Backing | Mild Steel | Mild Steel |
| Material Size | 300, 350, 400, 500, 550, 600um, 1.0mm | — | — |
| Glue Thickness | 40um | — | — |
| Length(m) | 10m-20m | — | — |
| Width(cm) | 122cm, 120cm, 60cm, 30cm | — | — |
| Adhesive | ~ 35g/m² | — | — |
| Release Liner | ~ 140g/m² | — | — |
| Brand | Spray Blast | Spray Blast | Spray Blast |
| Color | Grey, Transparent Pink, Light Green | As per client requirement | As per client requirement |
| Country | India | India | India |
| Packaging Type | Bubble Wrapping | — | — |
| Transport Type | Land/Sea/Air Transport | — | — |
| Price Range | Rs 1000-1500/Roll | Rs 1.50Lakh - 3.50Lakh | Rs 4-8 Lakh |
| Grade | — | Automatic, Manual | — |
| Machine Type | — | Pressure, Suction, Wet blasting cabinet | — |
| Cleaning Rate | — | 4 - 20 Sq. Mtr./Hr. | — |
| Storage Capacity | — | 28 - 42 Lit. | — |
| Req. Compressed air (80 psi) | — | 17 - 55 CFM | — |
| Nozzle | — | Tungsten / Boron Carbide | — |
| Nozzle Size | — | 5 - 12 mm | — |
| Power Consumption | — | 0.5 hp to 1.5 hp | — |
| Delivery Time | — | 15-20 Days | 1-2 Weeks |
| Production Capacity | — | 3-4 | 4 Machine |
| Packaging Details | — | Polly Pack With Bubble Packing | Polly Pack With Bubble Packing |
| Dust Collector | — | Fabric Bag / Pleated Filter Type | — |
| Delivery Type | — | Road / Ship / Plane | Ship/Air/Land |
| Machine Grade | — | — | Manual and Automatic |
| Frequency | — | — | 50Hz |
| Voltage | — | — | 440V |
| Power | — | — | 12.5hp |
Typical applications for Sand Blasting Cabinet across industrial blasting, coating, and surface preparation work.
Sand Blasting Cabinet blasts parts that fit the grate and gloves.
EnquireClosed-cabinet blasting removes coatings without an open site.
EnquireLocal areas are profiled before coating.
EnquireOperators process batches with reclaiming abrasive.
EnquireLight blast removes burrs on machined parts.
EnquirePrecision parts are masked then blasted in the cabinet.
EnquireR&D parts are finished without a full blast room.
EnquirePumps, valves, and tools are cleaned before inspection.
