Water Wash Paint Booth

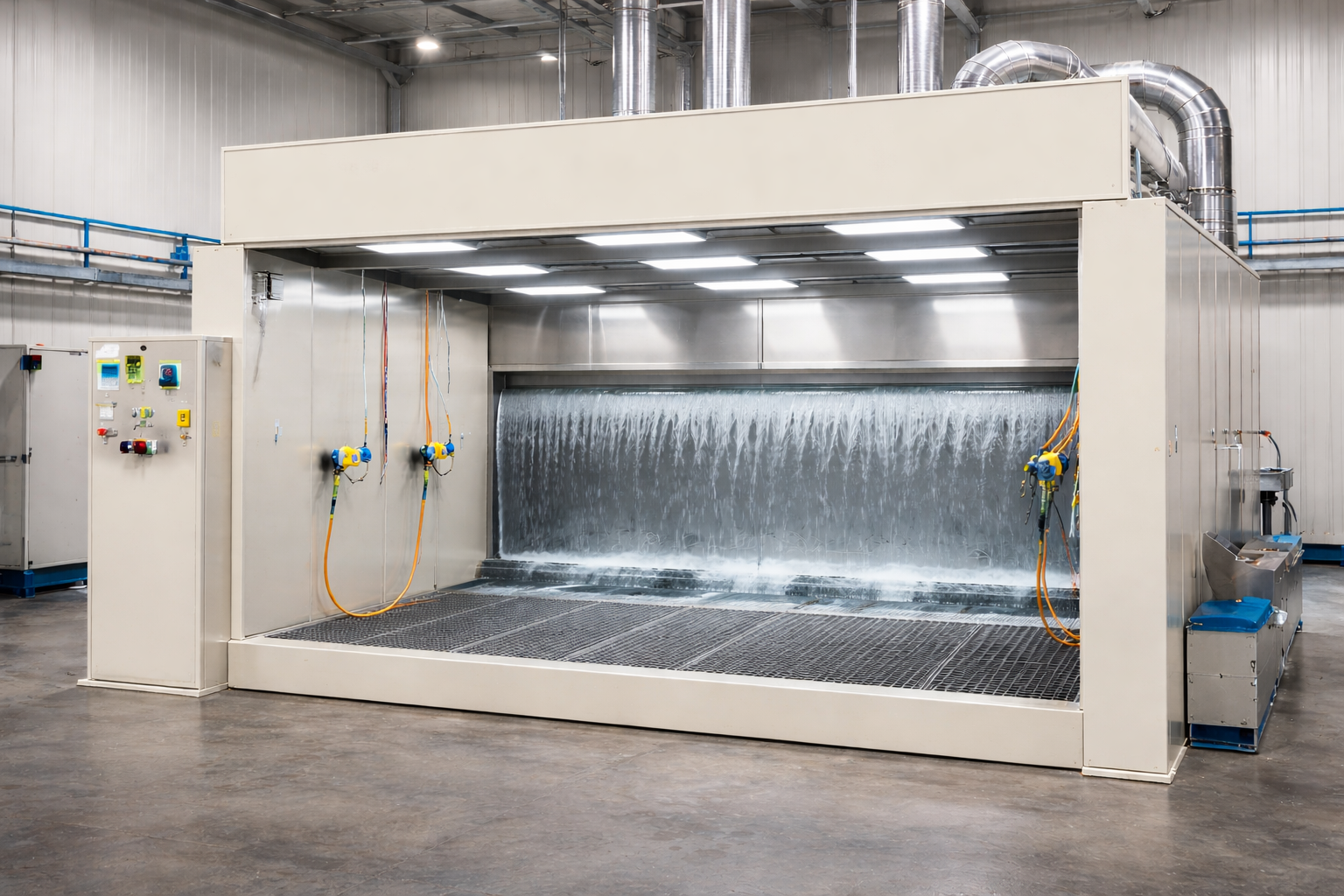

Introduction of Water Wash Paint Booth

The water wash paint booth is a modern coating technology designed for large-scale industrial painting facilities, offering an optimal working atmosphere for the application of liquid paint sprays. Thanks to the constant water curtain used in these booths, the equipment manages to extract and clean the toxic overspray of paint from the air before it gets released back into the shop and the environment. Our water wash technology provides the best possible continuous filter performance, which is considerably better than the traditional dry filters, minimizing any necessary downtime for filter replacements.

Built from durable materials such as heavy-gauge galvanized or optionally stainless steel, our water wash paint booths can withstand even the toughest conditions and will serve you well for many years. The benefits of the investment are evident from the beginning – lower operating expenses as a result of no filter replacements, easier hazardous waste disposal, and compliance with the strict standards of EPA and OSHA. By choosing the best liquid spray booth solution for your shop, you will be able to boost productivity, create a safe working environment for your employees, and provide the best quality of your product to your clients.

Technical Specifications of Water Wash Paint Booth

Our wash paint booths have been specially designed to provide optimum performance and reliability. The technical specifications for our range of wash paint booths are listed below in the table. Custom design solutions are also available.

The Working Principle: How Our Water Wash Paint Booth Operates

A​ water wash paint booth is specifically made to offer a secure, hygienic, and environmentally friendly setting for the large-scale finishing of liquid spray. The main job of such a booth is to swiftly grab and filter the paint overspray suspended in the air by means of an advanced water purification system. Not only does this method help in safeguarding the personnel and the surroundings, but it also guarantees a top-notch finish by preventing the new coatings from being spoiled by unwanted paint. The work operation is non-stop, robotic, and made for industrial performance.

• Generation of Controlled Airflow: A robust and spark-less blast fan positioned at the back end of the booth is the cause of a uniform, laminar air movement. This regulated oxygen stream moves from the face of the booth, after the object to be painted, and finally to the water curtain wall, in an orderly manner, throwing all paint overspray away from the operator and the item.
• Overspray Acquirement through Water Curtain: At the time of the overspray-laden air being drawn to the exhaust plenum, it is compelled to enter a streaming sheet of water all the time. This "water wall" or "water curtain" serves as the main filtration step. The very active water flow, sometimes resembling the air turbulence, results in the water effectively "scrubbing" the air, and most of the paint particles are held at the first contact.
• Particulate Scrubbing and Separating: The air first goes through a sequence of internal baffles and scrubbers behind the water curtain, where even more turbulence is created. This very energetic scrubbing is unavoidable in the final contact between the polluted air and water; the result is that all the remaining paint particles get mixed up into the water solution.
• Sludge Collection and Management: The paint particles, which are captured along with the water mixture, drop to the collection tank or sump at the bottom of the booth. In this place, separation of paint solids from the water takes place, thus forming the sludge. In case of a need for heightened efficiency, the addition of chemical agents (flocculants) to the water results in faster separation, provoking paint sludge to coagulate and be easily removed and discarded.
• Water Recirculation System: A big pump keeps the water, which has been filtered in the collection tank, on a continuous path from it to the header of the booth so that the water curtain is steady. Compared to non-recirculating designs, this closed-loop system remarkably lessens both water usage and operational expenses.
• Ultimate Filtration and Discharge of Clean Air: The air, which has been scrubbed before leaving the building, is made to flow through another portion of the eliminator plates or mist filters. These parts are chiefly built to trap any remaining water droplets so that only clean and moisture-free air is emitted to the atmosphere that satisfies or surpasses EPA and OSHA rules concerning particulate emissions.

Components of the Water Wash Paint Booth

Each component of our water wash paint booth is engineered for durability, efficiency, and compliance. The modular design allows for customization while ensuring robust performance in demanding industrial finishing environments.

Industry Applications: Engineering for Compliance, Reliability, and Precision

A water wash paint booth is a strategic capital investment for industries where finish quality, operational uptime, and environmental compliance are non-negotiable. Our systems are engineered to meet the rigorous demands of high-volume production, providing a reliable and precise finishing environment across critical manufacturing sectors.

Aerospace & Defense

When dealing with specifications that are mission-critical, the water wash paint booths we provide have no equals.

• Accuracy: Needed for coating applications, including mil-spec and CARC paint application, with evenness and no contamination possible. The water curtain provides a contaminant-free environment for preventing contamination of the aerospace parts.
• Compliance: Constructed in accordance with all the strict requirements set out by NESHAP and EPA concerning the release of hazardous air pollutants and VOC emissions, especially for those paints used as chromate-based primers.
• Reliability: Designed to work continuously for long hours in multiple stages of coating aerospace pieces. Filtration using the liquid makes it possible to continue operations without any stoppages in production because of filters.
• Cost: Justifiable when looking at safeguarding the costly materials being worked with.

Automotive OEM & Tier 1 Suppliers

In high-volume automotive manufacturing, productivity and Class-A finish excellence are key. Our wet paint booths are integral to effective coating lines.

• Accuracy: It provides the glossy finish required for the construction of automotive body panels. This technology guarantees that there will be no bounce-back overspray and dust entry, thus making it ideal for applying basecoat and clearcoat.
• Reliability: Built to run round-the-clock. Contrary to dry filter booths that need frequent and expensive media replacement, a wet paint booth enables constant overspray control, increasing car output.
• Regulatory Compliance: Efficiently handles the high paint usage of automated and hand-held spray equipment, ensuring strict adherence to international automotive environmental regulations concerning particulates and VOCs.
• Purchasing: A wise choice to reduce the total cost of ownership (TCO). The marked decrease in filter expenditure, labor, and disposal charges makes it easy to recoup the initial investment quickly.

Heavy Machinery & Agricultural Equipment

The makers of large equipment cannot have any less durable a coating process. Our water curtain booths were designed to withstand coating operations on an industrial scale.

• Reliability: The strong power of water scrubbing helps in trapping heavy primers and polyurethane topcoats used to coat agricultural and construction machinery, preventing clogging and ensuring a consistent flow of exhaust.
• Regulation: Can trap extremely large amounts of overspray that would be hard to control otherwise, allowing easy compliance with OSHA regulations concerning air quality in the workplace and the EPA's particulate emission guidelines, even while under heavy use.
• Precision: Provides an environment that allows for the application of durable coatings capable of withstanding harsh environmental conditions.
• Cost efficiency: An investment worth making for those with high rates of consumption of paint. Durable and with the capability to handle heavy overspray without clogging, eliminating the need to buy filter media for daily operations.

Woodworking & Furniture Manufacturing

When it comes to cabinetry, architectural millwork, and furniture of a high standard, the finish plays an important role in establishing its quality. This is where our liquid filtration booths come into play in ensuring that quality remains intact.

• Precision: Ensures a smooth glass-like finish free of contaminants and particles from lacquers, stains, and conversion varnish due to capturing of airborne overspray before landing on wet surfaces.
• Compliance: Extremely important when it comes to dealing with the high flammability of solvent wood finishes. The water curtain serves as a natural suppression mechanism for fires and helps the facility comply with the NFPA 33 guidelines.
• Reliability: Helps maintain the productivity of finishing operations as it ensures constant airflow without disrupting the operation due to filter blockages.
• Procurement: In essence, this purchase pays off in terms of not only ensuring quality but also safety and cost-efficiency as well by reducing the risk of fires and unnecessary expenses on filters.

Buyer Recommendation

Buyer's Guide: Procuring Your Water Wash Paint Booth

Investing in a water wash paint booth is a significant decision that demands thorough evaluation to get the best performance, compliance, and value over time. These tips will help you have a smooth and sure procurement process.

• Get a Full Technical Brief and a Price Quote: Before issuance of the Purchase Order, talk to our engineering team to define your operational requirements in detail. Your quotation should be detailed, including booth dimensions, materials used for construction (e.g., galvanized vs. stainless steel), airflow (CFM), pump specifications, and any custom features. This way, the wet spray booth will be ideally suited to your workpiece size, production volume, and coating type.
• Understand Minimum Order Quantity (MOQ) and Lead Times: Generally, our MOQ is one (1) unit, as every water wash paint booth is individually designed. If, for instance, you are working on larger projects or standardizing a facility rollout, provide details of your volume requirements to our sales engineers. Confirm production and delivery lead times early in the buying stage so you can stick to your project timeline.
• Make Sure About Global Export and Logistics Support: As exporters experienced in the global supply chain, we offer full logistics services. Enquire about our capacity to ship abroad along with the provision for proper packaging (ISPM 15-compliant), freight forwarding services, and management of all necessary export documentation (such as Certificate of Origin and Commercial Invoice).
• Certify Compliance: Ensure that the water curtain booth meets local regulations for safety and the environment, such as OSHA, NFPA 33, and CE compliance. We design our systems to international standards, thus ensuring a safe operating environment. Ask for the compliance certificates for your documentation.
• Request Bulk Supply for Large-Scale Operations: You can take advantage of our scalable and bulk supply programs if you are an OEM, contract finisher, or a corporation with multiple sites. Plan your long-term use of us to check out volume discounts, delivery schedules in separate phases, and shared booth designs for uniform performance across all your locations.
• Check After-Sales Service and Spare Parts Availability: The liquid filtration booth is a significant investment, so see warranty details and the provision of spare parts such as water pumps, circulation nozzles, filters, and control panel elements. Do not forget to inquire about preventive maintenance plans that help to maximize uptime and operational life.
• Consider Customization and Integration Capabilities: Every finishing line is different. Therefore, make sure the vendor is capable of customizing the overspray capture booth to work in harmony with your current infrastructure, including conveyors, curing ovens, and automated application systems. For integration success, choose a supplier who has an in-house engineering team.

Product Comparison

Product Comparison: Water Wash Paint Booth vs. Alternatives

The selection of an appropriate finishing process is one that should be viewed with seriousness in terms of cost implications, efficiency, and the quality of the finishes produced. Water indeed washes paint booths have many benefits, especially for volume processes, but they should be compared with other finishing techniques.
