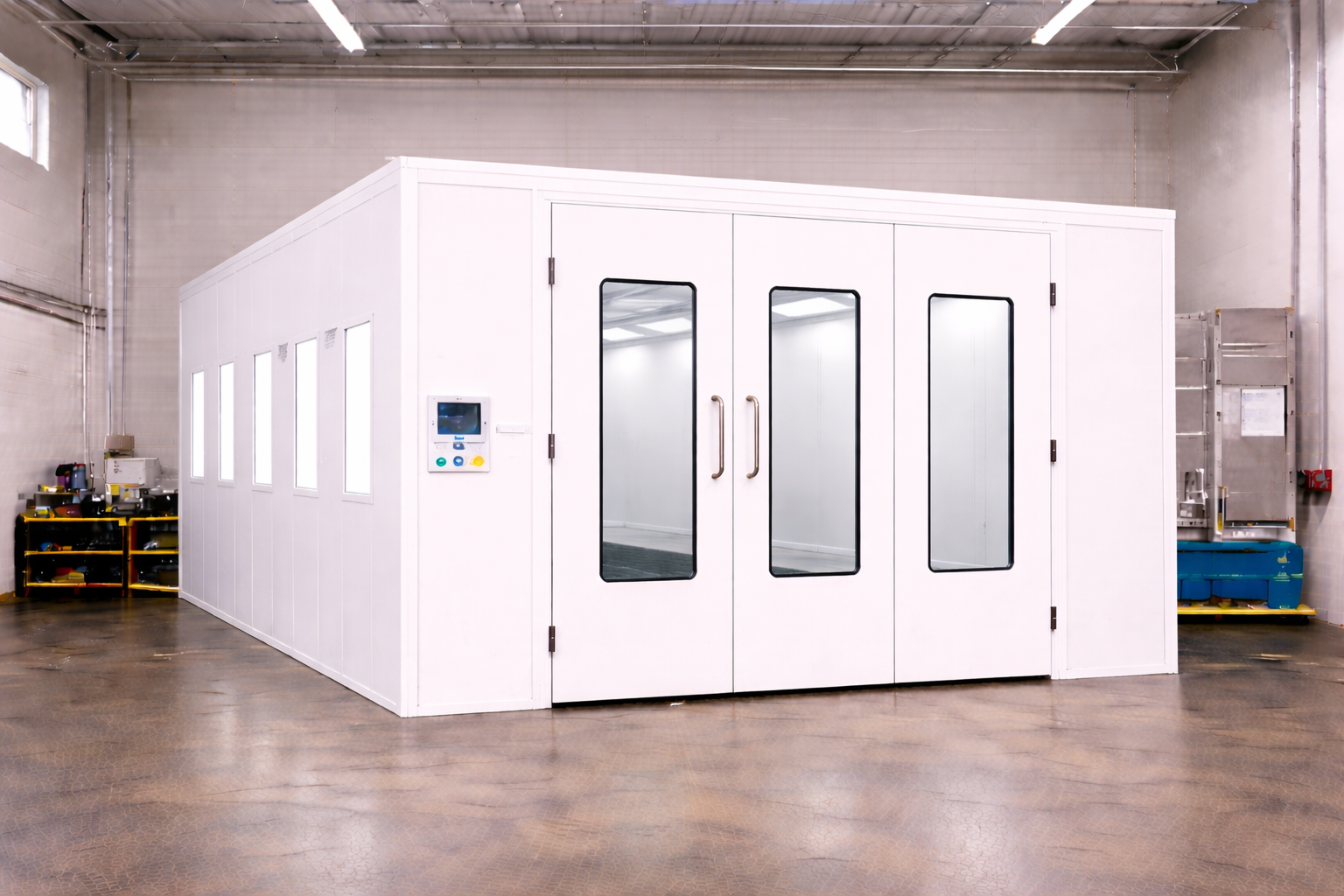

Enclosed Paint Booth

Introduction of High-Performance Enclosed Paint Booth

Get flawless, factory-quality finishes with the use of our enclosed paint booth for industrial spraying that creates a controlled and sealed environment to ensure perfect spraying operations. The system operates as a highly efficient dust-free finishing booth by isolating any particles and other contaminants, as well as containing any overspray, and thus maintaining high levels of quality on each part sprayed within it. Our value proposition involves the carefully engineered airflows and filtration that provide the best possible conditions for perfect adhesion and coating of your parts.

Our enclosed industrial paint booth uses high-quality materials that guarantee durability and reliable performance in rigorous production settings. These features mean better efficiency and increased profits as a result of reduced material wastage and higher output. This means that you get better quality and improved compliance at lower costs. It is worth noting that you will not only achieve better results but also improve your safety and that of your employees in terms of health risks caused by contaminants.

Technical Specifications of Enclosed Paint Booth

The paint booths offered by us have been designed to ensure high performance and longevity, along with being safe. This document contains the specifications of the booths we offer, along with the ability to customize them to suit individual requirements.

Working Principle of Enclosed Paint Booth

An enclosed paint booth works under the concept of providing a very controlled atmosphere. This setup ensures that any foreign particles do not enter, and at the same time takes care of any overspray. In other words, a perfect surface is ensured every time.

• Clean Air Inlet & Filtration: The process starts with clean air being brought into the system through a separate inlet fan. The incoming air is then passed through several stages of pre-filters that remove large particulates, followed by passing the air into the cab through ceiling filters (plenum). This process forms the basis of a dust-free painting environment.
• Cabin Pressurization and Laminar Flow: This air has been purified in order to establish positive pressure in the cabin area enclosed in the painting booth. In the case of a downdraft booth, such air will have a laminar flow pattern since it will move from the ceiling downwards and towards the workpiece.
• Controlled Spray Method: While the paint application takes place, the airflow immediately forces any paint overspray and Volatile Organic Compounds to drop down below the painter and the freshly painted part. This ensures that no overspray can be deposited back on the part.
• Paint Overspray Filters and Exhaust System: This is done via the use of an axial flow fan and exhaust filter system. It will collect solid paint particles from the air using several stages. In general, the filters are located on the floor or pit area. They can remove solid paint particles before releasing the air back into the atmosphere.
• Curing/Bake Cycle Combination: Once applied, many industrial closed booths have the option of moving into a cure cycle. The dampers redirect air flow into recirculation mode, while heat is introduced through an air make-up unit, which causes the internal air temperature to be brought up to exact temperatures. This greatly enhances the speed of the curing process and makes for a more durable paint film.

Key Components of Our Enclosed Paint Booth

Every piece of our enclosed paint booth is made to last, to perform, and to be safe. This thorough explanation demonstrates the premium quality construction that ensures a perfectly clean finishing environment.

Industry Application

Industry Application: Engineering for Compliance, Reliability, and Precision

The enclosed paint booth is more than just an area of work; it is an investment in capital assets that are designed to address the very basic needs of any industry finishing application. From the perspective of those tasked with purchasing and designing processes, the decision to purchase a high-end paint booth comes from the necessity of process control, compliance, and consistency.

Aerospace & Defense

In the business world of no room for error, our fully enclosed paint booths offer the crucial environment necessary for coating applications that require special, top-quality paint.

• Rework-Free: The cost of aerospace parts can make rework very difficult to afford. By controlling the atmosphere within a paint booth, one can control the quality and thickness of mil spec coatings, CARC coatings, or radar-absorbing paints applied. This ensures flawlessness and prevents any need for expensive rework on irreplaceable components.
• Foreign Object Debris-Free: Our paint booths have been designed to allow for full compliance with regulations such as NADCAP and AS9100, among others. As we create a closed and dust-free environment, there will be no FOD in your coatings.

Automotive OEM & Tier 1 Suppliers

Whereas mass production is involved, consistency becomes an important factor when it comes to the production of a Class-A finish. Our pressurized spray booths are tailor-made to meet the requirements of the automobile production industry.

• Performance and Efficiency: We cannot afford any downtime under any circumstances. This is why our spray booths have been manufactured using premium industrial materials. The ventilation and filtration features offered by our spray booth system create positive pressure inside the booth to keep out any contaminating particles and reduce sanding work.
• Regulations and Safety: We construct our booths in accordance with or even exceeding OSHA and NFPA 33 guidelines to ensure worker safety and prevent fires. With our filtration technology, we help facilities comply with EPA standards for volatile organic compounds.

Heavy Machinery, Agriculture & Industrial Equipment

The paints that are applied to the heavy machinery become the first defense of the machine against corrosion, abrasion, and chemicals.

• Return On Investment: The return on investment in the purchase of our booth is realized in the longevity of your finished product. The ability to create an ideal environment results in optimal paint adhesion and uniform coverage of any part, which results in improved corrosion protection and fewer warranty claims.
• Reliability & Capacity: Our booths have been engineered to handle the large and heavy weldments or parts. We will consistently deliver quality products despite the outside conditions of your shop.

Architectural Millwork & High-End Cabinetry

The quality of the finish itself is the product in the fine finishing market. An air-sealed paint booth is required to be able to create the perfect, defect-free surface that brings in the premium pricing.

Accuracy & Quality Control: A single dust particle could destroy a highly polished finish. The innovative approach we have taken in our design of the paint booth creates an environment in which there are absolutely no dust particles present in the air stream that can affect the finish process.
Material Flow & Process Control: The climate control within the painting booth creates a capacity to control humidity and temperature levels. This is essential in creating optimal conditions for the drying process of the lacquer, conversion varnish, and water-based coatings.

Buyer Recommendation

Buyer's Guide: Procuring Your Enclosed Paint Booth

Technical​‍​‌‍​‍‌​‍​‌‍​‍‌ specifications, operating costs, and suppliers' reliability are just some of the aspects to be considered before making the right capital investment decision in an enclosed paint booth. Follow our tips to help you in your purchasing and make sure you buy a system that provides outstanding-quality results, constant performance, and top-notch ROI with very little downtime.

1. Set out your productive capacity and the sizes of your items: Before seeking a quotation, it is advisable to specify the maximum dimensions (length, width, height) and weight of your components. Besides that, you can also make your daily or weekly production capacity known. This information is quite important for us to be able to suggest to you the suitably-sized enclosed paint booth and to talk about MOQs - Minimum Order Quantities, which are one unit in the case of custom projects but with scalable pricing in the case of multi-unit installations that could be planned together.
2. Make sure your potential solution meets the standards and has the necessary certifications: It is a must to always focus on safety and worry about the environment by making sure any booth you choose complies with the minimum local and international requirements (e.g., OSHA, NFPA 33, EPA 6H, CE marking). As a reputable exporter, we furnish you with comprehensive documentation of our adherence to such standards - something very much appreciated by procurement teams and facility managers as a major confidence factor.
3. Get details on possible customization and how you can integrate the system with other equipment. It is quite possible that a regular booth will not be suitable for your production line. Feel free to ask for the options for customization, such as conveyor pass-throughs, special lighting, as well as robotic applicators and curing ovens integration. We are experts in tailoring our pressurized spray booth systems for an effortless match to your current production line.
4. Analyze your Total Cost of Ownership (TCO) carefully: Do not just focus on the initial price. Besides the purchase costs, it is recommended to ask for information on electricity consumption (particularly for a climate-controlled paint booth), the cost of filter replacement over time, as well as the usual maintenance requirements. In fact, a lower initial price might be totally offset by higher running costs. Our offerings have been engineered to be quite energy efficient and feature components that are not only robust but also capable of significantly reducing your TCO.
5. Make sure you have a partner who can provide you with worldwide shipping and export support. For international buyers, it is better to buy from a supplier with experience in global logistics. We are quite experienced exporters of industrial finishing equipment and experts in handling freight, customs documentation (Incoterms), and secure packaging so that your enclosed paint booth reaches you safely and may be on schedule, anywhere in the world.
6. Get drawings and offer advice: A good producer will send you not only detailed CAD drawings but also will give you information about the requirements in terms of utility that must be respected (electrical, compressed air), and the installation plan can also be discussed. This joint work will avert huge mistakes and guarantee your facility will work with your new booth.
7. Check what policy is concerning after-sales service and availability of spare parts: Downtime is not an option. So, it will be very important to check with the supplier what warranty terms are, how fast they can respond to service requests, and most importantly, what their policy is regarding spare parts availability. We have fully stocked warehouses of critical components like filters, motors, and control panel parts to keep our global clients running at maximum uptime.
8. Talk about Supply of Bulk and Distributors: For outfitting a large facility or for distributors, we structure bulk supply agreements. They offer significant price advantages, production priorities, and dedicated account management for multiple sealed paint booth units. Contact our sales engineering team to discuss your volume ​‍​‌‍​‍‌​‍​‌‍​‍‌requirements.

Product Comparison: Enclosed Paint Booth vs. Alternative Finishing Solutions

The choice of the most effective finish environment is a vital aspect that affects quality, productivity, and compliance with regulatory requirements. There are different environments available, but only an enclosed paint booth can offer excellent benefits for industrial applications. Below is a comparison between our pressurized sealed paint booths and others available on the market.
