Open Face Paint Booth

Introduction of One Face Paint Booth

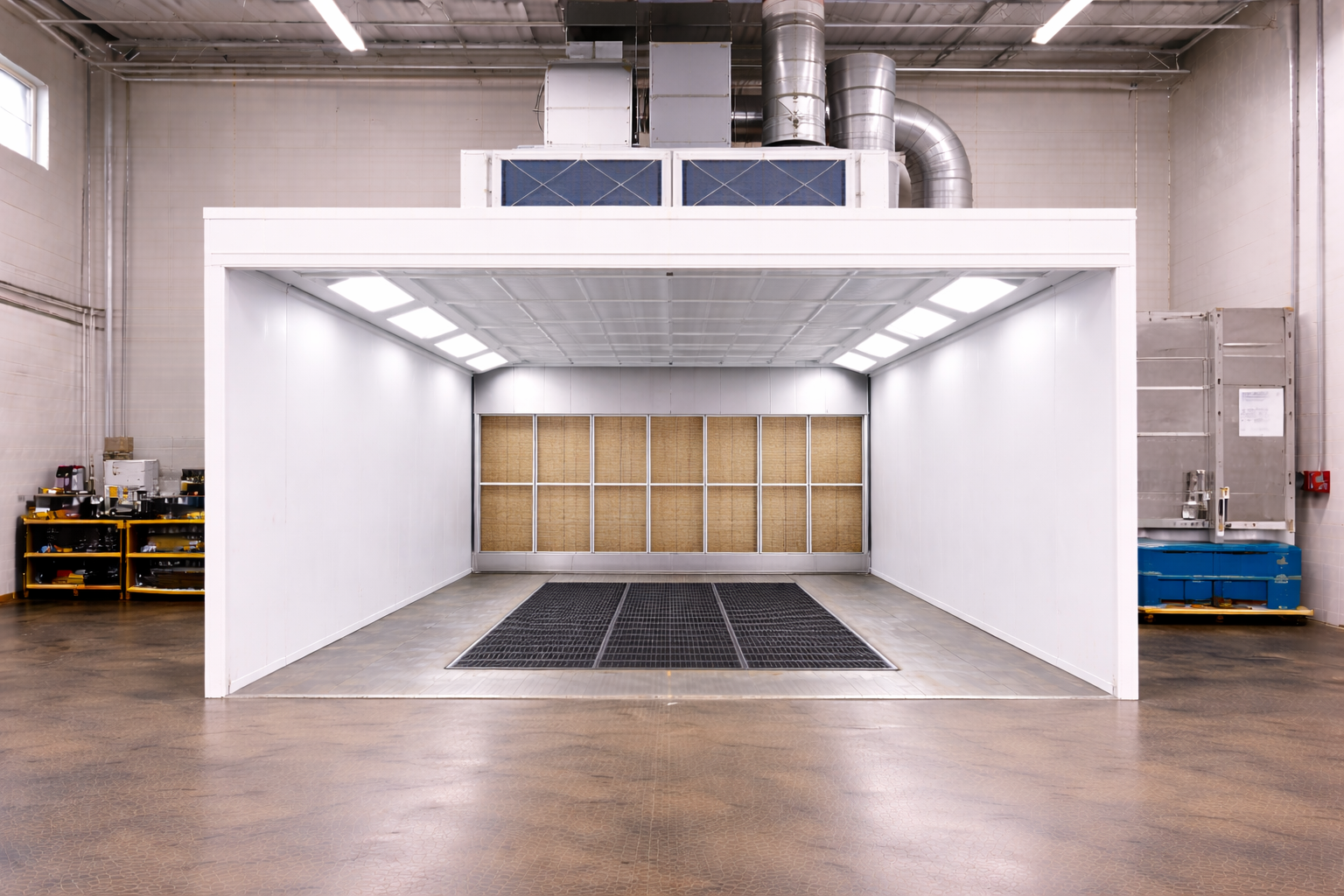

The open face paint booth is a safe, clean, and controlled environment for industrial finishing projects where a fully enclosed booth is not required. Designed for finishing small to medium-sized parts, our open front spray booth is the best solution for any workshop or production area that requires efficiency and space-saving design. Each of the open-front spray booths is built with heavy-gauge galvanized steel panels that are strong and rugged enough for any industrial finishing application. The rugged design provides a safe work environment where paint overspray is encapsulated. It is a must-have for any professional finishing environment.

The performance of the open front spray booth is based on effective air filtration and powerful exhaust systems that not only meet but also exceed safety and environmental regulations, including NFPA 33. Effective filtration of airborne dust particles and blowing fumes away from the work area enhances worker safety and helps with compliance with these standards. As a result, you get the best value for your investment: quality products with a clean finish area, increased production with a clean work environment, and a fast payback on your investment. As a bench booth for small detailed work or an industrial paint booth for finishing larger workpieces, this open front spray booth provides consistent quality results with an improvement in your work process.

Technical Specifications of One Face Paint Booth

Our open face paint booth models are designed for performance, durability, and safety/che compliance. The table below highlights the key technical specifications for our standard range, from small bench units to larger industrial booths. Our products are made from high-quality materials to ensure reliable operation in harsh finishing applications.

Note: Custom dimensions and configurations for your specific open-face paint booth requirements are available upon request. All models are designed for export and can be configured for international power standards.

Working Principle of Open Face Paint Booth

The​‍​‌‍​‍‌​‍​‌‍​‍‌ open-face paint booths use a principle of controlled airflow and particulate filtration to a very high degree of effectiveness. They are designed to generate a safe, clean atmosphere for the operators and simultaneously produce high-quality finishes on industrial components. The process is logical and well-planned for continuous, dependable performance.

• Negative Pressure Airflow: The system uses a robust, tube-axial exhaust fan that is usually installed in the rear exhaust plenum of the booth in order to generate a negative pressure atmosphere. This mechanism constantly draws in clean, outdoor air from the shop into the booth through its open front. The result is a predictable, laminar airflow pattern that travels horizontally from the operator, across the coated part, and towards the rear filter bank.
• Overspray Capture and Containment: Upon the coating application, the technician's immediate environment is instantly protected by the controlled airflow that captures airborne paint overspray, solvents, and volatile organic compounds (VOCs). The airflow stream functions as a protective barrier by removing these contaminants from the operator's breathing zone and, at the same time, preventing their re-deposition on the freshly painted surface or their release into the facility at large.
• High-Efficiency Particulate Filtration: The air containing the paint overspray is pulled through a multipurpose prefilter bank set up at the back of the open front spray booth. These paint arrestor filters of high efficiency have been made to capture and hold most of the wet paint and solid particulate matter from the air stream. This essential phase keeps the exhaust fan and the ductwork from becoming contaminated and, at the same time, confirms that the discharged air is in consonance with the environmental standards.
• Clean Air Exhaust: The air, after going through the filtration system, is sucked in by the exhaust axial flow fan and safely transported outside the building through the outlet duct, which complies with OSHA, NFPA, and EPA regulations. With this ongoing process, there is always fresh air for the operator, and the accumulation of dangerous fumes inside the workspace is prevented, which makes the open-face paint booth a very necessary instrument for finishing operations that are both safe and compliant with ​‍​‌‍​‍‌​‍​‌‍​‍‌regulations.

Key Components of Your Open Face Paint Booth

Our open face paint booth is built using high-quality industrial-grade parts, which are designed to be safe, durable, and reliable. Each of our parts has been precision-made to ensure seamless integration and performance for all your finishing requirements.

Industry Application of Open Face Paint Booth

An open face paint booth is not just a piece of equipment; it is a strategic asset that has been engineered to deliver efficiency, regulatory compliance, and finish quality in a variety of industrial sectors. Our booths are designed for use in facilities where precision, reliability, and safety are critical.

Streamlining Procurement & Integration

For procurement managers and integrators, our open face paint booth systems provide a streamlined acquisition and deployment solution. Our design is modular to allow for precise specification based upon available footprint space and part size, from a small bench-top paint booth, like the portable retractable paint booth for cellular manufacturing to larger configurations for sub-assembly operations. Standardized export-ready components and extensive technical documentation provide a facility planning solution with reduced installation complexity and a lower total cost of ownership with a faster return on investment.

Ensuring Regulatory & Safety Compliance

Compliance is non-negotiable. Our open front spray booth is engineered to meet or exceed stringent safety and environmental standards, including those set by OSHA and NFPA 33. The powerful exhaust system creates a safe work zone by effectively capturing and filtering hazardous fumes, volatile organic compounds (VOCs), and overspray particulate. This robust containment minimizes fire risks associated with flammable coatings and protects operators, ensuring your facility operates safely, avoids costly fines, and maintains its commitment to workforce health.

Maximizing Uptime with Industrial Reliability

In a production scenario, downtime in this equipment translates to direct costs for the business. Every open booth that we manufacture is engineered to optimize reliability and lifespan in your plant. Our booths are made from heavy-gauge G90 galvanized steel, with tubeaxial fans and TEFC motors to maximize service life in continuous duty cycles. Our booths are also designed with serviceability in mind, with filter plenums that are accessible for quick and tool-less filter replacement.

Achieving Finishing Precision & Quality Control

The finish that you achieve on your product is a direct result of your process control. Our open face paint booth creates a clean, controlled environment that allows for flawless finishes to be achieved. The design of our booths allows for a flow of air that pulls all unwanted particles away from your workpiece, eliminating issues such as dust nibs, runs, etc. Our booths are equipped with color-corrected lighting that illuminates the work area, allowing for precision coating applications, reducing quality issues to a minimum, particularly for small parts paint booth applications.

Key Industries Served:

• Metal​‍​‌‍​‍‌​‍​‌‍​‍‌ Fabrication & Machining: Using primers, protective coatings, and finishing paints for parts that are machine-produced, welded, and component structures.
• Woodworking & Cabinetry: Application of stains, sealers, and lacquers on cabinets, furniture, and millwork in a clean and dust-free environment.
• Aerospace & Defense Components: Coating with precision of hardware, avionics enclosures, and sub-assemblies required very strict quality control.
• Automotive Parts & Restoration: Coating aftermarket parts, made-to-order components, and vehicles with historic restorations that produce Class-A results.
• Plastics & Composites Finishing: Coating of molded plastics parts, fiberglass, and composite materials with a special finish.
• General Industrial Manufacturing: Flexible finishing for a large variety of manufactured products, including industrial machinery and electronic ​‍​‌‍​‍‌​‍​‌‍​‍‌enclosures.

Buyer Recommendation

Procuring Your Open Face Paint Booth: Key Recommendations

For a smooth procurement process and achieving the best possible results, industrial buyers should consider the following factors when deciding to buy an open-face paint booth.

• Minimum Order Quantity (MOQ) and Scalability: Our Minimum Order Quantity for standard models is just one. This covers all, from small job shops to large factories. Additionally, for full-facility installs or for distributors, we offer high-volume bulk orders with phased delivery to match your project schedule.
• Global Export & Logistics: Having been global exporters for many years, we know how to make international procurement a simple process. We take care of all logistics aspects for the open front spray booth line, offer compliant ISPM 15 crating, Certificates of Origin, and all the necessary customs paperwork for safe, reliable, and quick delivery to any port worldwide.
• Submit a Detailed Request for Quote (RFQ): To get the most precise and competitive offer, sending a request for quote along with detailed operational parameters is required. Main parameters are dimensions of the biggest part to cover, desired airflow (CFM), coatings used, and voltage requirements. By doing this, the quote for the small parts paint booth will be tailored to your particular needs.
• Verify Regulatory Compliance: One of the most important trust sources when buying a product is its compliance with safety standards. Our industrial open booth solutions are designed not only to comply with but also to exceed at times industry regulations, such as NFPA 33 and OSHA standards. We can support you with the documentation of full compliance for your internal safety and EHS approval processes.
• Analyze Total Cost of Ownership (TCO): The initial purchase price should not be the only factor of consideration. Besides the price, consider exhaust filter costs and life, the energy efficiency of the tubeaxial fan motor, and maintenance needs as well. Our booths use heavy-duty, industrial-grade components to keep operational costs low and enhance returns.
• Request Engineering Submittals: When making a large-scale capital investment, we offer detailed technical submittals if asked for. These documents contain detailed approval drawings, performance data, and electrical schematics to assist your engineering and maintenance teams in incorporating and approving the bench paint booth in your facility.
• Confirm After-Sales & Spare Parts Support: You should also check that your supplier will be capable of and willing to offer a proper after-sales service. We keep the stock of all spare and consumable parts, including filters and fan components, which have the highest turnover, ensuring the highest availability and reliability of your system in the long term.

Product Comparison: Open Face Paint Booth vs. Alternatives

The right equipment for finishing is important for efficiency, safety, and quality. The open face paint booth is a good solution for many industries, but it is also important to know how it compares to other options. The following table compares these options directly to help you make a smart investment.
