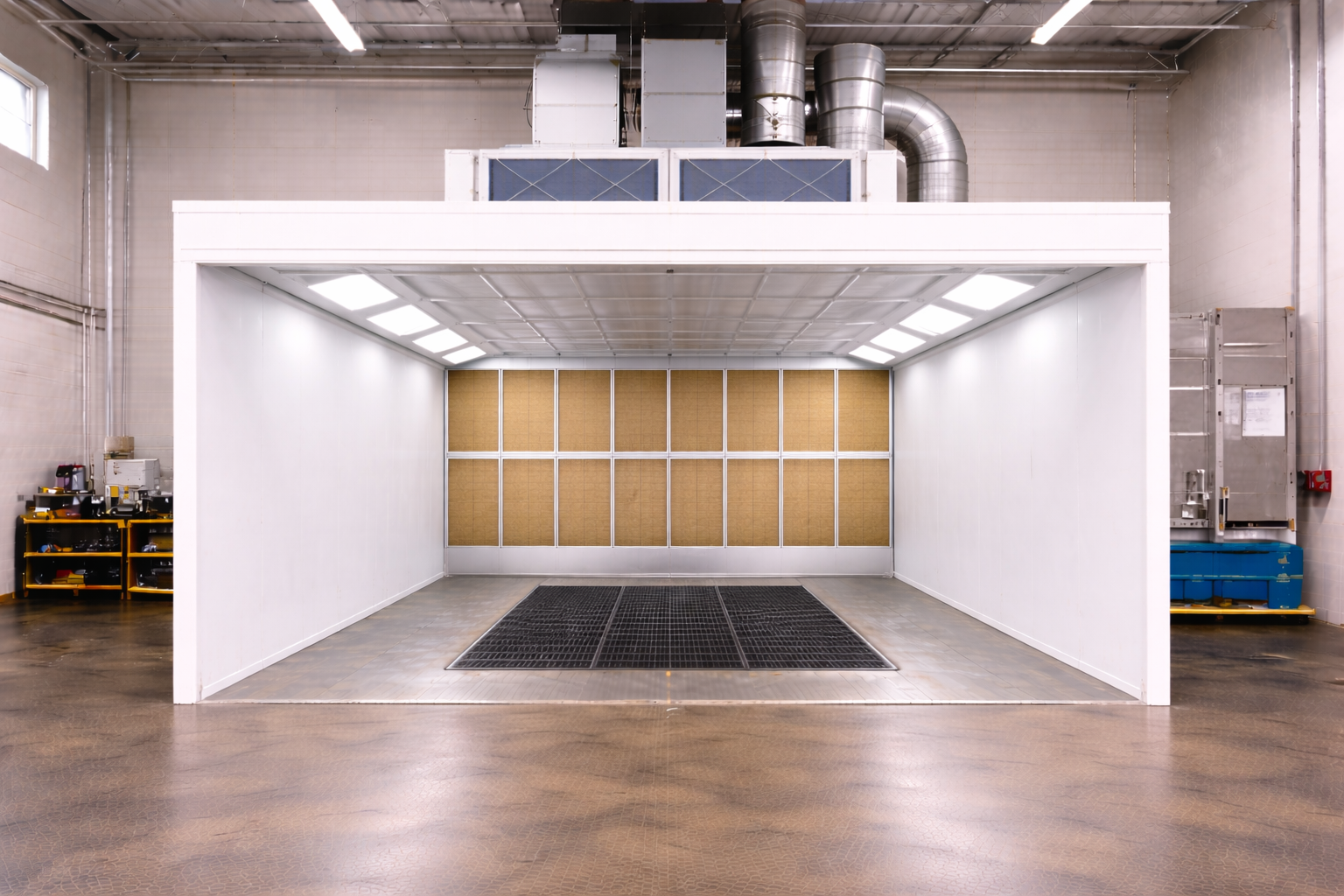

Dry Filter Paint Booth

Introduction of Dry Filter Paint Booth

The dry filter paint booth is engineered with the sole aim of providing excellent performance when used for industrial finishing. The dry filter paint booth incorporates the use of multi-stage disposable or cartridge filters that will make it easy to capture the airborne particulate. Our dry filter paint booths do not employ the use of a water wash system, hence making it more efficient and cost-effective. It is important to note that our booths save you from dealing with costly maintenance practices such as frequent water washing, wastewater treatment, and removal of accumulated sludge.

Our booths are made from high-quality and durable materials, which makes the industrial paint booth durable. It uses a very effective system that ensures air flows effectively throughout the system and hence provides the best finishing and minimizes rework. This is an excellent investment for anyone who desires to save costs on operations and minimize downtimes. There are numerous benefits of investing in one of our booths, including reduced costs and easier compliance with environmental laws. This is indeed an excellent purchase for your company.

Technical Specifications of Dry Filter Paint Booth

The following table provides the technical details of the designs of our dry filter paint booths. They are all built to perform efficiently, comply with regulations, and withstand wear and tear.

Working Principle of Dry Filter Paint Booth

Dry filter paint booth technology is based on a very efficient concept of air flow control and multistage particle filtration. The equipment has been designed in such a way that a contaminant-free environment is created for spray painting purposes while the overspray is collected. This system also makes sure that no harmful substances are released into the atmosphere.

The operational cycle is broken down into the following key stages:

• Air Intake System and Laminar Flow: The fresh air is drawn into the booth by a fan and filtered by an intake filter system that removes any dust particles from the air before it enters the booth. A constant airflow without turbulence will be generated, starting from the air intake to the booth, then moving either horizontally or vertically in relation to the coated material, and finally being guided to the exhaust plenum.
• Over-spray Capture System: It is the controlled airflow that traps the overspray as soon as it is sprayed on the coated material. It not only helps in directing the paint particles away from the operator and the material being coated, but also stops it from settling outside the booth area.
• Multi-Stage Dry Filtration: It is the exhaust filtration system of a dry filter paint booth that generally defines its operation. The overspray-laden air is drawn through a sequence of dry filters designed to an optimal specification before reaching the exhaust fan. Typically, it is several stages, with each stage comprising different disposable filters to maximize both the efficiency of capture and the lifespan of the filters.
• Efficient Particulate Capture: Dry filters' physical media vary from fiberglass and paper to more sophisticated multilayer cardboard or pleated cartridges used in a cartridge filter paint booth. Paint particles are trapped and held by them. These filters' ultimate design feature is that it increases the surface area and the holding capacity, which allows for the high-efficiency capture of even the most minute particles.
• Cleaned Air Exhaust: The air that has passed through the different phases of cleaning has had all dangerous solids from the paint removed. After being cleaned, the air is then released into the environment through the exhaust fan, which ensures that the company conforms to EPA 6H regulations and others.
• Simplified Maintenance Cycle: That is why this type of system is, above all, a low-maintenance booth. At the end of their useful life, as indicated by a manometer or pressure gauge, the filters are removed and replaced without difficulty and without the need for interruption of the production process. The simplicity of this will minimize downtime, and the total elimination of the complex maintenance, chemical sludge, and water treatment steps would only be achievable by the water wash booths, thus making the disposable filter spray booth an extraordinarily efficient industrial finishing solution.

Components

Components of the Dry Filter Paint Booth

The dry filter paint booth we provide has been made using only the finest materials, which have been incorporated to make the system more efficient and reliable for industrial painting operations.

Industry Application of Dry Filter Paint Booth

In modern industry painting, equipment acquisition is a decision that is determined by performance, compliance, and efficiency considerations. A dry filter paint booth is not only a place where work is performed, but rather a valuable resource created for the needs of high-risk industries. The design of such booths takes into account all necessary aspects of the painting process performance, ensuring a higher ROI.

Aerospace & Defense Manufacturing

In aerospace and defense industries, there is no scope for compromise regarding precision and compliance. The Mil-Spec requirements have to be complied with, as well as ensuring the security of assets that are mission-critical, irrespective of the tough environment.

• Precision Control: Our dry filter paint booth provides an airflow process that is clean and controlled through the use of a downdraft or crossdraft system. This allows us to apply sensitive coatings such as primers, CARC (chemical-resistant coatings), and stealth coatings.
• Regulatory Compliance: Our operations strictly comply with the NESHAP 6H standards and the Environmental Protection Agency. Our dry filter booth helps to achieve high efficiency for the capture of hazardous materials like chromates.
• Procurement & Reliability: By purchasing our compliant dry filter paint booth, you will be assured of avoiding costly penalties and shutdowns from government agencies.

Automotive & Transportation Finishing

The automotive industry requires that its processes produce Class-A finish results and are highly efficient in doing so.

• Perfect Finishes: With the multi-step filtration process, all overspray particles can be captured, thus no dust or other particles can come into contact with your base coat and clear coat. This will allow you to achieve the perfect mirror finish expected for vehicle parts.
• Efficiency: When working under high-volume conditions, even short stoppages can make a huge difference. Disposable filters in a dry filter paint booth require minimal maintenance and thus increase efficiency and profitability when compared with water wash booths.
• Compliance & Safety: Our booths are compliant with the requirements of the OSHA and NFPA 33, and thus provide a safe working environment.

Woodworking & Furniture Production

For high-quality cabinetry, architectural millwork, and furniture production, surface finish is the most important element that determines the worth of the product.

• High-Quality Surface Finish: Dry-filtration booths provide a clean environment needed for applying varnish, lacquer, and stain finishes free from dust nibs and other imperfections that can be created by using wet filters.
• Versatility & Affordability: With its affordable design, this booth can be a good choice for not only custom workshops but also large companies due to the capability of changing colors frequently, as filters are disposable.
• High Reliability: Its simplicity guarantees the reliability required to ensure that finishers don't have to struggle with difficult-to-maintain machines.

General Industrial & Metal Fabrication

Coatings are important for machinery manufacturers, structural steel, and metal manufacturers as a necessary protective measure against corrosion and wear that must be uniformly applied.

• Durable and Reliable Coating Application: Using a dry filter spray booth will ensure that the protective industrial coatings are applied evenly, whether it is as simple as enameled coatings or more complicated epoxides and polyurethanes. With consistent airflow, even the largest or most detailed weldments can be covered effectively.
• Minimal Maintenance Required: The strong yet simplistic mechanics of the dry filter booth make it well-suited for use in an industrial environment, as it minimizes the cost and complications associated with the cleaning out of sludge in water spray booths.
• Sensible Investment: The booth in question would be a flexible and sensible choice for many different parts as well as coating processes. Since it complies with general EPA/OSHA regulations, it would also be a good investment to make.

Buyer Recommendation

Procuring Your Dry Filter Paint Booth: A Buyer's Guide

Making​‍​‌‍​‍‌​‍​‌‍​‍‌ a capital equipment purchase is not a decision to be taken lightly. You should follow these steps to have a successful purchasing process and also be able to choose the best dry filter paint booth for your industrial finishing works.

• Make Your RFQ Specific: You will get a more exact and better-priced quote if you show clear details in your request for a quote (RFQ). Key information would be the size of your biggest piece, the internal booth dimensions you need (L x W x H), the airflow you want (CFM/CMH), the types of paint used, and production volume. This helps ensure the dry filtration booth offered fits your exact needs from day one.
• Consider Total Cost of Ownership (TCO): Don’t just think about the buying price first. One of the big benefits of a dry filter paint booth is its low running cost. We suggest working out the TCO, including the cost, and how often you will need to change the disposable filters, energy consumption of the fan/motor, and downtime for maintenance will be minimal. Our low-maintenance booths are designed to provide maximum uptime and profitability.
• Set Up a Good Filter Supply Chain: Should be able to run continuously if you have timely deliveries of replacement filters. It is advisable to have a hub call for your specific filter media (fiberglass, polyester, paper pleated). Developing a re-ordering routine will avoid production halts and will usually mean money saved. Our minimum order quantity for booths is one (1) unit, but the filter media can be supplied in bulk cartons.
• Check Export & Compliance Skills: If you are buying from abroad, the best thing is to find an exporter who knows what they are doing. We offer a full range of export services backed by quality packing for sea/air freight, reliable documents (Commercial Invoice, Packing List, Bill of Lading), and certificates of origin. Our booths satisfy worldwide criteria like CE and ISO 9001 standards; thus, you will have no problem clearing customs and installing your booth.
• Ask for the Entire Technical and Safety Documentation: You should always ask for all the technical documentation, as procurement is a trust cue. General arrangement (GA) drawings, electrical schematics, user manuals, and compliance certificates (e.g., NFPA 33, OSHA) are some of the things that we provide. Your engineering and safety department will have the time to check the equipment’s integrity and, at the same time, prepare for a site installation that is without any hiccups.
• Show Interest in Installation and Training Help: The performance and safety of your cartridge filter paint booth largely depend on doing the right installation. Check what support levels we have, which include very detailed installation manuals and remote video assistance, and also the possibility of on-site supervision by our certified technicians. Training for your operators is also available when you want your staff to be running the equipment efficiently and safely.
• Check Warranty and After-Sales Service: Manufacturers' warranties that are strong are definitely a sign of high-quality products. You should ask about the warranty period for the main parts of the booth, such as the structure, fan, and motor. You should also ensure that there is continuous technical support after sales and that you are clearly directed on how to order spare parts as well, to protect your long-term investment. ​‍​‌‍​‍‌​‍​‌‍​‍‌

Product Comparison

Product Comparison: Dry Filter Booths vs. Alternatives

The selection of a suitable painting booth is a major decision. It affects the cost of operation, maintenance, and quality of finish. The following table summarizes the differences between the dry filter painting booth and the two other types of booths.
