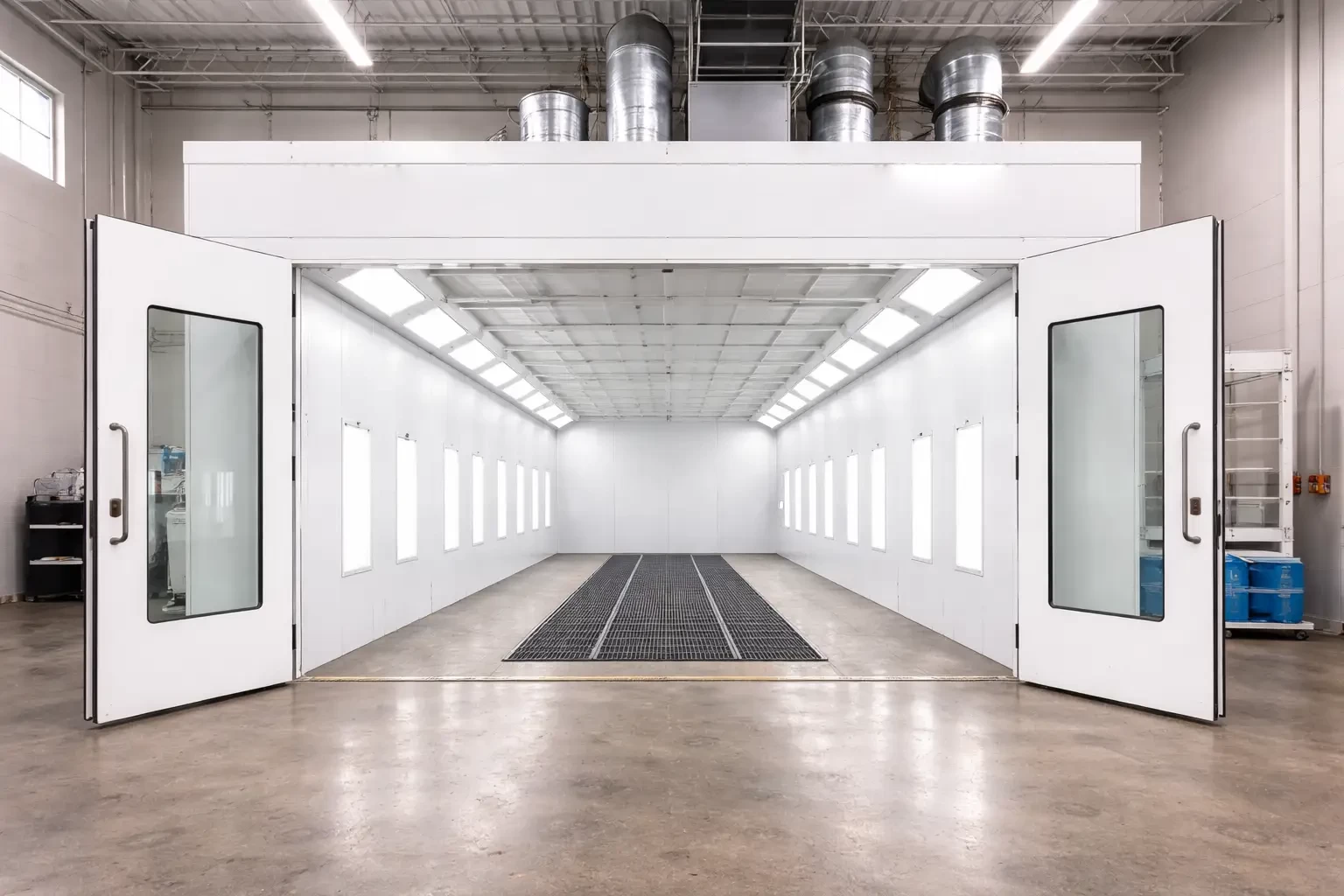

Truck And Large Vehicle Paint Booth

Introduction of Large Vehicle Paint Booth

The truck and large vehicle paint booth offers a controlled, clean environment without contamination, designed to deliver high-level performance and durability, which is essential for achieving an impeccable, factory-standard finish on commercial and industrial vehicles. Our booths can easily fit anything from semi-trucks and buses to construction equipment and even the largest components, giving you the same consistent result every time. Characterized by their carefully designed airflow, sophisticated multi-level filtration, and excellent lighting, these units are developed not only to reach but to surpass safety and environmental regulations in the industry. Such high standards in engineering make sure that your finishing operations will be clean, productive, and capable of producing a spectacular end product that will boost the image of your brand.

Buying a heavy-duty paint booth from our range is, in fact, a decision for improving the efficiency of your operations as well as your profitability in the long run. Made of top-quality galvanized steel of a high gauge and accompanied by parts of industrial strength, every large vehicle painting booth will remain operational, even in the most demanding industrial environment, thus minimizing downtime and leading to the least possible cost of ownership. Excellent performance then becomes real value for your company: fewer material losses, shorter cycle times, and a sharp reduction in expensive rework. Besides ensuring that the finishing environment is safe, dependable, and capable of high performance, our booths also give your workforce the chance to produce excellent quality, handle tight schedules, and increase throughput to the maximum, thus achieving a substantial return on your ​‍​‌‍​‍‌​‍​‌‍​‍‌investment.

Technical Specifications of Large Vehicle Paint Booth

Our truck & large vehicle paint booths are engineered for superior performance, durability, and compliance. The specifications below detail our standard models, which can be customized to meet specific operational requirements for any heavy-duty finishing application.

Working Principle of Paint Booth

The operating cycle of a truck & large vehicle paint booth is exactly a time-forward process planned to accomplish a perfect and durable surface layer that coexists with the safety of the operator and the environment. The main feature of each step is the adjustment to the size and nature of commercial vehicle painting, buses, and other heavy machinery finishing.

• Phase 1: Air Intake and Pressurization Powerful Air Makeup Unit (AMU) is equipped with the ability to bring a great amount of fresh air into the booth. Then the air is pushed through several levels of filter treatment, usually both pre-filters and high-efficiency ceiling filters, to be cleaned of around 99% of airborne impurities. Such a supply of clean and pressurized air forms a dust-free environment that can be maintained throughout the painting process. This is very necessary if a perfect and luxurious final surface is to be laid on the large body of the vehicle.
• Phase 2: Controlled Airflow During Spraying. At the moment of painting, purified air is made to move vertically (downdraft) or horizontally (crossdraft) across the vehicle. The controlled, laminar airflow is designed to surround the truck or bus and effectively carry all the paint overspray away from both the worker and the painted surface. Overspray is delivered to a filtered exhaust plenum at the floor or rear wall, which guarantees a safe breathing zone and increases the efficiency of paint transfer.
• Phase 3: Exhaust and VOC Abatement. The air with paint overspray is first drawn through the initial stage of exhaust filters, which are, for example, fiberglass or cardboard filters that can capture solid paint particles. This is very important because it keeps the exhaust fan and ductwork from getting dirty, as well as protects us from environmental pollution. Finally, the purified air is completely released into the atmosphere in a way that meets local and national environmental rules for VOCs.
• Phase 4: Accelerated Curing (Bake Cycle) When the paint layer is done, the paint booth for heavy vehicles makes the switch to the curing mode. Control dampers do this operation automatically by changing the airflow pattern to recirculation. The air is heated up by the AMU burner to the needed temperature (e.g., 140-180°F / 60-82°C) and then distributed evenly over the entire cabin. This method results in the chemical reaction that cross-links and hardens the paint layer. It can also help to lower the curing period from days to just a few minutes. Not least, this drastically increases the capacity of the shop, and commercial vehicles are restored to cases/incidents faster.
• Phase 5: Cool Down and Purge. After the baking process, this cycle happens, where the system cools down. The burner is turned off, and the dampers are reopened to allow the new supply of fresh air to sweep through the cabin and remove the last traces of the fumes. This ensures that the top layer of the vehicle has been done well and the booth is safe for the operator to get in and take the finished vehicle out.

Components of Your Truck & Large Vehicle Paint Booth

Every component of our heavy-duty paint booth has been designed for durability, performance, and safety. The purpose and quality of the components must be understood when investing in a finishing system intended for large-scale commercial and industrial vehicles. The table below illustrates the components required for a complete truck & large vehicle paint booth solution.

Industry Application of Large Vehicle Paint Booth

Our truck & large vehicle paint booths are not just enclosures; they are highly specialized environments specifically designed for the high-demand requirements of various high-stakes industries. Our paint booths are used for manufacturing, maintenance, and fleet management, providing you with increased efficiency, compliance, and a professional finish.

Streamlining Procurement & Maximizing ROI

For the procurement manager or the capital equipment buyer, the specification of a large vehicle spray booth represents a considerable investment. Our designs are engineered to provide the user with the benefits of a low Total Cost of Ownership (TCO) and a clear ROI.

• Optimized TCO: Energy-efficient VFD drives, high-efficiency filtration media, and heavy-gauge steel construction minimize long-term operating costs.
• Simplified Specification: Our modular design and flexibility in configuration make the specification of our truck paint booths easy. Our booths are designed to fit your facility footprint, eliminating costly facility modifications.
• Enhanced Throughput: Optimized design and accelerated curing cycles increase the throughput of our booths. This has a direct impact on your business, creating a rapid ROI.

Uncompromising Compliance & Safety

One of the key considerations in the process of industrial finishing is the intricacies of regulatory environments. Our booths are designed from the ground up with regulatory considerations in mind, so not only will you meet the mark, you'll surpass it.

• Regulatory Adherence: Our commercial vehicle paint booths are designed with key safety and environmental regulations in mind. These include NFPA 33, OSHA, and EPA 6H, providing your team with a safe environment in which to work.
• Emission Control: Our booths feature advanced emission control capabilities with multiple-stage filtration systems. This helps your facility meet the stringent requirements of local or national air quality regulations.
• Export-Ready Design: Our booths can be designed with export in mind, meeting international regulatory requirements such as CE or ATEX.

Industrial-Grade Reliability for Maximum Uptime

When it comes to high-demand, heavy-duty applications, downtime is not an option. This is why our booths have been specifically designed for continuous, uninterrupted performance in even the toughest and most extreme industrial conditions.

• Durable construction: Our heavy-duty paint booths are constructed from heavy-duty 18-gauge G90 galvanized steel. Our booths are also equipped with industrial-grade components, including direct-drive turbine fans and user-friendly PLC control panels.
• No downtime for maintenance: Our booths have been specifically designed for easy access to plenums, hardware, and control systems for the purpose of minimizing maintenance requirements for mission-critical fleets and equipment, including bus fleets, city vehicles, and construction equipment.

Precision Finishing for Brand Integrity

The finish on a commercial vehicle represents a direct reflection of your brand and overall quality. To achieve a flawless finish on your vehicle, our truck and large vehicle paint booth provide a clean and controlled environment for achieving high-standard results for your business.

• Contamination Control: With our high-end airflow technology, which can be either a superior downdraft or a semi-downdraft airflow design, our booth creates a clean and contained environment around the vehicle. This design pulls all overspray and airborne impurities away from the vehicle surface, greatly reducing the chance for defects and providing a flawless finish.
• Flawless Illumination: With our integrated lighting design, our booth offers shadowless lighting fixtures that are both ETL listed and color-corrected. This allows our technicians to have perfect lighting for matching colors and achieving a flawless finish on all surfaces.
• Repeatable Quality: With our precise control over temperature and humidity levels during both spray and bake cycles, our booth reduces variables for achieving consistent results. This allows you to achieve OEM-quality results on every vehicle, whether you have one or many trucks to finish.

Buyer Recommendation

Procurement Guide: Selecting Your Truck & Large Vehicle Paint Booth

Deciding​‍​‌‍​‍‌​‍​‌‍​‍‌ to make a capital investment in a truck and a large vehicle paint booth involves several factors, such as technical specifications, supplier capabilities, and even operational costs in the long run. This set of tips will help you during the purchase process so that you get a solution giving you the highest ROI and operational effectiveness.

• Focus on Customization and Dimensional Analysis: It is highly recommended that you prepare the maximum dimensions (L x W x H) of your largest vehicles before you send the Request for Quotation (RFQ). A pre-made booth may not serve you well. We are very good at custom-engineering solutions for a specific vehicle profile, even from the greatest ones, such as transit buses and heavy-duty construction equipment, to ensure that there is no unused space or energy.
• Check for Compliance and International Certifications: It is safe to operate and get approval from the regulator if the heavy-duty paint booth meets relevant standards such as NFPA 33, OSHA, and UL listings for North American clients, or CE/ATEX for European markets. Being seasoned exporters, we can deliver fully compliant systems along with the necessary documentation for different global markets.
• Spell Out MOQ and Scalable Supply Capabilities: A single (1) unit is the standard Minimum Order Quantity (MOQ) for us, which signifies the unique nature of this type of equipment. However, multi-facility operators, fleet maintenance centers, or OEMs may avail themselves of tiered pricing and project management for bulk orders of two or more commercial vehicle paint booths. Do not hesitate to ask about our capacity for phased rollouts.
• Work Closely with Our Global Export and Logistics Team: As a reliable global supplier, we also have great exporting oversized equipment experience. We advise loading of your bulky items be discussed really early in the process. Our team handles packing, air and sea freight, and customs clearance, and also gives you detailed paperwork to make sure your large vehicle spray booth gets there safely, on time, and anywhere in the world.
• Arrange for a Thorough Technical Consultation: How about continuation after dealing with a simple price quote? Book a no-obligation technical consultation with our engineers. This way, we will also learn about your particular workflow, desired throughput, finish quality requirements (e.g., Class A), and energy-saving needs so that we can help you find the perfect airflow, heating, and control systems.
• Assess Total Cost of Ownership (TCO): Don’t only judge the first price. Besides the initial purchase price, seek data on energy consumption (e.g., models with VFDs and heat recirculation systems), filter replacement intervals and costs, and expected maintenance schedules. Energy-efficient truck and large vehicle paint booths can give you an excellent return on investment due to the operational savings they make over time.
• Double Check Warranty, Spare Parts, and After-Sales Support: The supplier’s willingness to provide support post-installation is a very important element of trust in their service, that is,s if the manufacturer and supplier are separate entities. We offer a complete warranty on structure and components. Make sure that there is a global network supplying spare parts, and remote or on-site technical support is available so that any downtime can be ​‍​‌‍​‍‌​‍​‌‍​‍‌minimized.

Product Comparison: Choosing the Right Finishing Solution

Selecting the optimal finishing environment for oversized vehicles is a critical investment. While a purpose-built truck & large vehicle paint booth offer unparalleled performance and compliance, it's important to understand how it compares to other common alternatives in the market.
