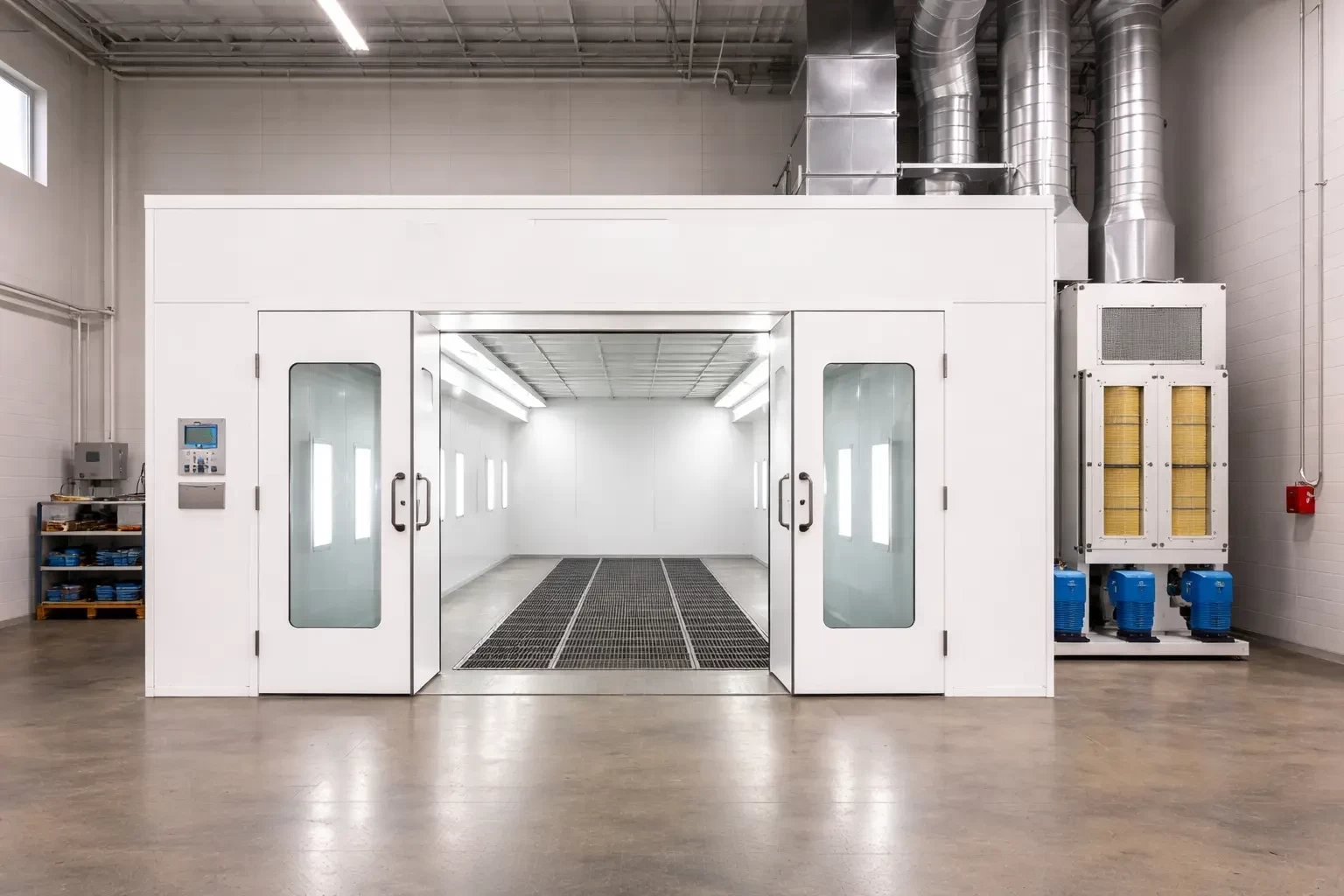

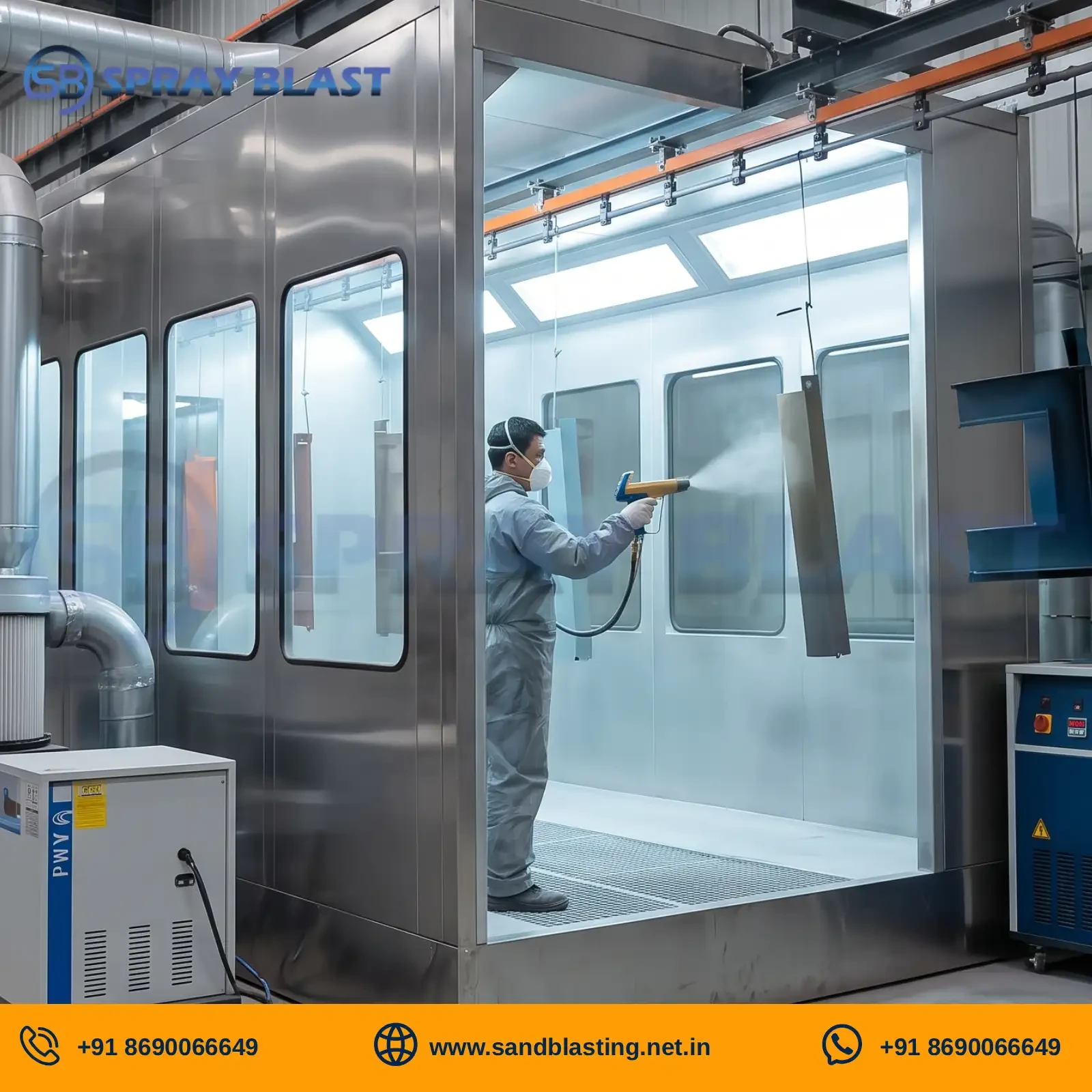

Introduction of the Downdraft Paint Booth
A downdraft paint booth is the ultimate in spray finishing technology, carefully designed to create a flawless, contaminant-free finish on high-value parts. By utilizing clean, filtered air blown vertically down from the ceiling, over the part, and then out through an outlet pit on the floor, a vertically directed airflow is created that is the cleanest possible paint finishing environment. The advanced downdraft paint booth ventilation system is designed to capture all airborne overspray and contaminants before they have a chance to settle on fresh finishes. For applications where finish quality is paramount, a high-end spray finishing industrial paint booth is the ultimate answer for achieving class-A finishes efficiently.
Our downdraft paint booth is not just a product, but a sound investment in a higher quality of operation and product. Built from heavy-gauge Mild steel, with high-performance motors and precision-balanced fans, our paint finishing booths are engineered to withstand the demands of a rigorous industrial environment with unparalleled durability and dependability. The performance advantages are immediately felt by our discerning buyers, providing a tangible return on investment in the form of a competitive edge through unmatched quality finishes.
Technical Specifications of Downdraft Paint Booth
Our downdraft paint booth systems have been carefully designed to ensure that you get optimal performance, safety, and finish. Below are all the specifications that define our standard configurations. However, we can design our systems to your specific requirements with customized sizes and features.
| Specification | Details |
|---|---|
| Model Series | DDB-PRO Series (e.g., DDB-1426, DDB-1630) |
| Airflow Principle | Vertical Downdraft Ventilation: Filtered air enters through the ceiling and is exhausted through a filtered floor pit for a contaminant-free environment. |
| Nominal Airflow | 12,000 - 24,000 CFM (Cubic Feet per Minute), designed to maintain an average velocity of 100-120 FPM. |
| Construction Material | 18-gauge, Mild steel panels. Pre-punched for easy nut-and-bolt assembly. Finished with a durable white powder-coated exterior and interior. |
| Standard Dimensions | Internal: From 14' W x 9' H x 24' D to 16' W x 12' H x 30' D External: Varies by model; custom sizes available upon request. |
| Filtration System | Intake: Full-ceiling, 99.5% efficient diffusion media filters. Exhaust: Multi-stage paint arrestor filters in floor pit (fiberglass, polyester). |
| Lighting System | 10-20 Class 1, Division 2, 4-tube T8 fluorescent light fixtures with color-corrected tubes for optimal visibility. |
| Control Panel | UL/ETL-listed industrial control panel with motor starters, airflow pressure gauges, bake/cure cycle controls, and emergency shutdown. |
| Power Requirements | Standard: 208V/230V/460V, 3-Phase, 60Hz. International and custom electrical configurations are available. |
| Exhaust Fan & Motor | High-efficiency, non-sparking tube-axial exhaust fan with a TEFC (Totally Enclosed, Fan-Cooled) 3-phase motor (5-15 HP depending on booth size). |
| Compatibility | Suitable for all industrial liquid coatings, including high-solids, waterborne, and solvent-based paints. Compatible with HVLP, electrostatic, and robotic systems. |
| Country of Origin | India |
How a Downdraft Paint Booth Works: The Principle of Vertical Airflow
The downdraft paint booth is based on the principle of vertical airflow. It has been designed with the objective of providing the cleanest possible finish for industrial or commercial applications. The advanced downdraft ventilation system draws air from the ceiling downwards vertically past the workpiece, and then exhausts it via the floor. This is the industry standard for a premium finish with zero contaminants.
The operational cycle is a precisely controlled process:
- Air Intake and Pressurization: Ambient air is drawn into the Air Makeup Unit. In the Air Makeup Unit, the air is pre-filtered to remove any dust and debris. It is also heated to the optimal temperature for the application of the coating. Pressurization is achieved by the Air Makeup Unit, which pumps the air into the cabin.
- Ceiling Plenum and Laminar Flow: The clean air is pushed into a full-ceiling plenum. The air is forced through a series of high-efficiency diffusion filters that cover the entire area of the ceiling. A non-turbulent, wall-to-wall column of air is achieved by the diffusion filters. This is referred to as laminar flow. The air is blown vertically downwards.
- Overspray and Fumes Capture: As the coating is applied by the technician, the column of air instantly surrounds the workpiece. The air picks up the paint overspray and fumes at the point of application. The air is blown straight down, away from the workpiece and the breathing zone, by the axial flow fan. The air is constantly moving downwards, which prevents the overspray from floating back onto the newly painted surface.
- Exhaust Filtration and Venting: The air carrying the paint is sucked down into a grated pit on the floor of the booth. Before exiting the booth, the air is forced through a multi-stage exhaust filter system. The filters capture the paint particulates, which are required by environmental regulations. This is the definitive paint booth for professionals.
Key Components of the Downdraft Paint Booth
All aspects of our downdraft paint booth are built for performance, longevity, and safety. Our downdraft paint booth is the sum of its quality parts working together for a flawless finish without any contaminants. The following is a detailed breakdown of the major components that make up this premium-quality spray booth.
| Component Name | Description | Function | Material | Dimensions (Typical) | Weight (Approx.) | Color |
|---|---|---|---|---|---|---|
| Cabin Enclosure Panels | Dual-skin, insulated wall and ceiling panels with tongue-and-groove assembly for a precision fit. | Creates a sealed, pressurized, and thermally controlled environment, preventing contamination and ensuring consistent results. | 18-gauge, Mild steel with high-density rockwool insulation. | 4' W x 10' H x 2" D per panel | 85 lbs per panel | Bright White (Interior), Royal Blue (Exterior) |
| Air Makeup Unit (AMU) | A direct-fired heating and air replacement system with integrated intake filtration and variable frequency drive (VFD) control. | Heats, filters, and delivers temperature-controlled fresh air to the booth's ceiling plenum, creating positive pressure. | G90 galvanized steel housing, stainless steel burner assembly, aluminum fan blades. | 12' L x 6' W x 7' H | 2,800 lbs | Galvanized Silver |
| Downdraft Exhaust Pit | A recessed concrete pit (or raised basement) beneath the booth floor, covered by reinforced steel grating. | Serves as the exhaust plenum, channeling overspray-laden air downwards and away from the workpiece into the exhaust filter bank. | Reinforced steel bar grating (booth component); concrete pit constructed by the client. | Grating: 3' x 5' sections; Pit: Matches booth footprint. | 175 lbs per grating section | Galvanized Silver |
| Ceiling Diffusion Media | A full-ceiling bank of high-efficiency, 99%+ particle-free intake filters. | Ensures uniform, shadow-free distribution of clean air in a laminar flow from ceiling to floor, which is critical for a downdraft paint booth. | Multi-layered, progressively dense synthetic media with adhesive tackifier. | Custom-fit rolls for ceiling plenum. | 10 lbs per roll | White |
| Exhaust Filter Bank | A multi-stage system of paint arrestor prefilter located in the exhaust pit or plenum. | Captures paint overspray and particulates before air is exhausted to the atmosphere, ensuring environmental compliance and protecting the fan. | High-capacity fiberglass or synthetic media panels (e.g., Andreae filters). | 20" x 20" x 2" panels | 1.5 lbs per panel | Green / White |
| UL-Listed Control Panel | A centralized digital control station for all booth operations, including safety interlocks and cycle management. | Manages spray, flash, and cure cycles, lighting, airflow, and temperature settings for precise and repeatable finishing processes. | NEMA 12 powder-coated steel enclosure with industrial-grade electronics. | 24" H x 20" W x 10" D | 80 lbs | Industrial Gray |
| Class 1, Div 2 Lighting | Vapor-proof, high-efficiency 4-tube LED light fixtures, strategically placed in ceiling and wall corners. | Provides bright, color-corrected (5000K) illumination for accurate color matching and quality inspection in a hazardous location. | Powder-coated steel housing with tempered glass lens and integrated gaskets. | 49" L x 13" W x 4" D | 30 lbs per fixture | White |
| Main Product Doors | Insulated, tri-fold main entry doors equipped with large, tempered glass observation windows and heavy-duty hinges. | Provides a wide, sealed opening for moving large products or vehicles in and out of the downdraft paint booth. | 18-gauge galvanized steel, 1/4" tempered safety glass, EPDM rubber seals. | 10' W x 9' H (standard set) | 750 lbs (per set) | Bright White (Interior), Royal Blue (Exterior) |
Industry Application of Downdraft Paint Booth
Investing in a capital asset such as a downdraft paint booth is a critical operation. It not only affects the efficiency of the factory and the legal compliance, but also the quality of the end product. Unlike ordinary spray booths, our downdraft units are designed to be an integral part of the high-performance finishing line, meeting the high level of accuracy and dependability that companies in industries with zero tolerance for errors require. Due to a very effective downdraft ventilation system, it becomes the best choice for mission-critical jobs.
Aerospace & Defense: Since this sector is regulated by NADCAP and AS9100-type standards that leave no room for errors, there is a need for greater control and precision. The paint booth with a vertical airflow system is capable of providing an environment that is free of contaminants, which is necessary when coating aerospace parts that are of a critical nature.
- Precision & Compliance: The air flowing vertically from top to bottom makes sure that the layer of paint is even in thickness while particles are kept away; both these factors are very important if one wants to attain the strict specifications set for military and aviation. Compliance becomes easier with the help of an environment that is clothed, and an audit is also possible.
- Reliability: To cater to the up-time goals, the booth was designed in such a manner that even wear-intensive situations do not cause breakdowns or stoppages. Supporting regular operating schedules of equipment, including airframes, avionics, and defense hardware that are of high value,e is what the booths do, and for these items, coatings have to be flawless even when exposed to extreme conditions.
Auto OEM and Tier 1 Supplier: To get the perfect finish that is Class-A, a paint booth with downdraft operation cannot be bettered by anything else. This feature has obtained the status of being the worldwide norm for automotive finishing, covering OEM assembly lines and Tier 1 suppliers of automotive components.
- Precision: Air is pulled downwards together with the overspray and contaminants so that the body or the components are kept extremely clean, and virtually no dust gets deposited, ted which is responsible for the defects in finish and necessitating rework and buffing.
- Procurement Value: When defects in finishing go down, and the yield in the first pass goes up, then a real return on investment is expected. This is an important point on which procurement managers focus when they think of Total Cost of Ownership (TCO).
Heavy Machinery & Industrial Equipment: The manufacturers of agricultural, construction, and industrial equipment want coating solutions that not only promote the image of the brand but are also highly resistant to harsh environmental conditions. On top of that, our downdraft paint booth systems offer the benefits of the downdraft principle,e where the heavy overspray generated by the industrial coatings of the highest solids content is very efficiently removed and controlled both in terms of the worker exposure, the environmental impact, and the energy usage.
- Reliability: Because of the sturdy frame and good ventilation, these booths are capable of withstanding the high levels of overspray that result from the use of high-solids industrial coatings and other coatings and still perform well in the long run.
- Compliance: With the downdraft ventilation system that is very strong, there is much enhanced capture and removal of the VOCs and fumes in the work environment, making it healthier for the paint shop personnel and at the same time fulfilling the compliance obligations under the occupational health and environmental air quality regulations.
Fine Woodworking, Millwork & Cabinetmaking: For those in the premium furniture, architectural millwork, and custom cabinetry business, the look and feel of the final finish count as top quality indicators. Vertical airflow in a high-quality fixture, such as a premium spray booth, is indispensable in getting a surface that looks like glass, that is a mirror image.
- Precision: This downdraft type of paint booth will most clearly show its merits by guaranteeing the finish free of any blemishes as a result of controlling the overspray and suspended dust at the point of release, so that there is no fallout of particles on horizontal surfaces.
- Reliability: High-quality output that can be produced over and over again with the same level of easeleads too less material wastage and the elimination of the back-breaking and time-consuming task of correcting finish imperfections, thus directly making for a better bottom line.
Buyer Recommendation
Buyer's Guide: Procuring Your Downdraft Paint Booth
Investing in a downdraft paint booth is a significant decision requiring you to factor in technical, logistical, and financial aspects. Here are a few tips to help you with your purchase process and ensure that you get a system that will be of great value and high performing for your industrial finishing operations.
- Check the Facility and Infrastructure: A proper site visit is essential before signing the purchase agreement. Downdraft paint booths require a special setup. A concrete pit is required for the exhaust system, or a raised basement foundation is a prerequisite. Also, the floor space, height, electrical supply, air supply, etc., are important for the installation of the downdraft paint booths.
- Check for Regulatory Compliance and Certifications: Trust and safety are essential. Therefore, you will have to request proof of regulatory compliance. Our downdraft paint booths comply with the major regulatory requirements, including the NFPA 33 code and OSHA. We will provide the required documents for the electrical components, which will comply with the internal safety, health, and insurance requirements.
- Ask About the Minimum Order Quantity (MOQ) and Lead Times: The MOQ for a standard downdraft paint booth is 1 unit. The lead times for the standard downdraft paint booths vary. We will be able to provide you with the required information regarding the lead times.
- Ask if Bulk Supply and Multi-Unit Discounts are Possible: We provide multi-level pricing on bulk orders for the purchase of large-scale facility outfitting, or if your company is planning to standardize equipment across multiple locations. Get in touch with our sales engineering team to talk about volume discounts for your downdraft ventilation projects.
- Customize through Engineering to Suit Your Applications: Different finishing processes may require different finishing booths. Let’s start the conversation by you explaining what kind of substrate you work on, what kind of coating you use, and what throughput you expect. We can then customize downdraft paint booth sizes, airflow capacities, curing methods, and control systems to be in line with your processes.
- Think about Global Export and Logistics: We are experienced global exporters and are happy to share our knowledge for international procurement. We can create the systems to be export-grade, organize freight forwarding in your country,y and make sure that all customs documentation is complete. We also provide flexible shipping terms (FOB, CIF) so that you can pick up your professional paint booth safely at any major port worldwide.
- Conduct a Total Cost of Ownership (TCO) Analysis: Do not stop at the first capital expenditure. An advanced spray booth is a move towards efficiency. Get information on energy usage, filter replacement costs, and maintenance intervals. Our premium motors and lighting are targeted at reducing TCO and accelerating the payback period.
- Check Warranty, Spare Parts, and Technical Support: To be sure of long-term operational reliability, a sound warranty is desirable. Our downdraft paint booths are covered by a full manufacturer's warranty. We have a global network to procure critical spare parts such as filters and motors, and our dedicated technical support team is always available to help you reduce downtime and protect your investment.
Product Comparison: Downdraft vs. Alternative Airflow Designs
Selecting a proper paint booth is a significant decision since it impacts the quality of finish, smoothness of operations, and safety. A downdraft paint booth is considered to be the best in spray finish technology, although it is necessary to compare it with other paint booth designs to select the best option for specific applications.
| Feature | Downdraft Paint Booth | Crossdraft Paint Booth | Semi-Downdraft Paint Booth | Side Downdraft Paint Booth |
|---|---|---|---|---|
| The highestThe | The initial investment is due to pit/basement construction and extensive filtration systems. | Lowest initial investment; simplest design with no concrete work required. | Mid-range investment; offers improved performance over crossdraft without the cost of a pit. | High investment, comparable to downdraft, but avoids pit excavation costs. |
| Durability | Excellent: Engineered with heavy-gauge steel and premium components for high-volume, continuous industrial use and maximum lifespan. | Good: Standard industrial construction suitable for moderate use cases and general finishing tasks. | Very Good: Robustly built to handle demanding production schedules in collision repair and manufacturing. | Excellent: Designed for high-production environments where pit construction is not feasible. |
| Features | Full ceiling filtered intake, under-floor pit or raised basement exhaust, superior contamination control, optimal lighting, and integrated cure cycles. | Intake doors/plenum at one end, exhaust fan and filters at the opposite end. Basic, straightforward operation. | Filtered ceiling intake at the front of the booth with a rear wall exhaust plenum. A hybrid design. | Full ceiling filtered intake with exhaust plenums along the lower side walls. |
| Performance | Unmatched: Provides the cleanest possible finishing environment. Vertical airflow pulls overspray and contaminants immediately down and away from the workpiece, ensuring a flawless, mirror-like finish. | Standard: Air flows horizontally over the object. Prone to overspray settling on surfaces and potential contamination from dust drawn across the booth. | Enhanced: Offers significantly better contamination control than crossdraft by pulling overspray down and away from the object towards the rear. | Superior: Closely mimics the performance of a true downdraft booth, providing excellent finish quality and contamination control without a pit. |
| Target Users | Aerospace, automotive OEM & high-end refinishing, and industrial manufacturing where a Class-A, contaminant-free finish is non-negotiable. | General manufacturing, fleet maintenance, woodworking, and budget-conscious shops where a functional finish is prioritized over perfection. | High-volume collision repair shops and industrial finishers seeking a significant quality upgrade from crossdraft without the full investment of a downdraft paint booth. | High-production facilities in leased spaces or on upper floors where pit excavations are impossible,ble but a premium finish quality is required. |
