Rust Removal
500 Kg Portable Sand Blasting Machine strips corrosion back to bare, profiled metal ahead of coating.
EnquirePortable Sand Blasting Machine

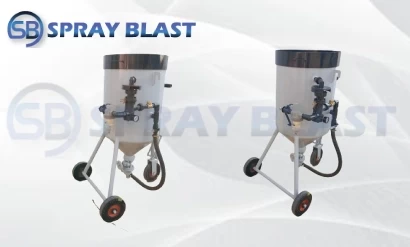

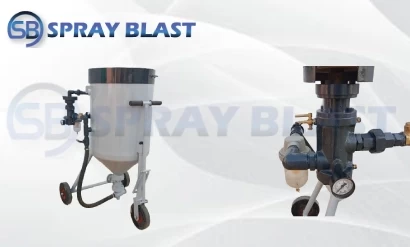

Portable sand blasting machines P7-500 are also known as portable sand blasters P7 500 and portable sand blasting machine P7 500 since they have a medium-sized blasting pot (500kg). The Portable Sand Blaster cleans at a reasonable rate.
Browse full product photos, component close-ups, and application views.
Review the key product specifications used for quotation and application planning.
Watch how the machine performs in real blasting and surface preparation conditions.
Portable sand blasting machines P7-500 are also known as portable sand blasters P7 500 and portable sand blasting machine P7 500 since they have a medium-sized blasting pot (500kg). The Portable Sand Blaster cleans at a reasonable rate.
Abrasive media is loaded into the 500 Kg pressure vessel of 500 Kg Portable Sand Blasting Machine.
Site compressed air pressurizes the tank to working pressure.

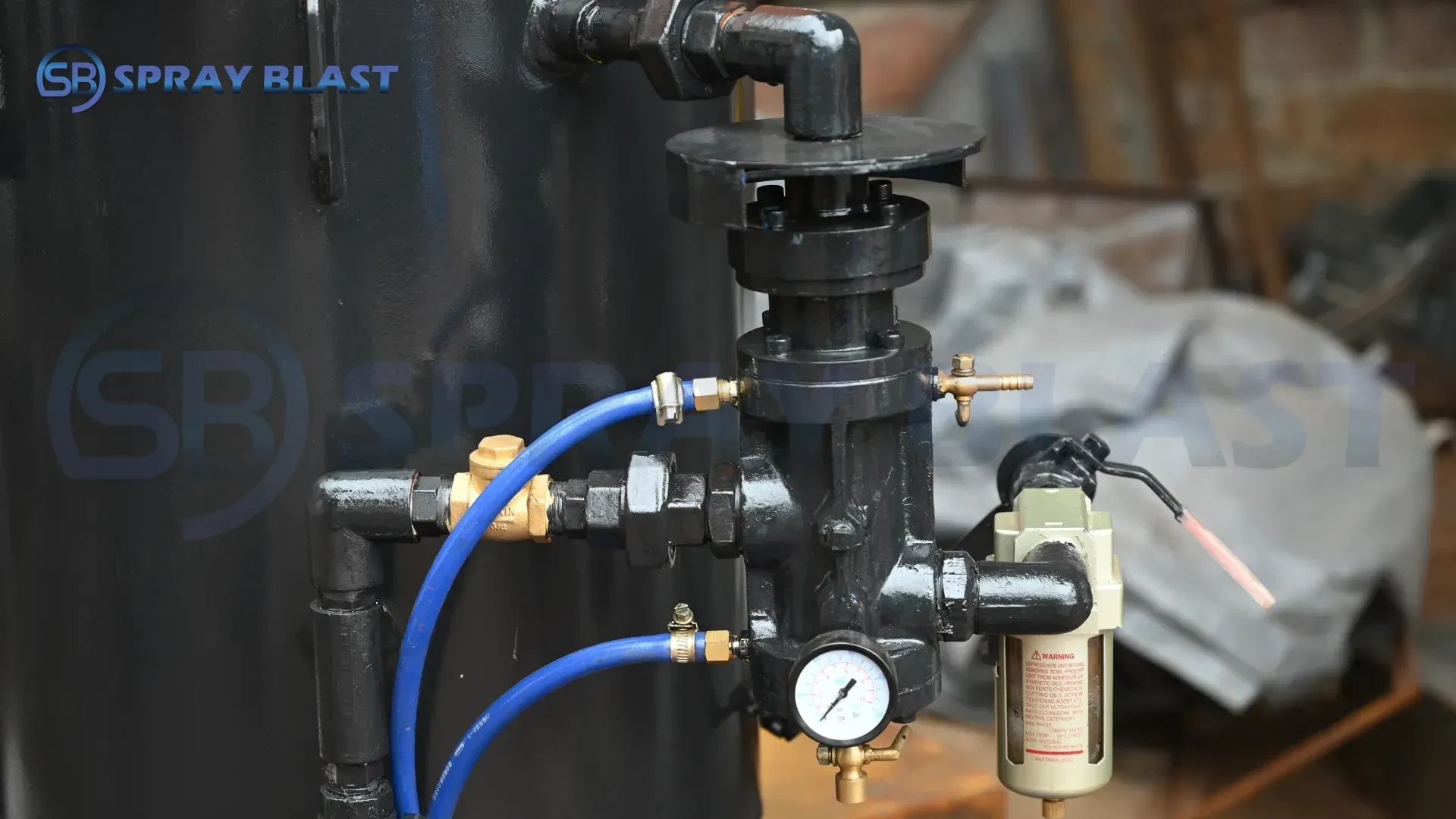

The control valve sets the air-to-abrasive ratio for the nozzle.
The pressurized mix travels down the blast hose to the work.
The nozzle speeds the stream as it exits toward the surface.
Abrasive impact removes rust, paint, and contaminants on site.
Portable sand blasting machines P7-500 are also known as portable sand blasters P7 500 and portable sand blasting machine P7 500 since they have a medium-sized blasting pot (500kg). The Portable Sand Blaster cleans at a reasonable rate. There are two types of this portable sand blasting machine: one with a remote control valve and a deadman handle, and one with a manual switch. When the operator wants to turn off the portable Sand blasting machine, he depressurizes it by releasing the deadman handle.
Leaver is attached to the sand blasting nozzle and is capable of handling it. It is also known as a blasting pot or a sand blasting hopper due to its portability. The Portable Sand Blaster's medium capacity is affordable in cost at maximum operating duration.
When the operator of a portable sand blasting machine presses the deadman lever, the portable sand blasting Machine units are pressurized. The leaver can easily handle it because it is close to the Sand Blasting Nozzle. It is also known as a blasting pot or a sand blasting hopper due to its portability.
| Abrasive Tank Capacity | 230 Kg (Sand) |
| Volume | 142 Ltrs. |
| Sand blast Hose Length | 7.5 mtrs. |
| Sand blasting Hose I.D. | 25 mm |
| Sand blaster Nozzle Orifice (Tungsten Carbide) | 6 / 8 mm |
Compare 500 Kg Portable Sand Blasting Machine with other models in Portable Sand Blasting Machine.
| Specification | 1000kg Portable Sand Blasting Machine | This model 500 Kg Portable Sand Blasting Machine | 300 Kg Portable Sand Blasting Machine |
|---|---|---|---|
| Abrasive Tank Capacity | 1000 Kg | — | — |
| Product | Portable Sand Blaster p7 1000 | Portable Sand Blasting Machine p7 500 | Portable Sand Blasting Machine P7 300 |
| Grade | Manual | Manual | Manual |
| Machine Type | Portable (With or With-Out Remote) | Portable (With or With-Out Remote) | Portable (With or With-Out Remote) |
| Sand Blasting Nozzle | Tungsten / Boron Carbide | Tungsten / Boron Carbide | Tungsten / Boron Carbide |
| Nozzle size | 5 - 10 mm | 5 - 10 mm | 5 - 10 mm |
| Blast Hose Length (Mtr.) | 10 Mtr. | 7.5 Mtr. | 7.5 Mtr. |
| Cleaning Rate | 24 Sq. Mtr./Hr. | 9 -12 Sq. Mtr./Hr | 5 - 7 Sq. Mtr./Hr. |
| Recommended Abrasive Size | 12 to 80 Mesh | 15 - 80 Mesh | — |
| Compressed air (80 psi) | 217 CFM | — | — |
| Color | As per client requirement | As per client requirement | As per client requirement |
| Brand | Spray Blast | Spray Blast | Spray Blast |
| Country | India | India | India |
| Model No. | P7-1000 & 1000R | P7-500 & 500R | P7-300 & 300R |
| Height | 1611 mm | 1370 mm | 1290 mm |
| Diameter | 761 mm | 615 mm | 460 mm |
| Gross Weight | 246 Kg | 180 Kg | 140 Kg |
| Price Range | Rs 5 Lakh - 10 Lakh | Rs 40 K - 10 Lakh | Rs 40 K - 1 Lakh |
| Recommended Air Compressor HP | — | 40 HP | — |
| Production Capacity : | — | 4-5 | — |
| Packaging Details | — | Polly Pack With Bubble Packing | Polly Pack With Bubble Packing |
| Transport Type | — | Land / Sea / Air Transport | Land / Sea / Air Transport |
| Abrasive Size | — | — | 25 to 80 Mesh |
| Production Capacity | — | — | 4-5 |
Typical applications for 500 Kg Portable Sand Blasting Machine across industrial blasting, coating, and surface preparation work.
500 Kg Portable Sand Blasting Machine strips corrosion back to bare, profiled metal ahead of coating.
EnquireRemoves old coatings and failed paint systems prior to recoating.
EnquireCreates the anchor profile required for coating adhesion.
EnquireClears scale, grease residue, and contamination from metal parts.
EnquireHeat tint and spatter are blasted before inspection or paint.
EnquireWhere specified, the machine textures concrete for coatings.
EnquireExternal shells and internals are blasted on site.
EnquirePlant steel is cleaned during outages then recoated.
EnquireAnswer a few questions and we will suggest a starting configuration for 500 Kg Portable Sand Blasting Machine — then confirm the exact specification with our team.
What material are you blasting?
What are you removing?
Required surface finish?
Frequency of use?
Available compressor capacity (CFM)?
Desired production rate?
Clear answers on specification, usage, and what to expect before you request a quote.
Tell us the application, quantity, and delivery need for 500 Kg Portable Sand Blasting Machine.
