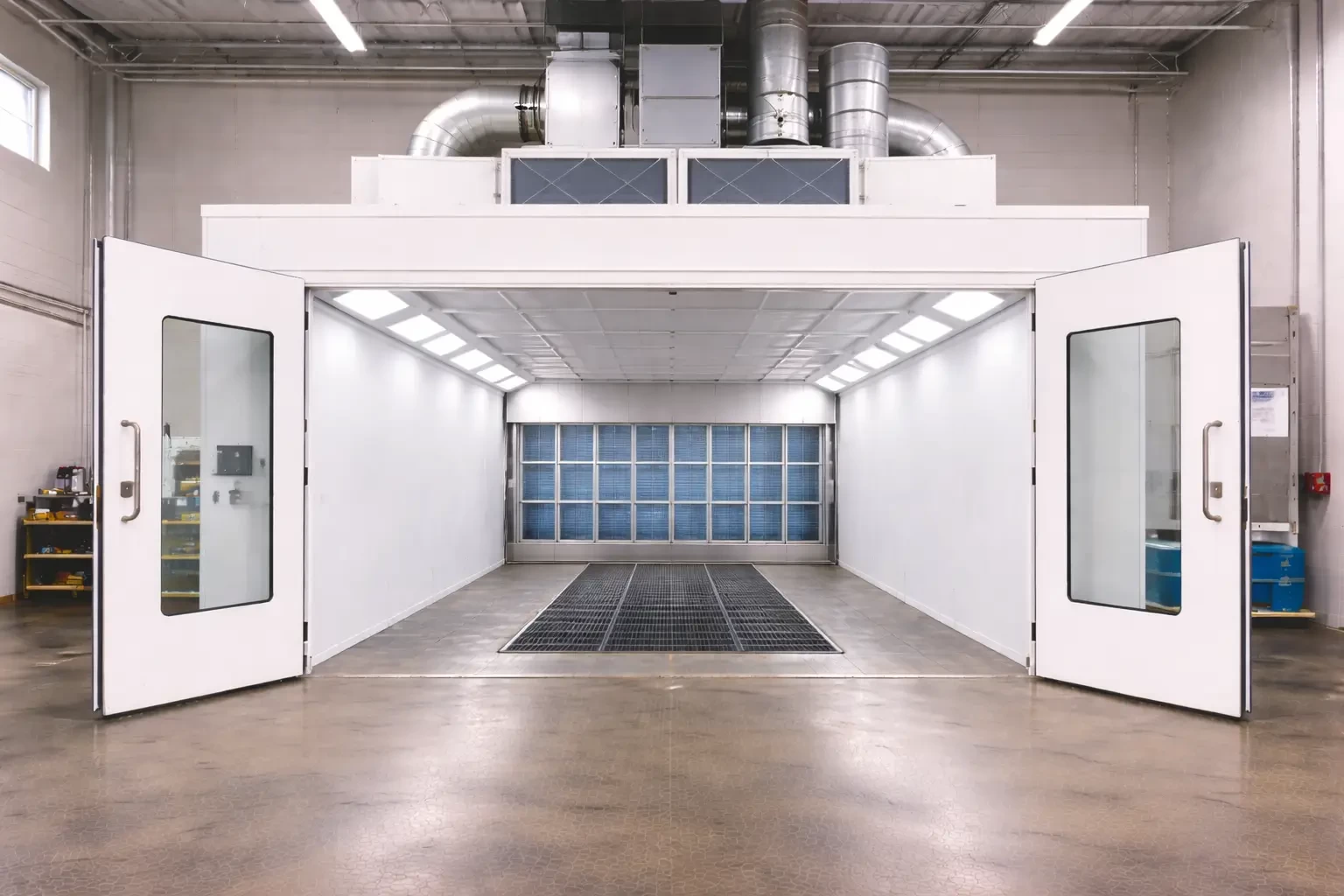

Introduction of Powder Coating Booth
A powder coating booth is a highly engineered structure that provides a clean environment necessary for electrostatic spray finishing. Our booths are specifically designed for industrial applications, delivering exceptional containment of powder particles in the air. This allows for a clean environment that ensures a safe working space. However, the real value of our booths lies in our highly advanced powder coating booths that have a system for the reclamation of wasted powder. This significantly reduces waste, thereby cutting down on overall operation expenses. This makes our powder coating booth a highly essential piece of equipment for any business that aims to improve its operation process, product finish, and achieve a high return on investment within a short period.
Our powder paint booths are constructed from heavy-gauge industrial steel, which makes them extremely durable for industrial use. Our industrial paint booth is highly engineered to give you a flawless finish on your product, which means that the product does not have any defects or imperfections. Not only does this give you a flawless finish on your product, but you can also comply with extremely stringent safety and environmental regulations. For your business, investing in our metal finishing booth is like investing in a future that guarantees unparalleled reliability, efficiency, and capability to deliver a highly superior, eco-friendly finish that meets highly stringent industrial standards.
Technical Specifications of Precision-Engineered Powder Coating Booths
Our powder coating booth systems are designed for optimal performance, safety, and reliability. The table below shows a detailed specification for our standard powder coating booths. Custom designs are also available to accommodate special needs.
| Specification | Model: PCB-S2500 | Model: PCB-M4000 | Model: PCB-L6000 | Model: PCB-C (Custom) |
|---|---|---|---|---|
| Working Dimensions (W x H x D) | 2.5m x 2.5m x 1.5m | 4.0m x 2.8m x 2.2m | 6.0m x 3.0m x 2.5m | Built to Order |
| Overall Dimensions (W x H x D) | 3.0m x 3.2m x 2.5m | 4.5m x 3.5m x 3.2m | 6.5m x 3.7m x 3.5m | Project Specific |
| Construction Material | 18-Gauge Mild Steel, White Powder-Coated Interior | 16-Gauge Mild Steel, White Powder-Coated Interior | 16-Gauge Mild Steel or Stainless Steel option | Customer Specified |
| Airflow (CFM / m³/h) | 6,000 CFM / 10,200 m³/h | 12,000 CFM / 20,400 m³/h | 18,000 CFM / 30,600 m³/h | Engineered to Spec |
| Filtration System | 2-Stage: High-Efficiency Cartridge Filters (MERV 13) | 3-Stage: Cartridge Filters, Final HEPA Filter (99.97% @ 0.3µm) | 3-Stage: Cartridge Filters, Final HEPA Filter (99.97% @ 0.3µm) | Multi-stage, Cyclone, or Cartridge Systems |
| Filter Cleaning | Automatic Reverse Pulse-Jet System | Automatic Reverse Pulse-Jet System | Automatic Reverse Pulse-Jet System | Automated or Manual |
| Lighting | 4 x 4-Tube T8 LED Fixtures (>1000 Lux) | 8 x 4-Tube T8 LED Fixtures (>1200 Lux) | 12 x 4-Tube T8 LED Fixtures (>1200 Lux) | Class I, Div 2 Explosion-Proof LED |
| Control Panel | PLC-based, VFD for fan control, filter pressure monitoring | PLC-based, HMI Touchscreen, VFD, filter monitoring, fire suppression link | PLC-based, HMI Touchscreen, VFD, filter monitoring, fire suppression link | Integrated System Control |
| Power Supply | 400V/3Ph/50Hz or 480V/3Ph/60Hz | 400V/3Ph/50Hz or 480V/3Ph/60Hz | 400V/3Ph/50Hz or 480V/3Ph/60Hz | As per regional requirements |
| Compatibility | Manual & Automatic Electrostatic Guns (Corona/Tribo) | Manual & Automatic Guns, Integrated Conveyor Systems | Manual & Automatic Guns, Heavy-Duty Conveyor Systems | Full system integration |
| Compliance | CE, NFPA 33, OSHA | CE, NFPA 33, OSHA, ATEX options available | CE, NFPA 33, OSHA, ATEX options available | Certified to the required standards |
Working Principle of Powder Coating Booth
The main idea behind a powder coating booth is to create a very controlled environment for the accurate electrostatic application of powder; in this way, operator safety, environmental compliance, and the highest use of material capacity can be attained simultaneously. The whole process is designed to charge the powder particles, then attract these charged particles to the grounded workpiece and dispense any overspray effectively for powder recovery.
This is how the overall mechanism of a powder coating booth operates in an industrial finishing environment:
- Part Preparation and Grounding: The metal substrate (the workpiece) is taken as the starting point. First, the substrate is thoroughly cleaned and pre-treated. Subsequently, the substrate is electrically grounded by hanging it either on a conveyor or rack inside the booth. Grounding is a very important step, because it is the source of the electric potential difference which results in electrostatic attraction.
- Controlled Airflow and Filtration: The booth's ventilation system comes into operation and directs filtered, clean air inside the enclosure. This forms a particular airflow pattern (for instance, a downdraft or crossdraft paint booth) which is intended at two points: It keeps the particles from the air which can deposit on the surface of the part away and it also leads the powdered overspray to the filtration system.
- Electrostatic Powder Application: Precision electrostatic guns enable the operator to apply powder coatings efficiently. When passing through the gun, the powder particles are negatively charged electrostatically. The grounded positively charged workpiece attracts the charged powder particles as if it were a magnet. Due to this electrostatic wrapping effect, even intricate, deeply hidden areas can be coated evenly and consistently.
- Overspray Containment and Collection: The powder that does not stick to the part (overspray) is taken by the controlled airflow to a high-efficiency filtration system, which is cartridge filters most of the time. The powder coating booth's design (including walls) stops the powder from being dispersed into the workshop environment, thus ensuring safety for workers and other equipment.
- Powder Reclamation and Reuse: Cartridge filters capture the overspray powder. The filter cleaning is done by giving them an air blast in the opposite direction, which results in the powder collected falling into the reclamation hopper beneath. Apart from being recycled, this powder can also be sifted and mixed with new powder, by doing so the material transfer efficiency can be greatly improved (usually above 95%), which also helps in the reduction of operational expenses.
- Exhaust and Curing Transfer: The air without powder particles is vented out safely, either back into the facility or outside. Curing is the next step for the coated part to be taken from the powder paint booth to, the heat generated in the oven melts the powder resulting in a flow of finish, and then cross-linking of the polymer chains happens, creating a tough protective finish.
Components
Key Components of an Industrial Powder Coating Booth
Our powder coating booth systems are engineered from high-grade materials for durability, efficiency, and safety. Each component is meticulously designed to work in concert, delivering a superior finishing environment. The table below details the core components that constitute our standard industrial powder coating booth.
| Component Name | Description | Function | Material | Dimensions (Typical) | Weight (Approx.) | Color |
|---|---|---|---|---|---|---|
| Booth Enclosure | The primary cabin structure is constructed from interlocking, insulated panels to form a controlled application environment. | Contains powder overspray, prevents external contaminants, and ensures a clean, safe workspace for the operator. | 1.5-2.0mm Mild Steel Panels | Varies by model (e.g., 3m W x 4m H x 6m D) | 1500 - 3000 kg | White (Interior), Industrial Gray/Blue (Exterior) |
| Powder Recovery System | An integrated module featuring high-efficiency cartridge filters and a reverse-pulse jet cleaning system. | Captures and reclaims up to 98%+ of powder overspray, maximizing material utilization and minimizing operational waste. | Stainless Steel Collector, Spun-Bond Polyester Cartridges | Integrated; Module approx. 1.5m x 1.5m x 2.5m | 300 - 800 kg | Metallic/Gray |
| PLC Control Panel | A centralized, user-friendly interface for managing all booth functions, including airflow, lighting, and filter cleaning cycles. | Provides precise control over the entire powder coating booth operation, ensuring consistent performance and safety. | Steel Enclosure (IP55 rated), Industrial-Grade Electronics | 600mm x 800mm x 300mm | 50 - 75 kg | Industrial Gray (RAL 7035) |
| Exhaust Fan & Motor | A high-volume, low-noise centrifugal axial flow fan engineered for continuous duty and safe operation in powder-laden environments. | Creates optimal airflow to draw overspray into the recovery system and maintain negative pressure within the booth for operator safety. | Heavy-Gauge Steel Housing, Non-Sparking Aluminum Impeller | Varies by CFM rating (e.g., 1m x 1.2m x 1.1m) | 150 - 400 kg | Safety Blue/Gray |
| Lighting System | Class II, Division 2 explosion-proof LED fixtures, strategically placed for shadow-free illumination of the workpiece. | Ensures excellent visibility for the operator, enabling precise coating application and immediate quality control checks. | Die-Cast Aluminum Housing, Tempered Glass Lens | 1200mm x 200mm x 100mm per fixture | 10 - 15 kg per fixture | White/Aluminum |
| Final Filtration Unit | A secondary bank of high-efficiency prefilter (HEPA or MERV 14+) located downstream from the primary recovery system. | Acts as a final safeguard, capturing any fine particulate matter to ensure exhausted air meets stringent environmental standards. | Galvanized Steel Frame, Synthetic Filter Media | Integrated into exhaust plenum; size varies with airflow | 50 - 150 kg | Galvanized Steel |
| Personnel Access Doors | Heavy-duty, fully sealed doors equipped with safety interlocks and large viewing windows. | Provides safe entry/exit for operators and supervisors. Safety interlocks automatically halt operations if a door is opened. | Powder-Coated Steel, Laminated Safety Glass | 1m W x 2.1m H | 80 - 120 kg | Matches Booth Exterior |
Industry Application of Powder Coating Booth
Our industrial powder coating booth systems are mission-critical systems for modern manufacturing and finishing operations. Our systems are engineered to integrate with your manufacturing processes to help increase quality, safety, and efficiency. Our focus is on four key pillars for industrial procurement and operations: procurement value, regulatory compliance, production reliability, and finishing precision.
Procurement and Operational ROI
A powder coating booth is a big investment, and our designs help lower the Total Cost of Ownership (TCO) by making the most of materials and saving energy. Our advanced reclamation systems can get back up to 98% of overspray, which cuts down on waste and disposal costs by a lot. Our sturdy designs and energy-efficient parts, such as VFD fans and LEDs, also lower operating costs and speed up payback.
Compliance and Environmental Stewardship
Keeping a building secure and compliant is a must. From OSHA, NFPA 33, to EPA air quality, our booths are not just compliant but even great in meeting safety standards. The high-efficiency filtering systems not only prevent worker exposure but also maintain a clean plant by effectively catching particles. Dry powder booth technology, for example, is a vital piece of an environmentally friendly coating strategy. It allows you to work with solvent-free powders, which, on one hand, help you accomplish your sustainability objectives, and, on the other, have less negative impact on the environment.
Reliability and Production Uptime
In industrial finishing, downtime is lost revenue. We design each of our metal finishing booths for maximum uptime and the highest level of durability. Made from heavy-gauge, galvanized or stainless steel and fitted with industrial-grade motors, fans, and controls, our systems are designed for continuous, multi-shift operation. Features such as quick-change filter cartridges and easily accessible maintenance points make servicing a breeze, thus allowing your production line to remain operational and profitable.
Precision and Quality Control
There are few things as critical as the quality of your finish in communicating your brand. Our electrostatic spray booth designs offer the perfect controlled environment needed for a flawless, Class-A finish. Powder turbulence and cross-contamination are prevented by the optimized laminar airflow, whereas operators are able to check for complete and even coverage thanks to the superior, shadow-free lighting. Such stringent environmental control leads to the achievement of consistent mil thickness, enhanced adhesion, and a significant decrease in rework and scrap materials.
Key Industries Served:
- Automotive & Transportation: To ensure resistance to corrosion and abrasion, different parts like chassis, wheels, frames, and aftermarket components can be coated.
- Aerospace & Defense: The application of high-performance/lightweight coatings to parts that must withstand extreme environmental conditions is performed in this segment.
- Architectural & Construction: Besides providing durability, finishes for aluminum extrusions, window frames, facade components, and steel construction components can also offer color retention properties.
- General Manufacturing & Fabrication: Enclosures for machines, electrical enclosures, metal frames, as well as fabricated components, are examples of durable finishes that can be applied.
- Appliance & Furniture Manufacturing: Finishes of high quality and good looks are given to consumer appliances, office furniture, and retail fixtures.
Buyer Recommendation
Buyer's Guide: Procuring Your Industrial Powder Coating Booth
When making a capital investment in a powder coating booth, several factors need to be considered. In order to ensure you make a purchase that will meet your production requirements and provide you with a long-term return on your investment, we recommend the following procurement process.
-
Define Your Operational Scope: Before you even request a quote, it is essential to define your needs. This includes documenting your maximum part size and weight to be coated, as well as your production requirements on a daily or weekly basis. This information is necessary to ensure that you are choosing a properly sized electrostatic spray booth.
-
Verify International Standards and Certifications: In terms of operational safety and regulatory compliance, it is important to check if the powder coating booth meets industry standards in terms of NFPA 33, OSHA, and ATEX. In terms of international procurement, it would be best to check if the manufacturer has a CE mark and an ISO 9001 certification.
-
Inquire About Customization and System Integration: As a finishing line is a one-of-a-kind system, consider the degree of customization available beyond standard size options. Additionally, consider the level of system integration with any pre-existing or planned conveyor system, pre-treatment washers, and curing ovens. A supplier that excels in customization can offer a more efficient system.
-
Clarify MOQ and Bulk Supply Capabilities: If you are operating on a larger scale, OEMs/distributors will be interested in supply logistics.
- Minimum Order Quantity (MOQ): Ask about the MOQ, which is usually one unit for standard products, though this could be different for highly customized products.
- Bulk Supply: If you are equipping many facilities, you may want to ask about our ability to supply in bulk. Ask about the possibility of tiered pricing.
-
Assess the Total Cost of Ownership (TCO): Don't just focus on the price. Ask for information on the energy consumption of the booth (VFD-controlled fans), the lifespan of the filters, the cost of replacing the filters, and the maintenance schedule. A high-efficiency dry powder booth with durable components will have a lower TCO and a quicker payback.
-
Confirm Export and Logistics Expertise: We are exporters with experience in exporting equipment for industrial finishing. We take care of the whole export logistics. We confirm the shipping terms, the lead time for international delivery, and the supply of the export documents required for customs clearance, including the Commercial Invoices, Packing List, and Certificate of Origin.
-
Request Extensive Technical and After-Sales Support: Trustworthy collaboration doesn't stop at the sale. Ask for comprehensive technical datasheets, installation instructions, and operator training manuals. Make sure there is a dedicated technical support team and a well-defined warranty policy to protect your investment in a new powder paint booth.
Product Comparison
Powder Coating Booth vs. Alternative Finishing Methods
Selecting the best finishing solution is an essential investment for your business. In an effort to ensure you are making an informed decision, we have conducted an extensive comparison of our industrial powder coating booth with other popular solutions, including traditional liquid paint booths and open-air spraying. Our evaluation is centered on the essential factors that affect your business productivity, quality of finish, and overall profitability.
| Feature / Aspect | Powder Coating Booth (Our Solution) | Liquid Paint Spray Booth | DIY / Open-Air Spraying |
|---|---|---|---|
| Price (Initial Investment) | Moderate to high initial investment, offset by long-term operational savings. | Lower to moderate initial investment for comparable-sized equipment. | Very low initial cost, limited to spray guns and basic safety gear. |
| Durability & Finish Quality | Superior. Creates a thick, uniform, and highly durable finish resistant to chipping, scratching, corrosion, and fading. | Good. Finish quality can be high, but it's generally less durable than powder. Prone to drips, runs, and requires thinner layers. | Poor & Inconsistent. Highly susceptible to contamination from dust and debris. Lacks proper curing, leading to a weak, unprofessional finish. |
| Performance & Efficiency | Excellent. Up to 95%+ material transfer efficiency with overspray reclamation systems. Single-coat application is often sufficient. | Moderate. Lower transfer efficiency results in significant material waste. Often requires multiple coats and longer drying/curing times. | Very Low. Extremely inefficient with massive material waste due to uncontrolled overspray. No process control. |
| Features & Operating Costs | Eco-Friendly. No VOCs or solvents. Lower material and waste disposal costs due to powder reclaim. Faster curing cycles save energy. | Higher Operating Costs. Requires expensive solvents, thinners, and specialized hazardous waste disposal. Higher ventilation energy costs. | High Hidden Costs. Costs are driven by wasted material, rework due to poor quality, and a lack of process efficiency. |
| Ideal Target User | Industrial manufacturers, metal fabricators, and job shops require high-volume, durable, and repeatable high-quality finishes. | Automotive refinishing, woodworking, and applications needing intricate color matching or where substrates cannot withstand heat. | Hobbyists or non-commercial, one-off projects where professional quality, safety, and compliance are not required. |
