Wear Protection
Electric Arc Spray Gun applies dense metallic or carbide coatings on high-wear parts.
EnquireSpray Gun

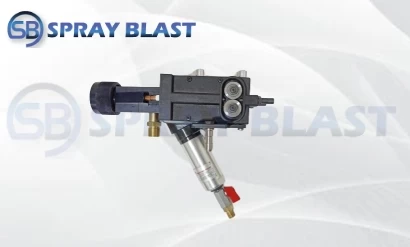

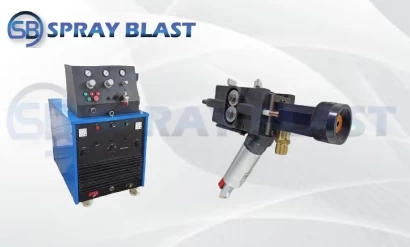

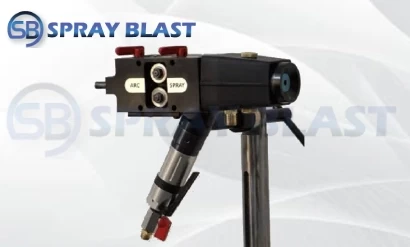

An electric arc spray gun is a type of thermal spray equipment that uses an electric arc to melt and atomize wire feedstock, which is then deposited onto a substrate to form a coating.
Browse full product photos, component close-ups, and application views.
Review the key product specifications used for quotation and application planning.
Watch how the machine performs in real blasting and surface preparation conditions.
An electric arc spray gun is a type of thermal spray equipment that uses an electric arc to melt and atomize wire feedstock, which is then deposited onto a substrate to form a coating.
Two conductive wires are fed into Electric Arc Spray Gun.
An electric arc melts the wire tips between the contact tubes.
Air jets break molten metal into a spray toward the workpiece.
Droplets splat and build a metallic layer on the blasted surface.
Gun speed and overlap set the required coating build.
Adhesion and coverage are inspected after cool-down.
An electric arc spray gun is a type of thermal spray gun that uses an electric arc to melt and atomize wire feedstock, which is then deposited onto a substrate to form a coating. The wire is fed into an electric arc generated between two electrodes, which melts and atomizes the wire into fine droplets. The droplets are propelled towards the substrate by the high velocity of compressed air or gas, and impact onto the surface, forming a coating.
Electric arc spraying is a thermal spraying procedure that utilizes an electric arc as the heat source between two consumable electrodes of the surface materials. A compressed gas atomizes the molten material and drives it to the workpiece. The figure depicts the process's basic principles. A wire feeder feeds the two consumable electrode wires, bringing them together at an angle of around 30 degrees and maintaining an arc between them. A compressed air jet is situated just behind and in line with the intersecting wires. The wires melt in the arc, and the air jet atomizes the molten metal, propelling the fine molten particles to the workpiece. A direct-current constant-voltage welding machine is used to generate the arc. Except that it feeds two wires, the wire feeder is similar to that used for gas metal arc welding. The gun can be held in one's hand or attached to a holding and moving mechanism. To provide a coating surface on the part, either the part or the gun is moved relative to the other.
The high arc temperature melts the electrode wire faster and deposits particles with higher heat content and fluidity than the flame spray gun procedure. Deposition rates are three to five times higher, and binding strength is 5000-7000 PSI. In addition to the mechanical link, there occurs coalescence. When compared to flame spraying, the deposit is denser and the coating strength is higher.
The parameters of the electric arc spray gun process can be simply modified to provide a variety of surface profiles. When rough surfaces are required, the coating settings are changed to provide coarse atomization of the melting wires. By feeding two separate wires, you can construct unique chemistries.
To replace badly worn equipment, electric arc coatings can generate relatively thick coatings. They are also easily machined to print specs and have many times the wear resistance of the original component substrate.
Electric arc spray guns offer the advantage of being able to produce coatings with high deposition rates and high bond strength, making them suitable for heavy-duty applications. They also require relatively simple equipment compared to other thermal spray processes. However, they may require more frequent maintenance due to the high temperatures and electrical currents involved in the process.
Electric arc spray guns are commonly used for surface coatings in various industries, such as aerospace, automotive, and marine, as well as for repair and maintenance applications. They can be used with a variety of materials, including metals and alloys, and can produce coatings with a range of thicknesses and properties.
Electric arc spray coatings can offer the effects you need, whether you need a smooth, rough, thin, or thick covering. Arc spraying is easy to use and produces very consistent, controlled surface outcomes. Among the advantages of using an electric arc spray are:
Overall, electric arc spray guns offer a cost-effective and versatile solution for a variety of coating applications, particularly for applications that require high deposition rates and high bond strength.
Compare Electric Arc Spray Gun with other models in Spray Gun.
| Specification | Tungsten Carbide Coating | This model Electric Arc Spray Gun | Powder Flame Spray Gun |
|---|---|---|---|
| Product | Tungsten Carbide Coating | — | — |
| Hardness | 2200HV | — | — |
| Melting Temperature | 2800C | — | — |
| Bond Strength | 8,500 PSI | — | — |
| Deposit efficiency, % | 48-58 | — | — |
| Brand | Spray Blast | Spray Blast | Spray Blast |
| Country of Origin | India | — | — |
| Delivery Time | 1-2 Weeks | — | 10-15 Days |
| Packaging Details | Polly Pack With Bubble Packing | — | — |
| Price Range | Rs 60k-1Lakh | Rs 6 Lakh - 20 Lakh | Rs 45K - 5Lakh |
| Type of Gun | — | Electric Arc Spray Gun | Powder Flame Spray gun |
| Wire Size (Dia.) | — | 2 - 5.51 mm | — |
| Input Supply | — | 415 V/3P/50 - 60hz | — |
| Power Req. | — | 25 - 45 Kw | — |
| Weight | — | 226 Kg - 275 Kg | — |
| Grade | — | Manual / Semi-Automatic | Automatic / Manual |
| Usage | — | Coating & Metalizing | — |
| Color | — | As per client requirement | As per client requirement |
| Country | — | India | India |
| Packaging Type | — | Bubble Wrapping & Box | Bubble Wrapping & Box |
| Transport Type | — | Land / Sea / Air Transport | — |
| Gun Weight | — | — | 1.7 Kg / 1.85 Kg |
| Acetylene Consumption | — | — | 13.5 to 31.5 NLPM |
| Hydrogen Consumption | — | — | 90 to 144 NLPM |
| Oxygen Consumption | — | — | 20 to 45 NLPM |
| Compressed Air Consumption | — | — | 0.85 m3/min at 4.5 bar |
| Delivery Type | — | — | Land, Air, Ship |
Typical applications for Electric Arc Spray Gun across industrial blasting, coating, and surface preparation work.
Electric Arc Spray Gun applies dense metallic or carbide coatings on high-wear parts.
EnquireSprayed zinc, aluminum, or alloy coats protect structural steel.
EnquireUndersize shafts and housings are rebuilt to print.
EnquireRepeatable spray parameters coat batches of the same part.
EnquireSeats and sleeves get hardfacing for erosion service.
EnquireProcess rolls receive a wear or release surface.
EnquireLocal spray rebuilds damage cheaper than a new part.
EnquireA sealer is applied over porous spray deposits when specified.
