Wear Protection
Thermal Spray Gun applies dense metallic or carbide coatings on high-wear parts.
EnquireSpray Gun

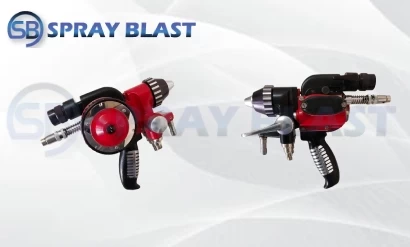

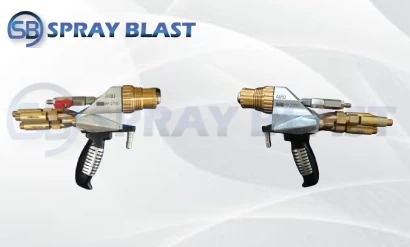

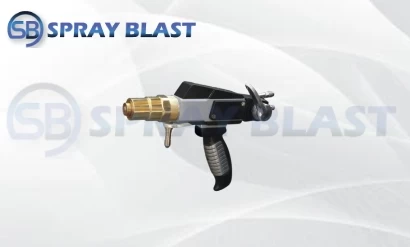

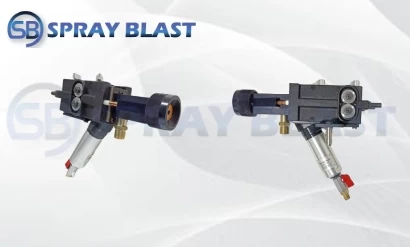

A thermal spray gun is a device used in thermal spraying, a process in which a material is melted or heated and then sprayed onto a surface to create a coating or repair damaged surfaces. The thermal spray gun is the primary tool used to apply the coating material.
Browse full product photos, component close-ups, and application views.
Review the key product specifications used for quotation and application planning.
Watch how the machine performs in real blasting and surface preparation conditions.
A thermal spray gun is a device used in thermal spraying, a process in which a material is melted or heated and then sprayed onto a surface to create a coating or repair damaged surfaces. The thermal spray gun is the primary tool used to apply the coating material.
Steel is cleaned so Thermal Spray Gun coating can bond.
Wire or powder is melted in the gun energy source.
Molten metal is sprayed in overlapping passes.
Zinc or alloy thickness is brought up to the spec.
A sealer may be applied over porous spray deposits.
The coated area is inspected before the part is released.
A thermal spray gun is a device used in thermal spraying, a process in which a material is melted or heated and then sprayed onto a surface to create a coating or repair damaged surfaces. The thermal spray gun is the primary tool used to apply the coating material. There are several different types of thermal spray guns available, each with its own unique features and benefits. Some common types of thermal spray guns include powder flame spray guns, arc spray gun, and plasma spray guns.
The thermal spray process is used in a wide range of industrial applications to provide protective coatings, enhance surface properties, and repair damaged surfaces. The coatings produced by thermal spray guns can be very dense, with low porosity, and can have excellent adhesion to the substrate.
There are several types of thermal spray guns, including:
The choice of thermal spray gun depends on the specific application and the characteristics of the coating material. Factors to consider include the required coating thickness, the desired surface finish, and the type of material being coated.
Thermal spray coatings can be made from a variety of materials. Because choosing the correct coating is critical, the thermal spray gun will collaborate with you to determine the optimum coating material for your requirements. We deal with metals, alloys, carbides, ceramics, and other materials to provide our customers with high-quality coatings that meet the performance and protection requirements of their applications. The thermal spray gun is used Aluminum & Aluminum Alloys wire, Babbitt wire, Carbon Steels wire, Copper wire, Inconel, Nickel & Nickel Alloys wire, and Stainless Steels wire for thermal spray coating.
Thermal spray gun price depends on the type of thermal spray gun in India. We are one of the best thermal spray gun manufacturers & suppliers of arc spray gun, flame spray gun, hvof spray gun, thermal spray booth, themal spray wire, and thermal spray powder in India. we also provide sand blasting machine, automatic sand blasing machine, portable sand blasting machine, sand blasting safety equipment, sand blasting nozzle, abrasive media, steel shot, steel grit, copper slag, aluminum oxide, silicon carbide, glass beads, plastic media, walnut shell, etc.
Compare Thermal Spray Gun with other models in Spray Gun.
| Specification | Tungsten Carbide Coating | This model Thermal Spray Gun | Electric Arc Spray Gun |
|---|---|---|---|
| Product | Tungsten Carbide Coating | — | — |
| Hardness | 2200HV | — | — |
| Melting Temperature | 2800C | — | — |
| Bond Strength | 8,500 PSI | — | — |
| Deposit efficiency, % | 48-58 | — | — |
| Brand | Spray Blast | Spray Blast | Spray Blast |
| Country of Origin | India | — | — |
| Delivery Time | 1-2 Weeks | 15-20 Days | — |
| Packaging Details | Polly Pack With Bubble Packing | Polly Pack With Bubble Packing | — |
| Price Range | Rs 60k-1Lakh | Rs 45K - 6Lakh | Rs 6 Lakh - 20 Lakh |
| Material | — | Stainless Steel | — |
| Nozzle Size | — | 0.3 mm | — |
| Type Of Metal | — | Aluminum, zinc, copper wire & powder coating | — |
| Air Pressure (psi) | — | 30-50 | — |
| Usage | — | Coating | Coating & Metalizing |
| Color | — | As per client requirement | As per client requirement |
| Country | — | India | India |
| Production Capacity | — | 4-5 | — |
| Transport Type | — | Land / Sea / Air Transport | Land / Sea / Air Transport |
| Type of Gun | — | — | Electric Arc Spray Gun |
| Wire Size (Dia.) | — | — | 2 - 5.51 mm |
| Input Supply | — | — | 415 V/3P/50 - 60hz |
| Power Req. | — | — | 25 - 45 Kw |
| Weight | — | — | 226 Kg - 275 Kg |
| Grade | — | — | Manual / Semi-Automatic |
| Packaging Type | — | — | Bubble Wrapping & Box |
Typical applications for Thermal Spray Gun across industrial blasting, coating, and surface preparation work.
Thermal Spray Gun applies dense metallic or carbide coatings on high-wear parts.
EnquireSprayed zinc, aluminum, or alloy coats protect structural steel.
EnquireUndersize shafts and housings are rebuilt to print.
EnquireRepeatable spray parameters coat batches of the same part.
EnquireSeats and sleeves get hardfacing for erosion service.
EnquireProcess rolls receive a wear or release surface.
EnquireLocal spray rebuilds damage cheaper than a new part.
EnquireA sealer is applied over porous spray deposits when specified.
EnquireAnswer a few questions and we will suggest a starting configuration for Thermal Spray Gun — then confirm the exact specification with our team.
