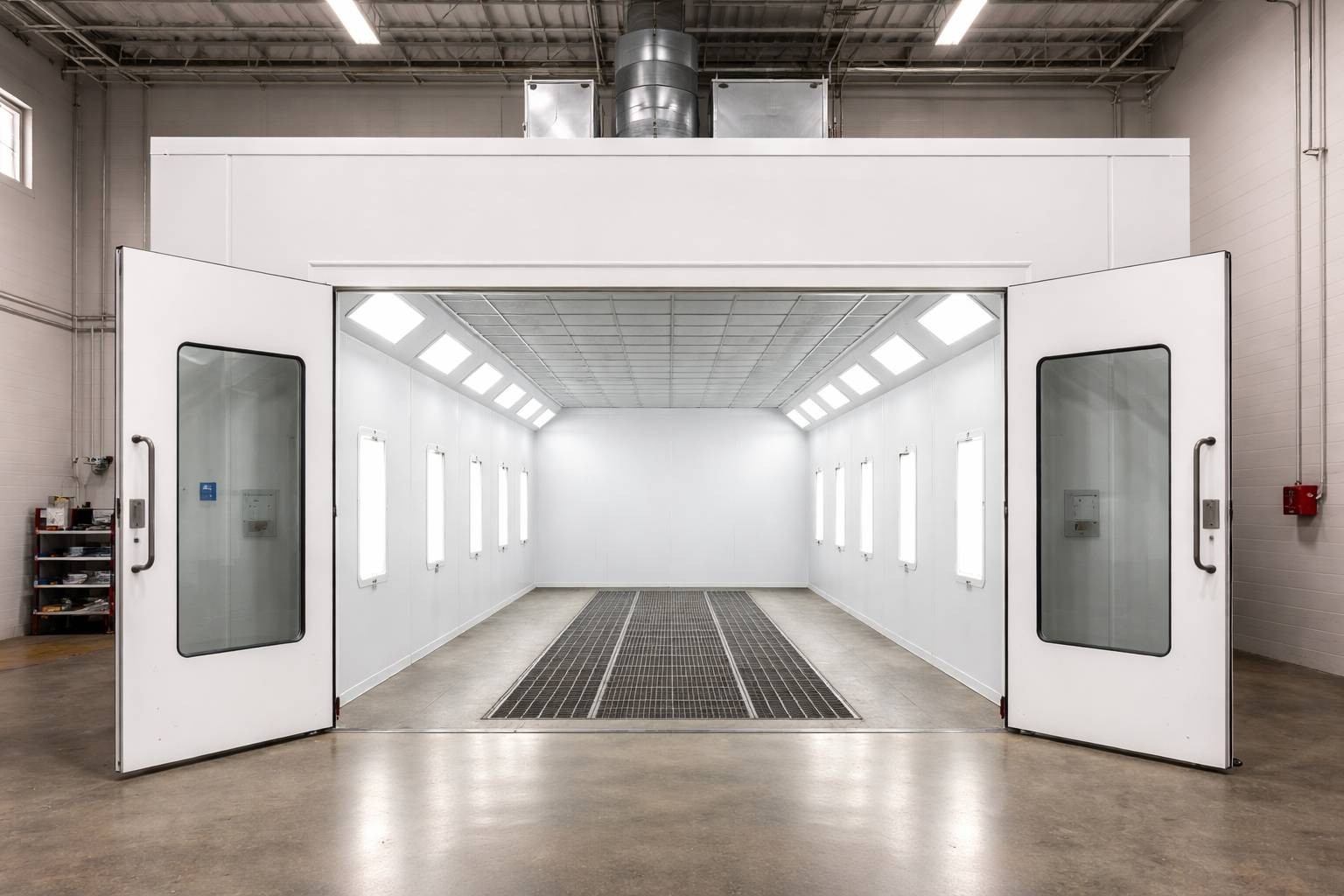

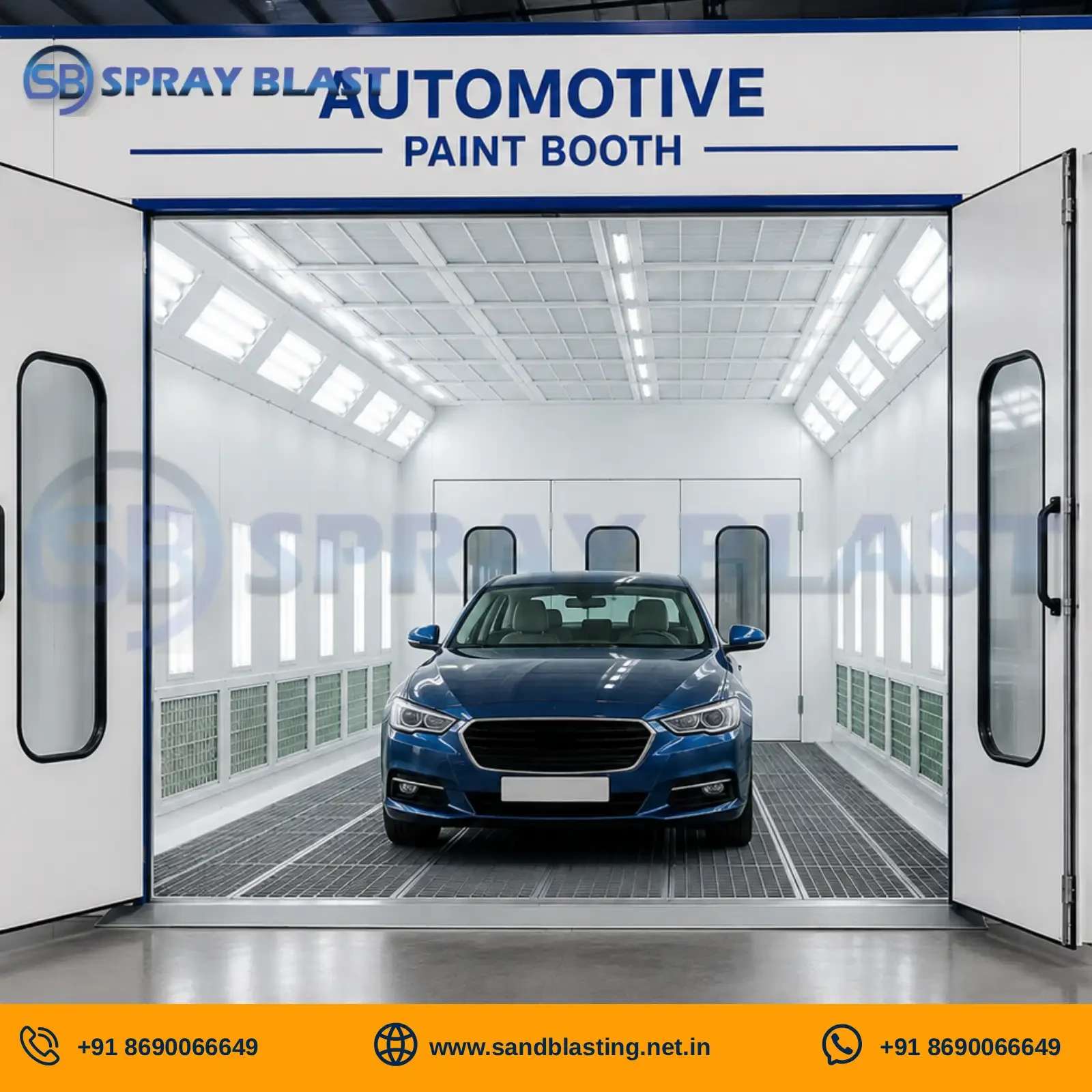

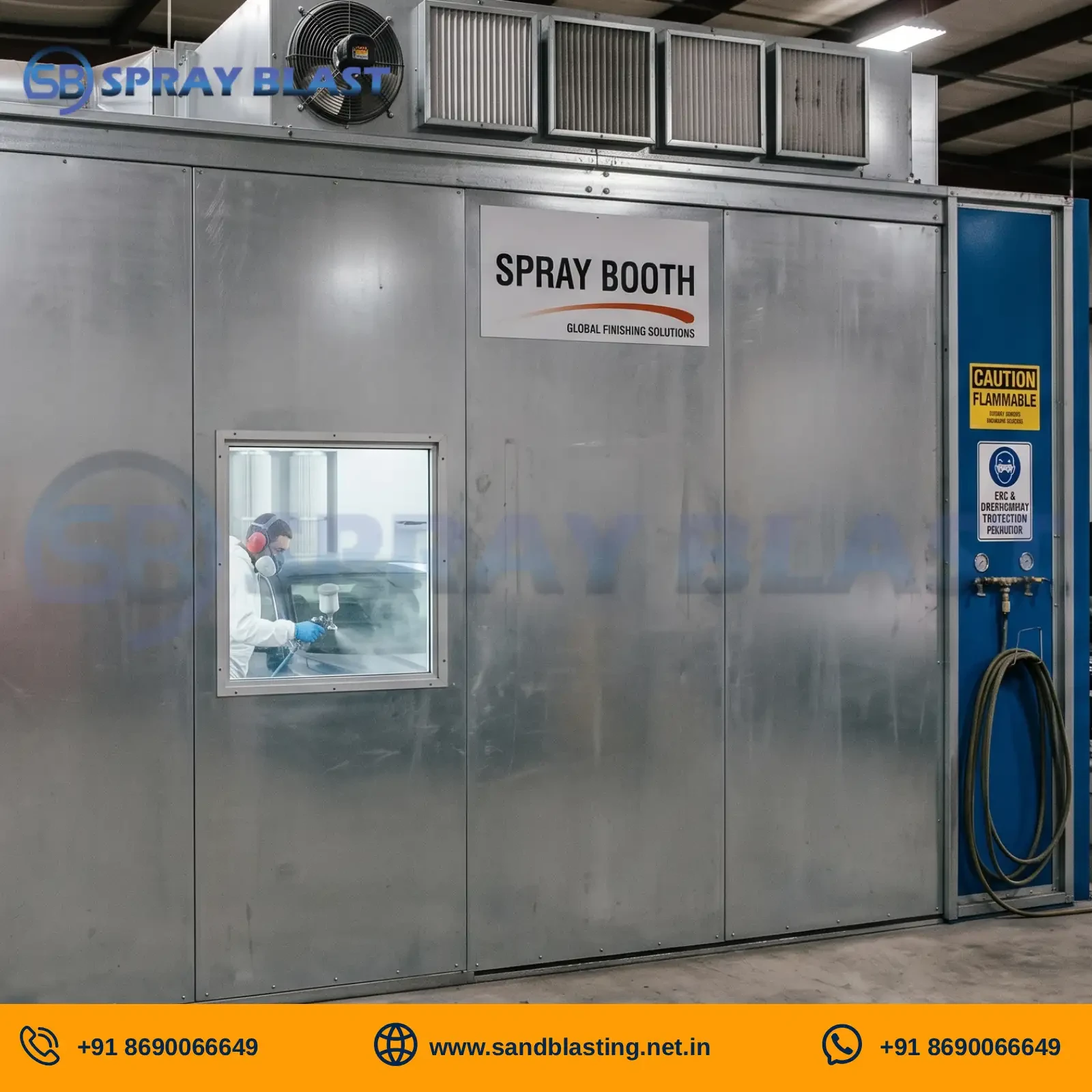

Introduction of Automotive Paint Booth
An automotive paint booth is a highly engineered, completely enclosed system specifically designed to offer flawless, contaminant-free finishes for vehicles. The paint booth is highly engineered to offer superior performance, providing a controlled atmosphere with advanced airflow, temperature, and humidity controls, as well as multi-stage filtration. The crossdraft paint booth offers meticulous control over dust, debris, and overspray, creating an ideal finish for high-solids, waterborne, and solvent-based coatings. The paint booth is an essential tool for auto body shops, collision repair centers, and manufacturers, offering a perfect, factory-quality finish on every vehicle, from individual panel repairs to complete vehicle resprays.
Our paint booth is built for uncompromising durability and operational value, offering an investment in your business's efficiency, safety, and reputation. The paint booth is built with heavy-gauge, powder-coated galvanized steel, providing an industrial-grade finish. The industrial paint booth is built to last, offering reliability, maximum uptime, and withstanding the demands of a high-speed finish. Investing in our car spray booth is an investment in your business's success, allowing you to deliver consistent, repeatable results, minimize material waste, and meet stringent environmental and safety regulations, resulting in increased profitability and delivering high-caliber results your clients expect.
Technical Specifications
Our paint booths for the automotive industry are designed with performance, durability, and compliance in mind. The following table describes the technical specifications of our main paint booths. They are designed to meet the high demands of the automotive bodywork industry.

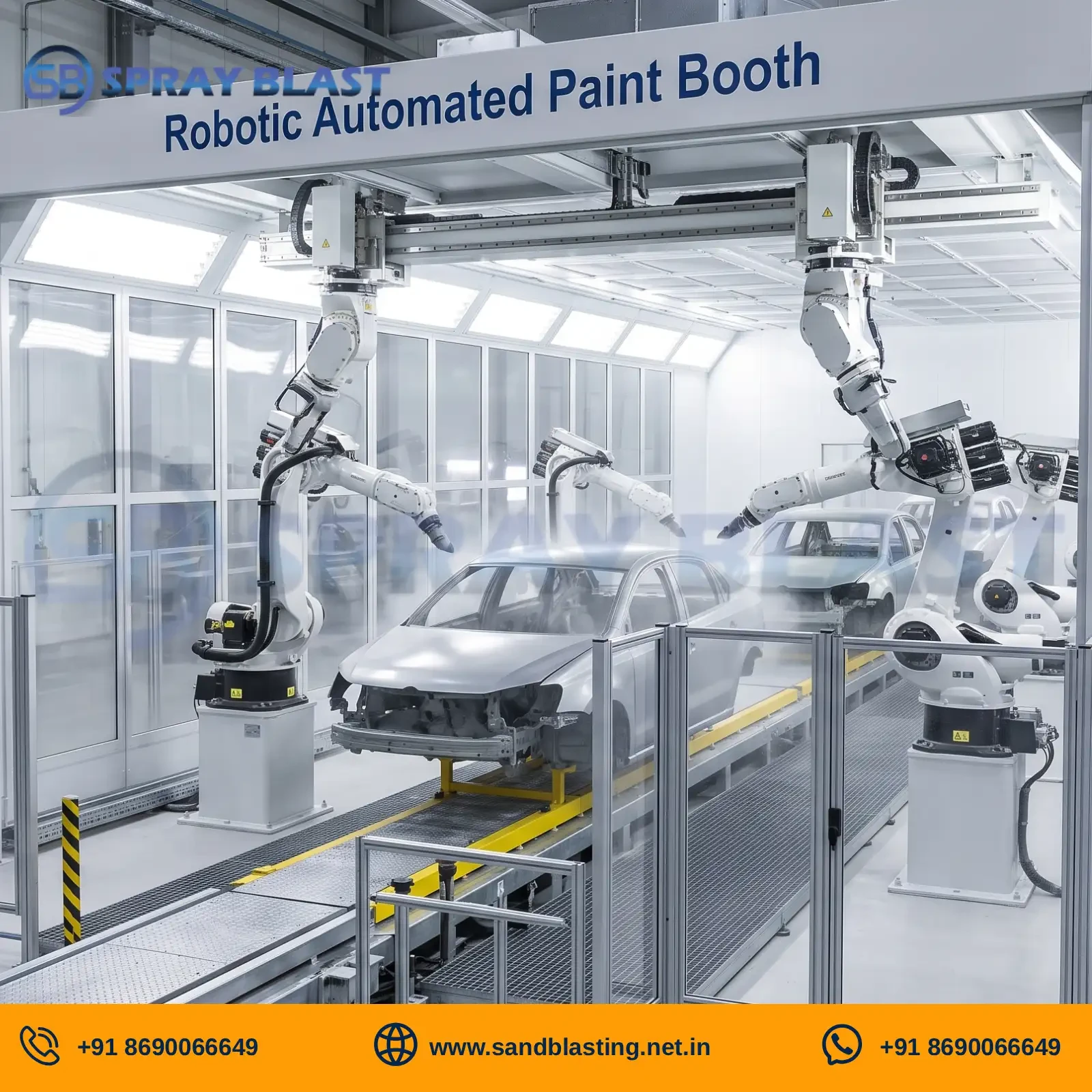

| Model | Key Specifications | Construction Material | Dimensions (External L x W x H) | Compatibility | Origin |
|---|---|---|---|---|---|
| APB-7000 Series | Standard Automotive Paint Booth - Downdraft/Semi-Downdraft Airflow - 1.2M BTU Direct-Fired Burner - 18,000 CFM Airflow - PLC Control Panel |
Dual-skin, 18-gauge mild steel panels with powder-coat finish. Rock wool insulation. | 7.0m x 5.35m x 3.4m (23' x 17.5' x 11.2') | Cars, SUVs, Light Trucks; Waterborne & Solvent-based paints | Global Components, Assembled in India |
| APB-8500 Series | Premium Vehicle Refinish Booth - Full Downdraft Airflow - 1.5M BTU Direct-Fired Burner - 24,000 CFM Airflow - VFD Motor Control - Touchscreen PLC |
Dual-skin, 16-gauge mild steel panels with powder-coat finish. High-density rock wool. | 8.5m x 5.6m x 3.8m (27.9' x 18.4' x 12.5') | Large SUVs, Vans, Commercial Vehicles; All paint systems | Global Sourcing, Assembled in India |
| APB-9500-OEM | OEM Finishing Booth - Tunneled Downdraft - Gas Catalytic Infrared Curing - 30,000+ CFM Airflow - Advanced Process Control - Conveyor Integration |
Heavy-duty, 14-gauge stainless/mild steel construction. Mineral wool insulation. | Custom-engineered to facility specifications | OEM production lines, high-volume refinishing, robotic & manual application | Global Sourcing, Project-specific Assembly |
Note: Dimensions and specifications are customizable to meet specific client requirements. All models are designed for export and can be configured to meet regional electrical and safety standards (e.g., CE, ETL).
Working Principle of an Automotive Paint Booth
An automotive paint booth is a controlled environment with zero tolerance for contaminants. It is designed to provide a flawless finish while meeting all the requirements to ensure the safety and health of the painter and the environment. This process is generally completed through two major operational cycles: the spray cycle and the cure/bake cycle.
- Air Intake and Filtration: This cycle starts with the intake of fresh ambient air through an Air Makeup Unit (AMU) and axial flow fan. This air is first passed through a series of pre-filters to remove larger contaminants. This air is then blown through high-efficiency ceiling diffusion media filters, which distribute fresh and contaminant-free air evenly throughout the cabin.

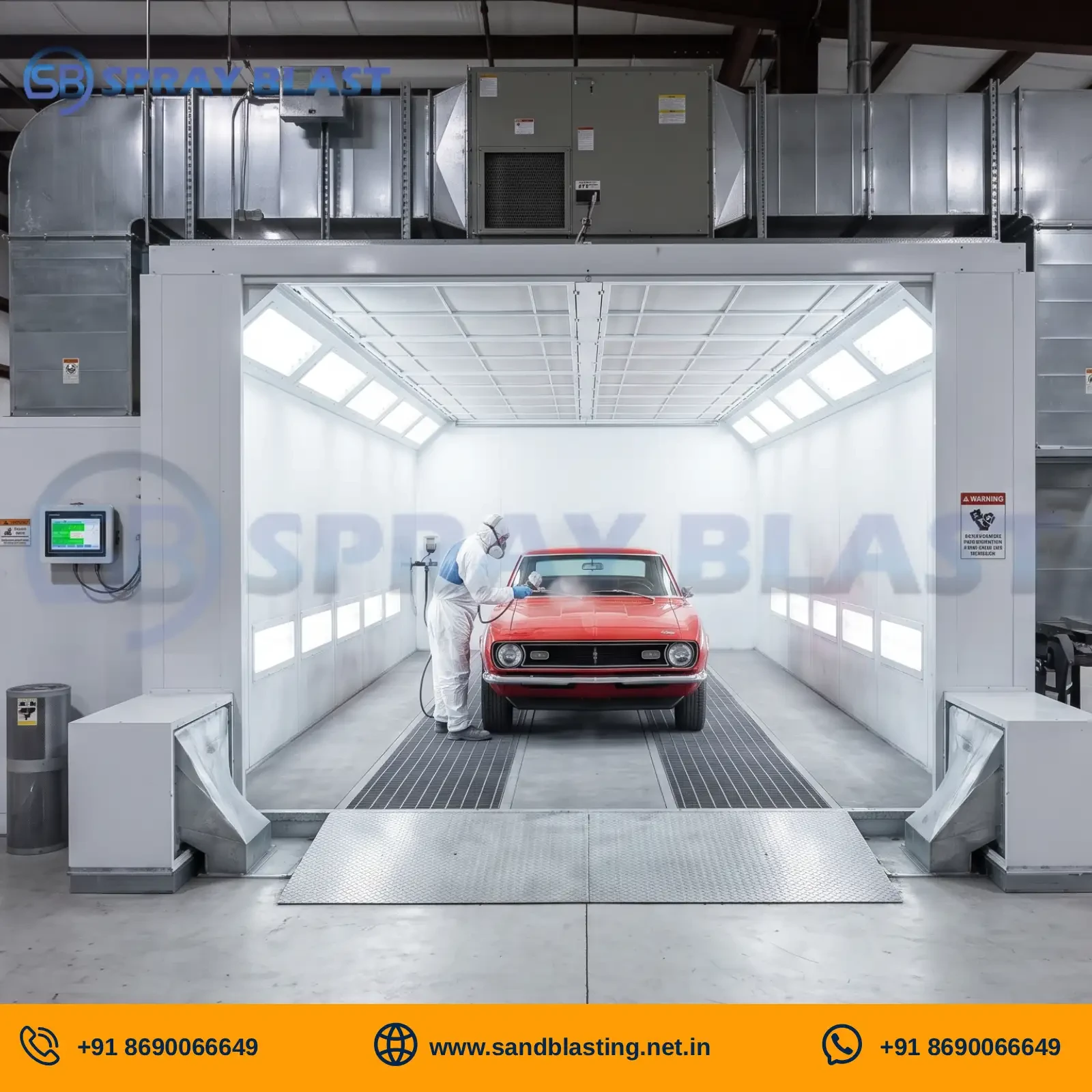

- Pressurization and Spray Application: During this cycle, the system is pressurized. In an automotive downdraft paint booth, the fresh air is blown vertically from the ceiling and then drawn downward through an exhaust pit. This air is then evenly distributed throughout the cabin and then drawn downward through an exhaust pit. This air then systematically removes all the paint overspray and VOCs from the surface of the car and the breathing zone of the painter. This process is extremely important to ensure a defect-free finish and a healthy working environment.
- Exhaust and Overspray Capture: This air is then passed through a multi-stage exhaust filtration system, usually consisting of fiberglass paint arrestors and prefilters. This air is then safely exhausted outside the facility while meeting all the critical requirements set by NFPA 33 and EPA.
- Curing and Baking Cycle: Once the paint is applied, this cycle starts. This cycle is completed by lighting the burner attached to the Air Makeup Unit. This burner heats the air to a specific temperature (e.g., 140-180°F / 60-82°C). The dampers are then set to recirculate the majority of this hot air to create a high-temperature oven. This process accelerates the cross-linking and curing time of the paint.
Components of the Automotive Paint Booth
Our automotive paint booth is engineered from high-grade, durable components designed for performance, safety, and longevity. Each part is meticulously crafted to contribute to a flawless finishing environment. The table below details the core components of a standard configuration.
| Component Name | Description | Function | Material | Dimensions (L x W x H) | Approx. Weight |
|---|---|---|---|---|---|
| Cabin Wall & Roof Panels | Interlocking, dual-skin insulated panels with a tongue-and-groove fit for a superior seal. | Creates a sealed, pressurized, and thermally controlled environment, preventing contamination and maintaining temperature. | 18-gauge mild steel, rock wool insulation core. | 120" x 24" x 2" (per panel) | 85 lbs (38.5 kg) |
| Air Makeup Unit (AMU) | A direct-fired natural gas or propane heater and blower assembly, complete with intake filtration. | Heats and supplies filtered, pressurized fresh air into the booth during spray and cure cycles to ensure optimal application and drying. | Aluminized & galvanized steel housing, stainless steel burner. | 96" x 60" x 60" | 1,500 lbs (680 kg) |
| Exhaust Fan Assembly | High-capacity, non-sparking tube-axial exhaust fan with a TEFC (Totally Enclosed, Fan-Cooled) motor. | Safely extracts solvent-laden air, fumes, and paint overspray from the cabin, maintaining a clean and safe working atmosphere. | Spark-resistant cast aluminum propeller, galvanized steel housing. | 42" Dia. x 36" L | 350 lbs (159 kg) |
| Multi-Stage Filtration | A comprehensive system including intake pre-filters, full-ceiling diffusion media, and multi-pocket exhaust filters. | Removes contaminants from incoming air (99% efficiency) and captures paint overspray before exhausting to the atmosphere. | High-efficiency synthetic fiber media, fiberglass. | Varies by filter type | 2-15 lbs (1-7 kg) |
| Central Control Panel | UL 508A-listed industrial control panel with motor starters, digital temperature controller, and cycle timers. | Provides centralized, automated control over all automotive paint booth operations, including spray, flash, and bake cycles. | NEMA 12 steel enclosure. | 24" x 30" x 10" | 110 lbs (50 kg) |
| Lighting Fixtures | Class I, Division 2, 4-tube fluorescent or LED light fixtures, mounted in ceiling and wall corners. | Provides bright, color-corrected (5000K), and shadow-free illumination for precise paint application and quality inspection. | Powder-coated steel housing, tempered glass lens. | 48" x 12" x 4" | 25 lbs (11.3 kg) |
| Main Vehicle Doors | Insulated, tri-fold main doors with large, tempered safety glass observation windows and heavy-duty hinges. | Provides a secure, airtight seal for the booth and allows easy access for vehicles of various sizes. | 18-gauge mild steel, rock wool insulation. | 10' W x 9' H (set) | 600 lbs (272 kg) |
| Personnel Access Door | A single, insulated door with an observation window, positive latching mechanism, and internal panic hardware. | Allows for safe and easy entry/exit for technicians without opening the main doors, maintaining the booth's pressure and cleanliness. | 18-gauge mild steel, rock wool insulation. | 36" W x 84" H | 150 lbs (68 kg) |
Industry Application of Automotive Paint Booth
Our automotive paint booth systems are engineered as mission-critical capital assets for facilities where finish quality, operational uptime, and regulatory compliance are paramount. We address the core challenges faced by OEM production lines, high-volume collision repair centers, and specialty vehicle manufacturers, focusing on the key pillars of industrial procurement and performance.
Procurement for High-Volume Operations
Industrial paint booths are an investment in your business, and we understand that buying one is an important strategic decision. Our goal is to offer you the lowest possible Total Cost of Ownership (TCO).
- Energy Efficiency: Our paint booths incorporate Integrated Variable Frequency Drives, efficient motors, and energy-saving cure cycles to minimize operational costs.
- Material Optimization: Our paint booths' airflow design ensures maximum efficiency in paint usage, thereby reducing material costs.
- Modular Scalability: Our paint booths can be easily integrated with your existing workflow. They can be configured to meet your specific needs, from single-vehicle refinishing to continuous assembly line operations.
Navigating Stringent Compliance and Safety Standards
Working within the automotive finishing industry requires strict compliance with environmental and safety regulations. Our booths are built from the ground up to meet and exceed these requirements for you.
- Regulatory Adherence: Built to comply with important international and regional regulations such as OSHA, NFPA 33, and EPA 6H (NESHAP). Export models are built to CE and ATEX directives as required.
- Emission Control: Multi-stage filtration technology removes particulate and noxious VOCs for a clean exhaust and a safe work environment for your technicians.
- Intrinsic Safety: All electrical components, lighting fixtures, and motors within the hazardous work zone are specified as explosion-proof for a safe and risk-free operation.
Ensuring Uptime and Reliability in Production Lines
In the real-world environment of production, downtime is not an option. Every part of our auto paint booth is chosen for maximum durability and reliability.
- Industrial-Grade Construction: Our auto paint booths feature heavy-gauge, galvanized steel panels and a strong construction framework to withstand the harsh conditions of the industrial environment.
- Component Durability: Our auto paint booths feature high-quality components such as high-performance intake/exhaust fans and door components that offer maximum durability with the least amount of maintenance required.
- Serviceability: Our auto paint booths offer easy-to-service filter banks, clear control panel diagnostics, and easy maintenance access to minimize service time required.
Achieving OEM-Level Precision and Finish Quality
The result of a vehicle refinish booth is the quality of the finished product. Our booths create an impeccably controlled environment, allowing the finisher to achieve flawless, factory-grade results with absolute repeatability.
- Contamination Control: Our pressurized cabins and precise construction ensure a near-sterile environment, eliminating defects caused by dust and airborne contaminants.
- Uniform Airflow: Downdraft, semi-downdraft, and cross-draft designs are CFD-tested to ensure consistent, eddy-free airflow, guaranteeing even coating application and preventing overspray contamination.
- Optimized Curing: State-of-the-art direct or indirect-fired heating ensures rapid, consistent temperature distribution during bake cycles, guaranteeing proper cross-linking and a high-gloss finish worthy of an OEM finishing booth.
Buyer Recommendation
B2B Buyer's Guide: Procuring Your Automotive Paint Booth
If you are planning to make a considerable capital investment in an automotive paint booth, it is necessary to consider the technical specifications and the reliability of the supplier. These recommendations will be helpful to you in the process of purchasing a paint booth.
-
Verify International Certifications and Compliance: For an automotive paint booth intended to be part of a global operation, it is important to ensure that the product complies with major international standards. This includes CE marking for the European market, ISO 9001 for quality management standards, and ETL or UL markings to ensure compliance with North American safety standards. This is an important trust factor to ensure that the product has passed through stringent quality and safety standards.
-
Minimum Order Quantity (MOQ) and Bulk Supply: Our MOQ is one (1) unit, catering to independent auto body shops and R&D centers. For MSOs, OEMs, and large-scale industrial projects, we have bulk production capability and offer discounts for bulk orders. Please consult with our sales engineers for phased deliveries for multi-unit installations.
-
Evaluate Total Cost of Ownership (TCO): Consider costs beyond the equipment purchase price. Ask for information on energy consumption costs (kW/h during bake cycles), component lifespans and replacement costs for intake and exhaust filters, and maintenance requirements. A high-efficiency automotive paint booth with high-quality components will have a lower TCO and a faster return on investment.
-
Assess the capability for customization and integration: Every business has its unique processes. Before purchasing, confirm the capability of the supplier for customization in terms of dimensions, airflow types (Downdraft, Semi-Downdraft, Crossdraft), and control systems.
-
Confirm Global Logistics and Export Expertise: As experienced exporters, we can offer complete logistical support. Ask about our standard shipping terms (Incoterms like FOB, CIF), expert crating for secure sea or air transportation, and our ability to offer all required documentation for efficient customs clearance, including Certificate of Origin and detailed packing lists.
-
Scrutinize Warranty and After-Sales Support: The warranty is an essential factor in evaluating product quality. The warranty for our paint booth systems covers both structure and components. Confirm if we offer access to a global spare parts network and/or remote/onsite technical support to limit any potential system downtime.
-
Request Detailed Technical Documentation: To conduct an exhaustive evaluation, request detailed technical submittals. This should include CAD drawings, P&IDs (Piping and Instrumentation Diagrams), electrical diagrams, and specifications for airflow velocities (CFM/m³ per hour), lighting levels (LUX), and temperature consistency during curing cycles.
-
Review Case Studies and Client References: Request case studies or references from companies with similar applications, such as collision repair, OEM finishing, or specialty vehicle manufacturing. Performance in an operating business environment is the final measure of quality and reliability for your automotive paint booth.
Product Comparison
Product Comparison: Choosing the Right Finishing Solution
The choice of the correct finish solution is a crucial investment decision, and it has a direct impact on the finish quality, operational efficiency, and workplace safety. While our state-of-the-art automotive paint booth has been designed to offer the best in class in terms of quality and durability, it is also necessary to understand the relative position in the market.
| Feature | Our Professional Automotive Paint Booth | DIY / Temporary Spray Enclosures | Used / Refurbished Paint Booths |
|---|---|---|---|
| Price | High initial investment with a strong, calculable long-term ROI through efficiency and quality. | Very low initial cost, but high recurring costs in rework, materials, and potential fines. | Medium initial cost, but carries the risk of unforeseen repair expenses and non-compliance. |
| Durability | Constructed from heavy-gauge, powder-coated G90 galvanized steel for decades of high-volume industrial use. | Low. Typically made of plastic sheeting or light frames; not designed for permanent or repeated professional use. | Variable. Durability depends heavily on previous usage, maintenance history, and original build quality. |
| Features | Advanced: Integrated curing cycles, precision airflow control, multi-stage filtration (intake/exhaust), superior ETL-listed lighting, and digital controls. | Minimal to none. Lacks proper ventilation, filtration, heating, or controlled lighting, creating an unsafe and uncontrolled environment. | Often lacks modern features like energy-saving VFDs, advanced PLC controls, or current safety compliance (NFPA 33, OSHA). |
| Performance | Delivers consistent, contaminant-free, OEM-quality finishes. Maximizes throughput and ensures operator safety and environmental compliance. | Inconsistent results with a high probability of dust, debris, and overspray contamination. Poses significant safety and compliance risks. | Performance can be unreliable. Potential for inconsistent airflow, uneven heating, and costly operational downtime. |
| Target Users | Professional auto body shops, collision repair centers, OEM/Tier 1 suppliers, and high-volume industrial finishers require precision and compliance. | Hobbyists, DIY mechanics, or micro-operations with minimal budget and non-commercial quality requirements. | Start-ups or budget-conscious shops are willing to accept the inherent risks of older technology and potential maintenance liabilities. |
Though cheaper options may appear to be attractive based on cost, nothing can replace the level of control, safety, and finish quality provided by a new, professional-grade auto paint booth. To businesses where throughput, compliance, and perfect, repeatable results are critical, there is nothing more profitable than investing in a quality, warranted solution.
