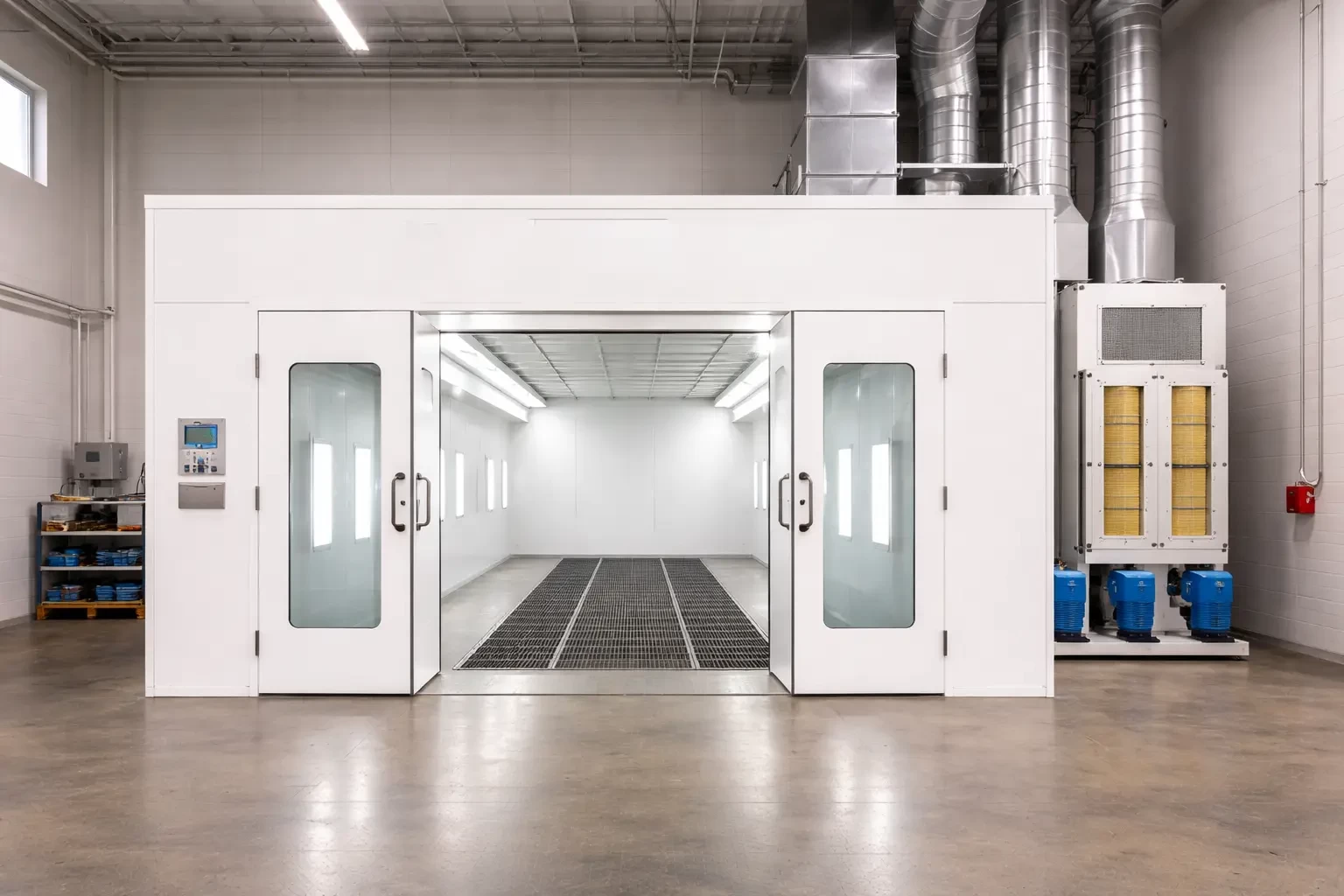

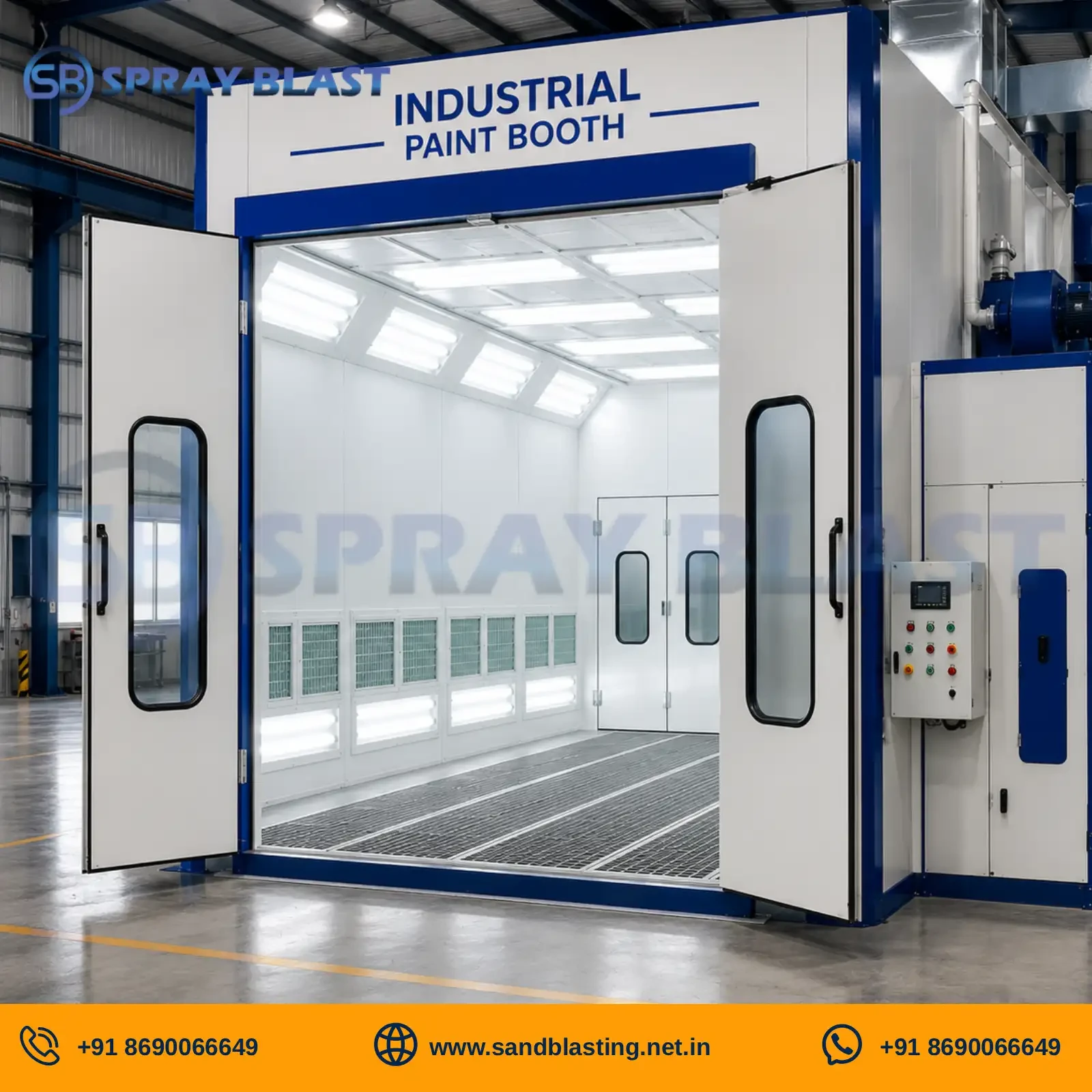

Industrial Paint Booth

Introduction of Industrial Paint Booth

Industrial paint booths serve as the cornerstone of any professional finishing process, providing the contaminant-free environment necessary for flawless finishing operations on products, parts, and equipment. Our paint booths are optimized for maximum performance with the integration of advanced downdraft or crossdraft airflow technology, multiple-stage filtration systems, and color-corrected lighting to guarantee the perfect finish on every item. By providing the ideal finishing environment, our crossdraft paint booth enables your team to produce the highest quality finish with the least amount of waste and rework, which in turn boosts your overall productivity.

Manufacturing paint booths are engineered with the strongest, high-strength mild steel with an industrial-grade electric motor, fan, and control components. Our Portable Retractable Paint Booth is designed for the unforgiving demands of around-the-clock production cycles. Our paint booths guarantee maximum up-time with the least amount of required maintenance. Our paint booths represent the ultimate in reliability, safety, and regulatory compliance. Our paint booths represent the ultimate in value with the guarantee of the highest quality finish, the safety of your workers, and the knowledge that your facility is in full compliance with the most stringent NFPA and OSHA regulations.

Technical Specifications of Industrial Paint Spray Booth

Our industrial paint booth systems are engineered to deliver superior performance, exceptional durability, and strict adherence to demanding safety standards. Below, the specifications elaborate on the sturdy construction and cutting-edge features that are purpose-built to meet the needs of high-volume, high-output finishing operations.

Working Principle

How an Industrial Paint Booth Works: The Operational Process

The industrial paint booth is basically a self-contained and precisely engineered environment that is able to control, contain, and cure liquid coatings safely, efficiently, and at the highest quality possible. The main point is to handle the way air is moving so that the best conditions will be created for the work to be done, on top of protecting the people and the whole facility. In fact, the whole operation can be divided into separate, consecutive phases.

• Phase 1: The first phase in the process starts with the Air Make-Up Unit. Axial Flow Fan unit draws the air from outside the building. As the air is drawn into the system, it is required to pass through a series of filtration steps where dust, pollen, oil, and other substances need to be removed. At each stage of filtration, these substances are removed completely by the filters. As the air moves towards the cabin, it is already purified to the greatest extent with no such substances present in it. The first stage is very important because the filtration process at this stage is required to be perfect in order to avoid surface defects and obtain the Class A finish.
• Phase 2: After the fresh air is subjected to filtration, it is introduced into the cabin, thereby pressurizing the interior. This slight over-pressurization helps in avoiding the entry of impure air and other impurities from the surroundings of the factory when the doors of the booth are opened. Moreover, the design of the booth, which could be downdraft, crossdraft, or semi-downdraft, helps in ensuring a laminar flow of the purest air over the workpiece.
• Phase 3: Coating Application and Overspray Containment When the operator is doing the paint work, the designed airflow is able to instantly catch the airborne paint particles (overspray). The continuous and directional air stream not only takes the overspray away from the operator and the part's surface but also directs it either downwards or across the cabin to the exhaust filters. Being confined inside the manufacturing spray booth is what makes it possible to keep the operator safe (OSHA compliance), to see well, and to minimize rework since the overspray does not fall back onto the freshly coated surface.
• Phase 4: Exhaust Filtration and Venting Air that contains overspray is taken through a series of multi-stage exhaust filters that are multi-stage. Usually, these are located on the floor or walls. Paint solid particulates are captured by these high-efficiency arrestor filters, and the air that is exhausted to the atmosphere is clean and in compliance with EPA and local environmental regulations. In this way, contamination of the outside environment is avoided, and the equipment of the exterior facility is protected.
• Phase 5: Cure Cycle for Accelerated Throughput. Some production coating booth models have the ability to start a cure or bake cycle after the coating has been applied. The booth's dampers then change their positions to stop air exhausting and instead keep the heated air circulating inside the enclosed cabin. As a result, the coating dries much faster because cross-linking and the solvent evaporation processes are considerably accelerated. This allows the production throughput to be increased so that the parts can be taken to the next stage of assembly faster.

Components

Components of Your Industrial Paint Booth

Each component in our industrial paint booth has been meticulously designed with durability, safety, and efficiency in mind. Our modular paint booth design makes it easy to customize the booth to suit your application-specific requirements in your paint process. Listed below is a comprehensive breakdown of the main components in our standard factory paint booth system.

Industry Application

Industry Application: Engineered for Performance and Compliance

Industrial​ paint booths are much more than just one of the machines in a factory; They are a strategic and pivotal element of the whole production process in your plant, carefully tailored to the challenges specific to your industry. Besides helping you stay compliant with environmental and safety regulations, they ensure high quality of finishing that will, in turn, positively influence your plant performance, product life, and finally your profits. We provide paint booths that can be seamlessly integrated into even the most complex manufacturing processes and underscore quality, accuracy, and compliance with the industry's highest standards.

Aerospace & Defense: As you perform in an industry where precision is not only desirable but mandated, our paint booth solutions create the highly regulated atmosphere necessary for the coating application of sensitive multi-layer materials with the highest level of accuracy.

• Compliance: Our paint booth solutions assist you in not just meeting but surpassing the stringent standards set for aerospace coatings such as NADCAP, MIL-SPEC, and NESHAP 6H.
• Precision: When you invest in our paint booth systems, you get the best airflow management and filtration systems, which provide the contaminant-free environment necessary for the perfect application of primers, topcoats, and radar-absorbent materials.
• Reliability: Our paint booth solutions are extremely durable, which is essential when manufacturing mission-critical assets.

Automotive & Commercial Vehicles: The production lines of automotive and commercial vehicle manufacturing that require a high throughput must have a spray booth that can consistently deliver Class-A finishes and support maximum production uptime.

• Reliability: Since our spray booths are intended for continuous operation around the clock, they consist of durable components and exposed points for quick servicing, and thus, they can maintain production without stopping.
• Procurement Focus: Choosing a highly efficient spray booth coupled with curing cycles can not only reduce your energy costs but also enable a fast return on your investment.
• Precision: Employing downdraft and semi-downdraft spray booths allows you to create perfect environments necessary for producing defect-free OEM-quality finishes.

Heavy Machinery & Agricultural Equipment: The issue of protecting very expensive capital equipment from being seized by corrosion is a serious one. For that, you need a heavy-duty industry paint booth that is both rugged and ample in size.

• Reliability: Besides the reinforcement of our booths, we also include material handling systems of very high capacity and interiors that are resistant to wear and tear. This contributes to the fact that the booth will have the ability for continuous heavy-duty usage, which is a characteristic of heavy industries.
• Compliance: Featuring heavy-capacity ventilation and filtration systems efficiently handling high volumes of VOCs and particulate matter resulting from heavy-duty protective coatings, our booths facilitate compliance with OSHA and EPA regulations.
• Procurement Focus: Due to their design as capital equipment, our booths can handle the heaviest and largest parts while ensuring the safety of both your capital equipment and ​workers.

Metal Fabrication & Structural Steel: The potential of a paint booth in a factory is extensive and quite substantial in job and fabrication shops where it is necessary to handle multiple part shapes and different coating requirements. This adaptability is the very basis of a paint booth's potential, which permits it to rapidly switch to new production needs without loss of quality and efficiency.

• Precision: This​ paint booth is designed to circulate the highest amount of air possible for a consistent paint thickness on various shapes and sizes, from very small weldments to large beams. It, therefore, allows for the elimination of problems like runs, sags, and non-uniform film thickness, thereby providing a uniform finish for all projects.
• Reliability: In order to make it possible for the use of high-solids primers and heavy industrial enamels, the paint booth is supplied with high-efficiency filters. This leads to less money spent due to the extended time between maintenance cycles; at the same time, the tough conditions ensure steady performance.
• Compliance: A paint booth is an extremely important piece of equipment in terms of a safe working environment. It works by capturing the overspray and solvent vapors efficiently. This way, a facility can be compliant and accountable to various regulatory ​requirements.

Buyer Recommendation

Buyer's Guide: Procuring Your Industrial Paint Booth

Industrial​ paint booth investment is one of the big financial decisions you make that will have a direct effect on the quality of production, the safety of operations, and compliance with regulations. In order to make the procurement process run smoothly and get a solution that is exactly right for your operation, here are some points that we recommend B2B buyers consider.

• Define Technical Specifications through Consultation: Before quoting, contact our technical sales team. It’s important to have a pre-purchase consultation that will help you set the right technical specifications for your industrial paint booth, for example, internal dimensions, airflow design (downdraft, crossdraft), number of filtration stages, heating/curing systems, etc. This way, the product you get will be in harmony with your parts, coatings, and production volume needs.
• Minimum Order Quantity (MOQ) and Scalability Clear Demarcation: The basic MOQ that we go by is one (1) complete industrial paint booth system. For whole facility upgrades or new production lines, we can provide project engineering and pricing for multiple units. Share with us your expansion plan for the long term so that the solution that we provide can be scaled up and integrated.
• Get a Thorough RFQ (Request for Quotation): To be given a spot-on quote, your RFQ must have the information, such as part size and weight, production throughput desired, the kind of coating applied (solvent or water-based), and also the footprint and utilities that are available in your facility. With this degree of detail, the engineering team will be able to come up with the most cost-effective and efficient factory paint booth.
• Make sure of your worldwide global export and logistics capabilities: Since we are seasoned exporters, we take care of the entire logistics chain. We supply very good packing for sea/air freight, do all the paperwork involved with customs (e.g., Bill of Lading, Certificate of Origin), and cover all international shipping standards. Please check out our track record of operations in your specific region.
• Ensure Compliance and Certifications: A major buying trust signal is compliance with safety and environmental standards. Our industrial paint booths are built to meet or even surpass the standards of NFPA 33, OSHA, and EPA 6H. Get the compliance certification documents that apply to your area so that you to be able to make a safer decision.
• Think about After-Sales Support and Access to Spare Parts: Total Cost of Ownership (TCO) is not only about the initial capital outlay. Go for a comprehensive after-sales support program that encompasses installation assistance, operator training, etc. We have a worldwide distribution network for critical spare parts such as filters, motors, and parts of control panels for minimal downtime.
• Talk about Bulk Supply and Project Management: Our project management team, besides coordinating the phased deliveries and installation schedules with your construction/retooling timelines for large-scale projects requiring multiple manufacturing spray booths, also gives you the benefit of gaining from preferential pricing and/or getting dedicated project ​oversight.

Product Comparison

Product Comparison: Choosing the Right Finishing Solution

Selecting the optimal finishing system is a critical investment decision. An industrial paint booth is engineered for specific high-performance outcomes, but it's important to understand how it compares to other common alternatives in the market. This comparison clarifies the trade-offs in performance, cost, and application suitability.
