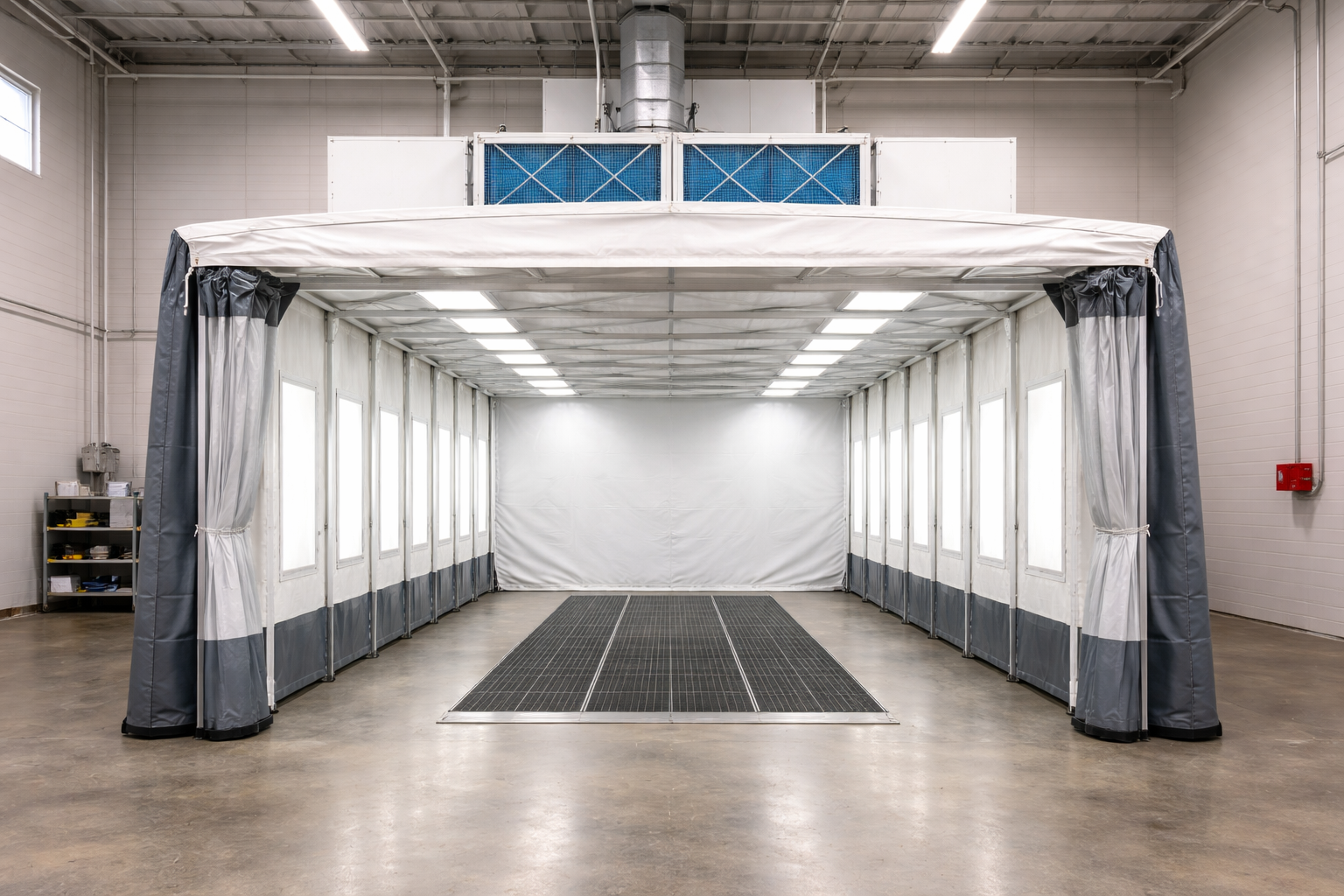

Introduction of Portable Retractable Paint Booth
A portable/retractable paint booth is a smart, compactly designed, flexible finishing solution that doesn't sacrifice quality. While traditional, fixed structures such as a crossdraft paint booth take up permanent floor space, our retractable spray booths will give you a fully functional, controlled environment for painting and coating applications only when you need it. This clever layout will help you recover your valuable production area for other essential activities as the booth collapses to a small fraction of its extended size in minutes. It is a combination of a fully equipped finishing station and a work area that is available upon request, thus directly addressing the spatial and operational limitations of modern manufacturing and repair facilities.
Each mobile paint booth comes with a strong, heavy-duty steel frame and fire-resistant, tear-proof translucent curtains to ensure long-lasting performance and a heavy-duty construction that meets the requirements of demanding industrial environments. This resilient structure, combined with the excellent overspray capture and containment, results in a high-performance finishing station without the detriment to space.
Besides, sophisticated ventilation and filtration of the system contribute to a cleaner and safer workplace, with workplace safety and health being the fundamental areas that result in greater operator efficiency and superior finish quality. For companies, the benefits are huge and immediate: decreased amount of capital investment in permanent installation, greatly enhanced workflow due to the availability of a booth for large or immovable pieces, compatibility with a sand blasting room, and unmatched versatility of plan adaptation to production changes.
Technical Specifications
Technical Specifications: Portable / Retractable Paint Booth
Our portable/retractable paint booth systems are engineered for durability, compliance, and operational flexibility. The following specifications detail the robust construction and high-performance components that define our mobile finishing solutions. Custom configurations are available to meet specific project requirements.
| Specification Category | Details |
|---|---|
| Model Series | RPB-1422, RPB-1628, RPB-1840, Custom Configurations |
| Frame Construction | Heavy-duty, corrosion-resistant galvanized steel or powder-coated structural steel tubing. |
| Canopy & Curtain Material | Fire-retardant, translucent, 22 oz. PVC-coated polyester fabric; heat-sealed seams for durability. |
| Standard Dimensions (W x L x H) | RPB-1422: 14' x 22' x 10' (4.2m x 6.7m x 3.0m) RPB-1628: 16' x 28' x 12' (4.8m x 8.5m x 3.6m) RPB-1840: 18' x 40' x 16' (5.5m x 12.2m x 4.8m) Custom sizes available upon request. |
| Retracted Footprint | Approximately 20-25% of the extended length. |
| Ventilation & Airflow | Airflow Rate: 12,500 - 28,000+ CFM Fan Motor: 3 HP - 10 HP TEFC, 3-Phase Motor Exhaust Plenum: Integrated rear plenum with direct-drive or belt-drive tubeaxial fan. |
| Filtration System | Intake: G-90 galvanized steel intake plenum with replaceable pre-filters. Exhaust: Multi-stage NESHAP 319H compliant filtration; 99.8% particulate capture efficiency. |
| Lighting & Electrical | Lighting: Class I, Division 2 (CID2) ETL-listed LED light fixtures (4-tube, 4-foot). Control Panel: NEMA 12-rated control panel with motor starter, light switches, and airflow monitoring. Power Requirement: 208/230/460V, 3-Phase, 60Hz (other voltages available). |
| Coating Compatibility | Suitable for use with waterborne and solvent-based paints, primers, and industrial coatings. |
Working Principle
How Our Retractable Paint Booths Operate
A portable or retractable paint booth is a system designed to deliver a compliant paint finishing environment on demand, achieved through the integration of a robust and retractable structure with a high-performance ventilation and filtration system. The fundamental principle is to deliver a controlled, negative-pressure paint finishing environment that is contained and then retractable to recover floor space.
The operational cycle has been designed to ensure maximum efficiency and safety, especially in industrial settings.

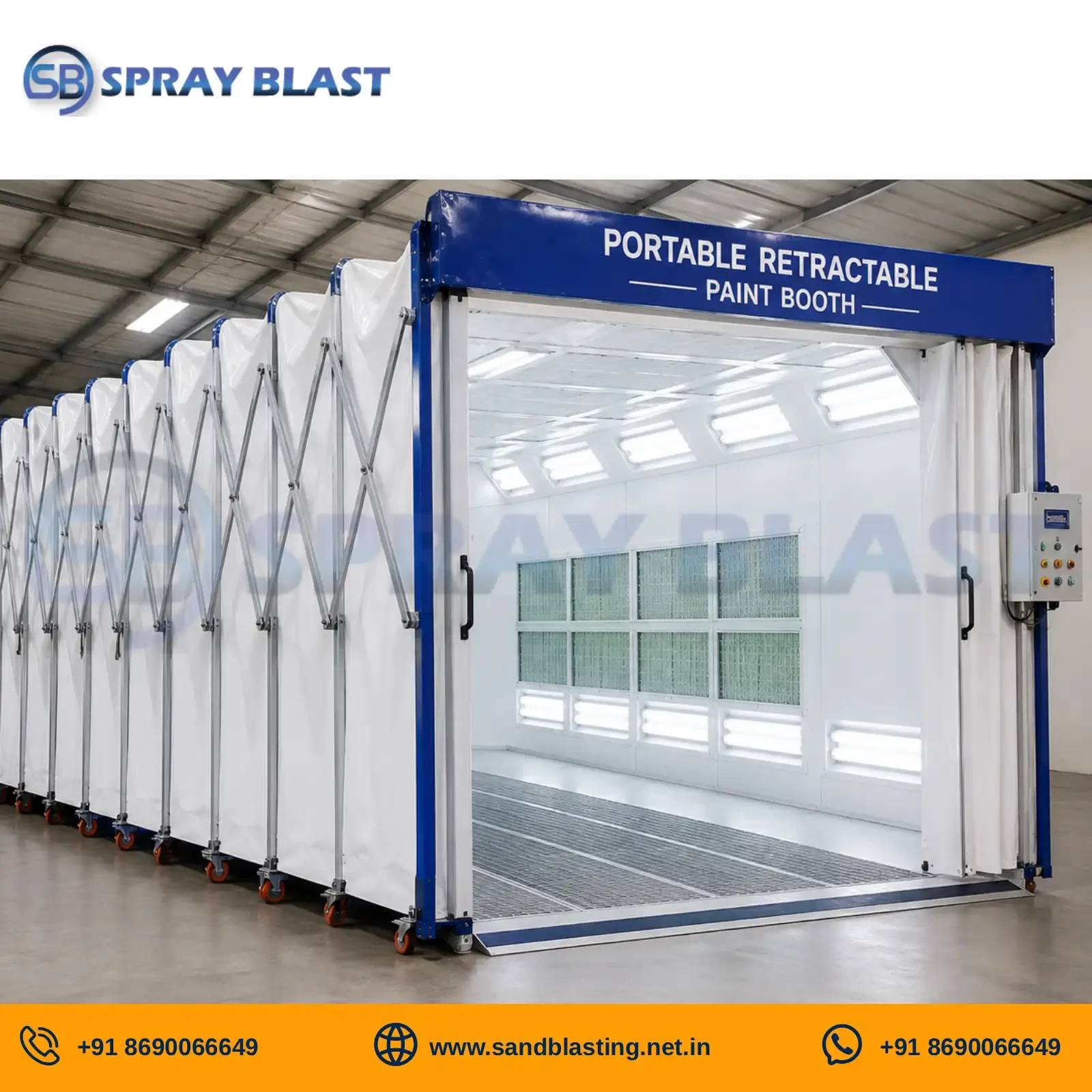

- Deployment and Enclosure: The booth consists of a concertina-type steel frame that is attached to floor-mounted rails or heavy-duty casters, so that it can be moved around the workspace. At the same time, it also unfolds its walls and ceiling made of tough, fire-resistant PVC, which guarantees a safe and fast enclosure of the working area, thus providing an entirely enclosed and sealed environment around the workpiece, which eliminates any chance of paint or other contaminants escaping into the rest of the facility.
- Ventilation and Airflow Dynamics: Once the fan and motor of high power are switched on, a negative-pressure atmosphere is formed inside the booth. Uncontaminated ambient air passes through the filtration of the door or the front panels and enters the booth, thus generating a regular laminar cross airflow that proceeds through the booth longitudinally from the entrance towards the exhaust plenum located at the rear.
- Overspray and Fume Capture: The aircraft on which the paint is to be applied, the operator, the help of the work-air unit, coated with engineered, the flow method, paint, solid, and fumes (VOCs) capturing method, the exhaust method, the distribution method that includes air removal from the underspray zone, including fumes.
-
Multi-Stage Air Filtration: The contaminated air enters through the rear exhaust plenum, and its passage through a multi-stage filtration system is ensured.
- Primary Filtration: The paint air is pre-filtered through the pre-filter, like paint stop filters, capturing the majority of large paint particles.
- Secondary Filtration: The final filter will trap even smaller particles, making sure that the quality of air discharging from the system meets the environmental standards.
- Optional Carbon Filtration: An activated carbon filter may also be provided if the system has to handle a large amount of volatile organic compounds, to adsorb noxious fumes from solvent-based paints before they are released into the atmosphere.
-
Retraction and Space Optimization: After the completion of the finishing and flash-off cycles, the ventilation system is turned off. The collapsible paint booth can then be retracted back to a compact position with ease, thereby optimizing the floor space, which can then be utilized for other critical operations, including welding, assembling, etc., thus illustrating the concept of lean manufacturing.
Components
Components of Your Portable / Retractable Paint Booth
Every component of our portable/retractable paint booth is engineered for durability, safety, and operational efficiency. The modular design ensures easy setup, reliable performance, and straightforward maintenance for demanding industrial finishing applications.
| Component Name | Description | Function | Material | Dimensions (Typical) | Weight (Approx.) | Color |
|---|---|---|---|---|---|---|
| Retractable Steel Frame | A robust, concertina-style framework that forms the primary structure of the portable paint booth. | Provides structural integrity and allows for the expansion and retraction of the booth, saving valuable floor space. | Galvanized or Powder-Coated Steel Tubing | Varies by model (e.g., 2" x 2" tubing) | 300-800 kg (Varies by size) | Safety Yellow / Gray |
| Fire-Retardant PVC Curtains | Heavy-duty, translucent vinyl curtains enclose the workspace, creating a contained environment. | Contains paint overspray, dust, and fumes while allowing ambient light to penetrate the workspace. | 0.5mm Fire-Retardant PVC (NFPA 701 compliant) | Custom-fit to frame size | 50-150 kg | Translucent White / Clear |
| Exhaust Filtration Plenum | The rear section of the booth houses the primary and secondary exhaust filters. | Captures paint overspray and particulates from the air stream before it is exhausted from the workspace. | Galvanized Steel Sheeting | Matches booth width and height (e.g., 4m W x 2.5m H x 0.5m D) | 100-250 kg | Galvanized Silver |
| High-Efficiency Exhaust Fan | A tube-axial or centrifugal fan engineered for high-volume air movement against the static pressure of the filters. | Creates negative pressure within the booth, drawing contaminated air through the filtration system and ensuring a clean working environment. | Spark-proof Cast Aluminum Impeller, Steel Housing | 24" - 36" Diameter | 50-120 kg | Blue / Gray |
| Integrated Control Panel | A centralized NEMA-rated enclosure for all electrical controls of the portable/retractable paint booth. | Provides a single point of control for the fan motor, lighting, and safety interlocks. | NEMA 12 Steel Enclosure | 16" x 12" x 6" | 10 kg | Gray |
| Explosion-Proof LED Lighting | Class I, Division 1-rated light fixtures mounted within the booth's ceiling or walls. | Delivers bright, color-correct illumination for high-quality finishing work while ensuring safety in a volatile atmosphere. | Die-cast Aluminum Housing, Tempered Glass | 4-foot linear fixtures | 8 kg per fixture | Silver / Gray |
| Heavy-Duty Swivel Casters | Industrial-grade locking casters attached to the base of the retractable frame. | Enables easy mobility and repositioning of the entire booth structure on the workshop floor. | Polyurethane on Steel | 6" - 8" Diameter | 5 kg per caster | Black / Red |
| Intake Filter Bank | A set of replaceable filters located at the air inlet (typically the front opening) of the booth. | Prevents dust and contaminants from the surrounding shop environment from entering the clean spray area. | Polyester Fiber Media in Cardboard Frame | 20" x 20" x 2" | <1 kg per filter | White / Blue |
Industry Application of Portable Paint Booth
Industry Applications: Engineered for Compliance, Reliability, and Precision
Our transportable and retractable paint booth is not just a temporary structure, but a vital asset designed to meet the critical demands of modern industrial finishing processes. Our paint booth has been designed for facilities that require flexibility without sacrificing quality and safety, providing a reliable and accurate solution for a variety of critical processes.
Streamlining Procurement and Maximizing Asset Utilization
To procurement and operations managers, a portable paint booth represents a significant shift away from conventional, capital-intensive facility adaptations.
- Reduced Capital Expenditure: Eliminate high costs, long permitting cycles, and construction downtime associated with building a permanent paint booth. Our retractable spray booth has equipment status, which can offer more favorable depreciation options.
- Increased Floorspace Flexibility: Regain critical production floorspace during periods when finishing activities are not required. The collapsible design minimizes floor space occupied by our retractable paint booth, allowing for multi-function work areas.
- Reduced Total Cost of Ownership: By allowing on-site finishing of large or immovable items, you avoid the high cost and logistical complexities associated with transporting workpieces to a dedicated paint facility, thus reducing project completion times and transportation-related risks.
Engineered for Regulatory Compliance and Workplace Safety
Compliance with environmental and safety regulations is critical, and our booths are designed to aid you in achieving compliance with critical regulations, thereby providing a safe and secure environment for your employees and your facility.
- Air Quality and Emissions Control: The multi-stage filtration system installed in our booths helps capture overspray and filter out hazardous VOCs and HAPs, ensuring compliance with EPA 6H regulations.
- OSHA and NFPA Standards: Our booths are made from fire-retardant and anti-static PVC vinyl and a grounded steel frame, providing a safe working environment inside our retractable spray booth. This helps facilities comply with regulations such as NFPA 33, ensuring a safe environment for applying sprays.
- Contaminant Containment: Our fully enclosed booths prevent overspray and fumes from spreading to other areas, providing a safe and clean environment for your facility and its employees.
Uncompromising Reliability for Demanding Production Schedules
In an industrial setting, uptime is critical, and our mobile paint booth has been designed with industrial-grade materials to give our users reliable performance on a daily basis.
- Heavy-Duty Construction: Our paint booth has a structural steel frame and tear-resistant, high-durability curtains, providing a means to withstand the harsh conditions often present in an industrial environment, such as incidental contact with equipment and parts.
- Dependable Systems: Industrial-grade ventilation fans and media are specified for our paint booth, providing a means for reliable and optimal performance.
- Operational Continuity: On-site finishing and repair of large machinery, aerospace parts, and vehicles can be done without disrupting the main production line, providing a means to keep critical assets operational and available when needed.
Achieving Precision and First-Pass Quality
For a superior finish, a controlled environment is required. This portable/retractable paint booth can turn the open factory floor into a contamination-free finishing station.
- Contamination Control: The closed environment, which can be positively pressurized, protects the wet finish from airborne dust, debris, and insects settling on the surface, thus providing a flawless Class A finish.
- Optimized Application Conditions: This system provides a dedicated space with consistent airflow and integrated lighting options to allow the coating application process to be more accurate.
- Versatility of Use: From the precise coating integrity of aerospace and defense components to the large manufacturing and heavy equipment refurbishing industries, the temporary spray booth provides the required controlled environment to meet the stringent quality specifications.
Buyer Recommendation
Buyer's Guide: Procuring Your Portable / Retractable Paint Booth
Investing in portable/retractable paint booth equipment is a big decision that requires you to consider the technical side of things, the reputation of the supplier, and the value of the product in the long run. Follow these tips to help you go through the purchasing process and get the product that will best serve your operations.
- Determine Your Size and Customization Requirements: It is crucial to know your largest workpiece size and available floor space before asking for a quote. Share your volume operating dimensions (length x width x height) with our engineers. We are ready to help you get retractable spray booths that fit your processes perfectly, whether you are finishing small parts or coating large vehicles or equipment.
- Please Give Priority to Airflow and Filtration: It is finishing with ventilation and proper filtration that produces the best results. Tell us what kind of finishing you will be doing, e.g., solvent-based paints, powder coating, sanding, so that we can suggest the right fan motor (CFM rating) and multi-stage filtration system. Ask about different filter types, their MERV ratings, and how often they need to be replaced so that you can estimate the total cost of ownership.
- Ensure the Product is Fully Compliant and Certified: Safety and compliance cannot be compromised when it comes to industrial use. Besides ensuring mobile paint booth compliance with OSHA and NFPA safety standards, we also provide CE marking and other regional certifications documentation upon international clients' request.
- Ask for a Thorough RFQ and Indicate Lead Time: Send us an official Request for Quotation (RFQ) that specifies your technical requirements, quantity, and delivery address. Our quotations clearly show the breakdown of costs of booth structure, ventilation unit, control panel, and optional features. We will also present a definite production and shipping lead time.
- MOQ and Large Supply: Our regular MOQ is one (1) unit, allowing you to order one single collapsible paint booth to try/use for a particular project. For distributors or big manufacturing sites requiring several units, we can provide tiered pricing and production scheduling tailored to your deployment timeline.
- Worldwide Export and Logistics Assistance: Being experienced global exporters, we understand the complexities of international shipping and can ship to any major port worldwide and handle all the necessary export documentation. We also can work with various Incoterms (e.g., FOB, CIF, DDP) that suit your international procurement needs.
- Ask for Warranty and After-Sales Service Details: Having a strong warranty is critical for trusting product quality. Our portable/retractable paint booth systems are backed with a comprehensive manufacturer's warranty that covers structural integrity and major components. We carry a full range of spare parts, including filters, motors, and PVC curtains, for your convenience and assurance of continual operations.
- Look at Case Studies and Technical Documents: We provide you with case studies related to your business and installation references. Access to technical manuals, assembly instructions, and operational guidelines will help your staff work safely and effectively with the temporary spray booth right from day one.
Product Comparison
Product Comparison: Retractable Booths vs. Alternatives
Choosing the right finishing environment is a critical decision impacting capital expenditure, operational efficiency, and final product quality. A portable/retractable paint booth offers a unique balance of performance and flexibility not found in other solutions. The table below compares its capabilities against traditional fixed booths, inflatable alternatives, and open-air setups.
| Feature / Aspect | Portable / Retractable Paint Booth | Permanent / Fixed Booth | Inflatable Booth | Open-Air / Tarped Area |
|---|---|---|---|---|
| Price (Capital Expenditure) | Moderate investment. Offers significant ROI through operational flexibility and space optimization without major construction costs. | High to very high. Requires significant capital, facility modification, and permitting. | Low. Minimal upfront cost, but higher long-term replacement and repair costs. | Very low. Cost is limited to tarps and fans, but incurs hidden costs from rework, contamination, and safety risks. |
| Durability & Lifespan | High. Built with industrial-grade steel frames and heavy-duty, fire-retardant PVC curtains for long service life in demanding environments. | Very High. Constructed from heavy-gauge, powder-coated steel for decades of continuous use. | Low. Susceptible to punctures, tears, and degradation from UV and chemical exposure. Not suitable for heavy industrial use. | Not applicable. A temporary setup with no inherent structural durability. |
| Key Features | Retractable design for space recovery, mobility for on-site work, modular construction, integrated filtration, and lighting. | Advanced climate control (heating/curing cycles), integrated mixing rooms, superior lighting, and automated conveyor options. | Rapid inflation/deflation, lightweight for easy transport, and self-contained in a bag. | Unrestricted size and shape. Lacks any professional features for safety or quality control. |
| Performance (Containment & Airflow) | Excellent. Provides a controlled environment with directed airflow, effective overspray capture, and particulate containment, aiding in regulatory compliance. | Superior. Engineered for optimal laminar or cross-draft airflow, ensuring the highest quality finish and operator safety. | Moderate. Airflow can be turbulent. Containment is good, but it may not meet strict industrial standards due to potential leaks. | Poor. Zero containment of overspray and VOCs. High risk of dust and debris contaminating the finish. Fails to meet safety and environmental regulations. |
| Target Users & Applications | Facilities with fluctuating workflows, large/awkward workpiece finishing (e.g., aerospace, heavy machinery), on-site industrial repairs, and workshops needing multi-use floor space. | High-volume manufacturing, dedicated automotive refinishing centers, and operations with consistent, standardized finishing processes. | Mobile smart repair technicians, hobbyists, or very infrequent, light-duty applications. | Not recommended for professional finishing. May be used for non-critical priming or prep work in well-ventilated areas, but carries significant risk. |
