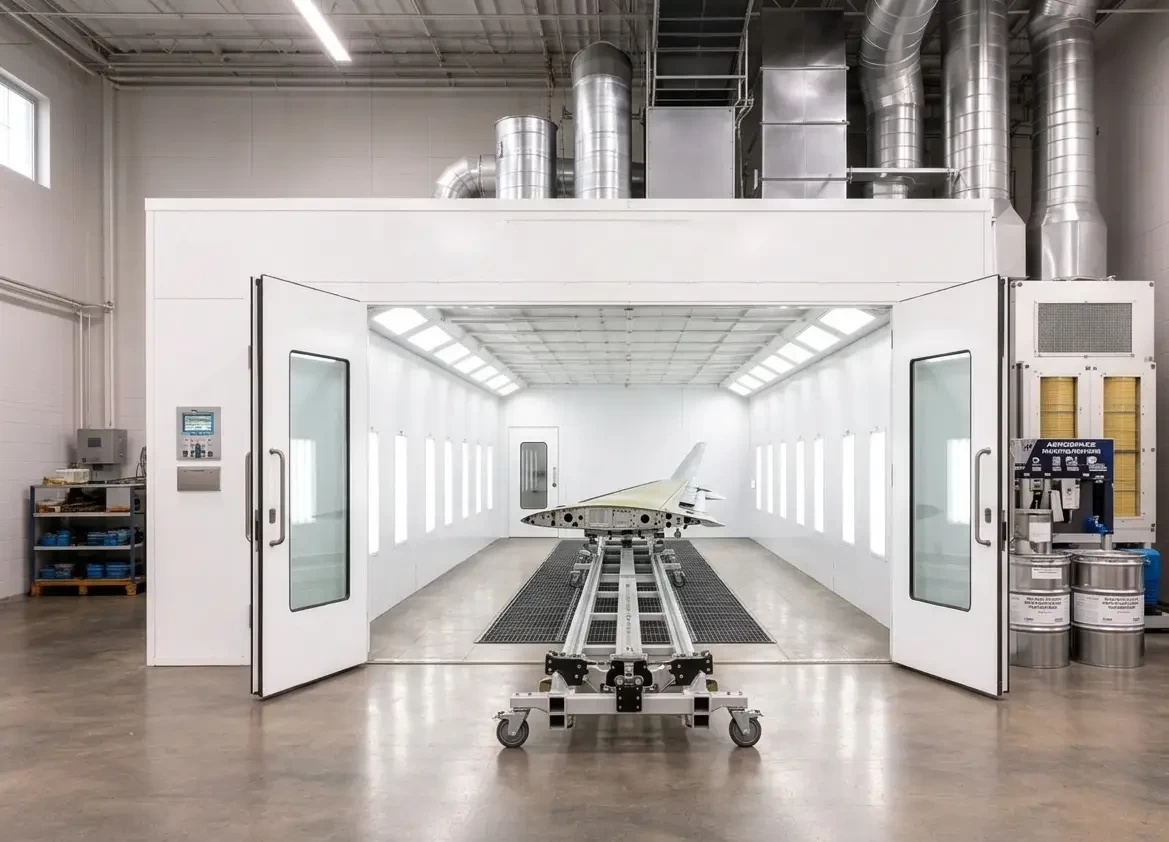

Aerospace Paint Booth

Introduction of Aerospace Paint Booth

An aerospace paint booth is more than just a compartment for paint application; it is a meticulously engineered and climate-controlled environment specifically designed to apply specialized paint coatings on aircraft, components, and military equipment. Our paint booths are designed to surpass the most stringent industry standards and provide exceptional performance by creating a complex airflow system, multi-stage filtration, and precise control over temperature and humidity. This ensures a flawless and contaminant-free finish on the paint application, which is necessary for the best adhesion, durability, and maintenance of aerodynamic properties in aerospace coatings. What differentiates us from the competition is our seamless integration of robust control systems with energy-efficient technology to provide a perfectly controlled environment to ensure repeatable and compliant results in every finishing cycle.

The decision to invest in a high-performance aerospace paint booth is a strategic business decision that has a direct impact on the efficiency, regulatory compliance, and quality of products. Our crossdraft paint booth is built to last with heavy-gauge, galvanized steel and industrial-grade components to provide exceptional durability and long service life in the most demanding MRO and OEM environments. The value proposition to the buyer is more than just a paint booth; it’s a comprehensive and turn-key solution to provide a flawless finish with minimum overspray, material waste, and curing time. Our aircraft spray booths provide a clear and tangible ROI by optimizing the finishing process and providing the assurance and confidence to meet the most stringent aerospace and defense industry quality standards.

Technical Specifications of Aerospace Paint Booth

Our aerospace paint booth systems are designed with a clear focus on precision, strict compliance with industry standards, and outstanding performance. In order to provide you with a clear idea about the specifications and capabilities of our industrial paint booth, the table below presents the typical specifications for our modular and custom-designed booths. These booths are designed to be versatile and scalable, with the ability to accommodate everything from small individual components to large fuselages.

Working Principle of Aerospace Paint Booth

Aerospace paint booths are not ordinary paint booths. They are a representation of a very sophisticated multi-stage system that is accurately designed to provide an atmosphere that is suitable not only for the application but also for the curing of high-performance paints and coatings used on aircraft, satellites, and defense-related products. This is an advanced technological process that aims to achieve a flawless finish, ensure the health and safety of those working with it, and provide protection to the environment.

The different phases of operation are delineated and largely automated as follows:

• Air Intake and Filtration: Through a dedicated Air Makeup Unit (AMU) and axial flow fan, fresh, clean air that is free from contaminants is taken into the booth. The air is passed through several layers of filtration, including pre-filters and highly efficient ceiling diffusion media. These filters remove dust, oils, and other fine particulates down to the micron level, which is essential for preventing microscopic surface flaws on aerodynamically critical surfaces.
• Pressurization and Airflow Management: The filtered air is responsible for pressurizing the environment inside the aircraft spray booth positively so that no unfiltered external air can enter when the doors are open. To systematically direct air over the component, resulting in even coating application and to carry away from the part and the technician the overspray, a downdraft or cross-draft air flow pattern is created.
• Climate Control: Temperature and humidity controls that are built-in work together to keep the environment at a constant level, the environment that has been set in advance, and is ideal for the coating being used. Such a level of accuracy is indispensable for aerospace primers and topcoats as it allows them to maintain the correct viscosity, adhere well, and have appropriate flash-off times, no matter the external weather conditions.
• Coating Application: It is in such a regulated environment that operators manually apply the coating. The evenly distributed, laminar flow of air is effective not only in conveying the contamination-laden air immediately towards the exhaust filters but also in capturing the overspray right where it is generated. This leads to higher transfer efficiency, less wastage of materials, and a cleaner and safer operator's workspace.
• Exhaust and VOC Abatement: The air containing overspray is drawn via the exhaust system through various stages of filtration, which, for downdraft configurations, is usually located in a floor pit. These prefilters are responsible for trapping the solid particles of paint. Further, the released air is treated to comply with, or even surpass, the standards set by EPA and NESHAP 6H for emissions of Volatile Organic Compounds (VOCs).
• Cure and Bake Cycle: Subsequent to coating, the aerospace paint booth switches its mode to a cure or bake cycle. The system makes use of heated air, literally on demand, at the set temperature levels to facilitate the cross-linking of the coating. This operation results in a tough, chemically resistant coat that meets the highly demanding specifications of aerospace and defense, and is completed in significantly less time than would be needed for natural ​‍​‌‍​‍‌​‍​‌‍​‍‌drying.

Key Components of Our Aerospace Paint Booth

Each and every component within our aerospace paint booth has been meticulously designed to provide the best possible performance, long-lasting durability, and complete regulatory compliance. Our paint booth has been designed to be modular in nature, allowing for flexibility and customization to specifically suit the layout and configuration of your facility and the exact size and configuration of your components.

The following is a complete and comprehensive description of the high-performance components:

Industry Application of Aerospace & Defense Finishing

An aerospace paint booth is a critical asset for any organization within the industry, specifically designed to meet the stringent requirements necessary for the aviation, space exploration, and defense industries. The procurement and operation of these systems are governed by stringent requirements for precision, complete regulatory compliance, and absolute dependability, where failure is simply not an option. Our portable retractable paint booth is designed as a complete solution to address these core industry requirements.

Engineered for Mission-Critical Compliance

In the aerospace and defense industry, compliance is not just important—it is vital. Our aerospace paint booth solutions are carefully engineered from the ground up to meet or exceed even the most stringent worldwide and regional industry standards. This attention to detail will assure you that your operations are audit-ready and will remain so in light of ever-changing regulations in the future.

• NADCAP & AS9100: The booth environment is specifically designed to support the stringent process control requirements for NADCAP accreditation and AS9100 quality management systems. This will provide you with a solid base for quality assurance.
• Environmental Regulations: Our booth solutions are specifically configured to meet or exceed NESHAP 6H, EPA requirements, and other industry standards for volatile organic compound (VOC) abatement regulations, protecting both your workforce and the environment.
• Safety Standards: Compliance with NFPA 33, OSHA, and ATEX standards for fire suppression systems, ventilation systems, and safe handling of hazardous materials is a core principle driving every aspect of our booth design.

Precision Environments for Flawless Application

Expanded: The performance and longevity of an aircraft are directly related to the quality of the coating products that protect and beautify the surface. Our aviation paint booth products are intended to provide a consistent and contaminant-free environment that is critical to the precise application of high-performance primers, topcoats, and specialty coatings at the micron level.

• Contamination Control: Our approach to contamination control is based on multi-stage filtration, including HEPA, and precise pressurization and airflow control. This approach creates an environment that is effectively near-cleanroom quality, minimizing foreign object debris (FOD) to provide a flawless and mirror-like finish to the coated surface.
• Climate Control: We have incorporated fully integrated controls to provide precise control over temperature and humidity. This is critical to provide an ideal environment for the coating process, whether it is atomization, application, or curing. This control is not affected by ambient conditions and is critical to achieve the desired adhesion and performance properties of high-performance, multi-component coatings.
• Uniform Airflow: We have developed a range of airflow patterns through computational analysis to ensure uniform and non-turbulent air distribution over complex shapes and surfaces, including fuselage, wings, and control surfaces. This is critical to eliminate overspray and ensure consistent coating film thickness over all surfaces.

Uncompromising Reliability for Maximum Uptime

Downtime in an aerospace production line results in significant financial losses and logistical headaches. Every component in our defense coating booth has been selected for maximum durability and lifespan. This ensures the maximum possible uptime in your critical finishing operations.

• Heavy-Duty Construction: Our booths feature heavy-gauge galvanized G90 steel and structural supports. These materials provide the strength needed to operate our booths for decades in the toughest industrial environments.
• Redundant Systems: Because we know that single points of failure can be catastrophic in critical finishing operations, systems like air makeup units and exhaust fans can be provided with redundant components.
• Predictive Maintenance: With integration into advanced control systems, we can provide predictive maintenance schedules for our booths. This ensures maximum uptime by monitoring filter condition, motor performance, and burner efficiency.

A Strategic Procurement Decision

The purchase of a large-scale aerospace booth is a significant capital investment. To assist you in maximizing this investment, we will work closely with your procurement team to provide you with a solution that will result in the lowest total cost of ownership and the highest return on investment.

• Energy Efficiency: Our solution includes the installation of Variable Frequency Drives on all motors, high-efficiency curing modes, and sophisticated control algorithms. This enables us to minimize the energy consumption of the system in both active and idle states, thus providing you with significant cost savings during the lifecycle of the system.
• Turnkey Project Management: Our solution will cover the whole lifecycle of the project, from the initial stages of design and engineering to installation, commissioning, and finally training. This will serve as a single-point interface for you, thus making the procurement process easy and efficient.
• Global Support & Export Readiness: The product is specifically designed to function flawlessly on a global scale and is completely export-ready. It is built to meet all global electrical standards and is pre-equipped with a highly efficient logistics structure to deal with export requirements.

Buyer Recommendation

Procurement Guide: Investing in Your Aerospace Paint Booth

Investing in a high-quality aerospace paint booth is a decision that should not be taken lightly, amidst all the other factors such as technology, logistics, and compliance with regulations. As a result, we have made a list of the best practices that we suggest our partners who are into B2B follow to help them procure the right product and increase their profits:

• Create a comprehensive Request for Quotation (RFQ): This will be the comprehensive blueprint for the entire project. Besides the basic parameters, other information to be included will cover the type of aircraft series to be handled (for instance, will the facility service business planes, wide-body planes, military planes, etc.), the precise requirements to be met in the case of NESHAP 319, the desired environmental control parameters (for instance, temperature and humidity control within a certain range, such as ±°C and ±% RH, etc.), and the new system's integration with the existing MRO infrastructure (for instance, the overhead crane system, etc.). The more detail in your RFQ, the more you’ll get proposals that are accurate and comparable for your aircraft spray booth.
• Focus on Verifying Regulatory & Industry Compliance: Getting assurances that they have in writing that key standards such as NFPA 33, OSHA, and UL/ETL listings for all electrical components are complied with. If you are in defense and commercial aviation, this is a non-negotiable trust cue. A reputable supplier will readily provide documentation certifying their aviation paint booth designs meet or exceed these critical safety and environmental mandates.
• Total Cost of Ownership (TCO): While the price may appear attractive on paper, it is important to consider the overall cost of operation as well. This includes considerations for energy consumption (ask about variable frequency drives, VFDs, and heat recovery units), filter replacement schedules, and preventative maintenance schedules. A lower TCO means better engineering and equates to a more profitable asset.
• Minimum Order Quantity (MOQ): The minimum order quantity for our systems is one (1) unit. Due to the highly customized nature of our systems, our minimum order quantity is one complete aerospace paint booth. Each system is engineered to order to ensure the final product meets your specific operating footprint and aircraft finishing requirements.
• Confirm Global Exporter Capabilities: Ensure that the exporter has experience in global exporting. We handle the entire process from the specialized crating and international freight to on-site supervision and commissioning. A proven track record of successful international deployments, including navigating customs and providing local installation support, is a critical procurement checkpoint.
• Request Aerospace-Specific Case Studies: A supplier's experience is their best reference. Ask for a portfolio of completed projects for clients in commercial aviation, MRO, and defense sectors. This provides a critical trust signal and demonstrates their capability in delivering complex, large-scale aerospace booth solutions on time and on budget.
• Discuss Bulk Supply for Facility-wide Outfitting: For a large-scale MRO facility construction or fleet-wide upgrades, ask about our bulk supply and phased project rollouts capabilities. We can develop standardized defense coating booth designs across multiple sites to ensure consistent quality, simplified maintenance, and streamlined operator training.

Product Comparison

Aerospace Paint Booth: A Comparative Analysis

Choosing the right finishing environment is critical for meeting stringent aerospace and defense specifications. A purpose-built aerospace paint booth provides unparalleled control and compliance, but it's essential to understand how it compares to other potential solutions. This analysis breaks down the key differences to inform your investment decision.
