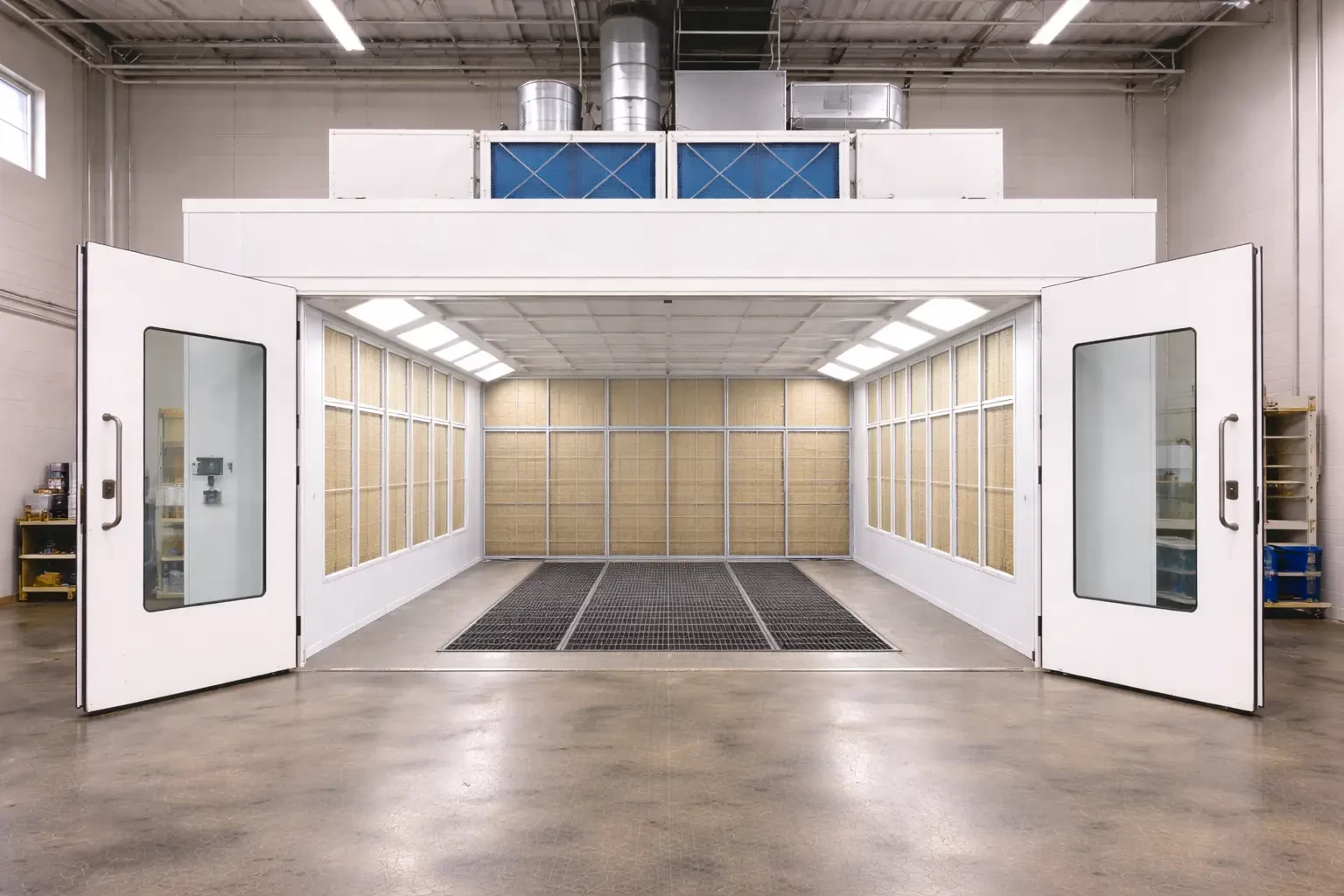

Introduction of High-Performance Wood Finishing Paint Booth
To get a professional, perfectly smooth finish on the wood pieces, you must work in a clean, controlled environment. Our industrial wooden finishing paint booth is a perfect solution as it delivers a hygienic and well-ventilated environment for the application of lacquers, stains, and topcoats. Being suitable for high-volume woodworking activities, this booth will help you get quality results constantly, whether you run a big furniture spraying booth or a small cabinet paint booth. Besides protecting your products from dust and particles by separating the spray area, you will also be protecting your staff and adhering to very strict regulations on air quality and safety.
Made of very strong mild steel and assembled using highly precise paneling, our wood finishing paint booth is designed for tough industrial use and is capable of lasting a very long time. What sets us apart from others is our state-of-the-art downdraft airflow system, which not only helps in creating the cleanest possible air environment around the workpiece but also makes it a perfect lacquer spray booth to get glass-smooth finishes. When used in combination with the energy-saving curing technology, this high level of contamination control is a major cause of less rework and faster production cycles. A purchase of our wood finishing booth will result in your production going up, costs of operation coming down, and the quality of your product going up, thus giving your brand that quality image.
Technical Specifications for Wood Finishing Paint Booths
Our wood finishing paint booth series is engineered for superior performance, safety, and durability. The specifications below detail the construction and operational parameters of our standard models, designed to meet the rigorous demands of professional woodworking and furniture finishing applications. Custom dimensions and configurations are available upon request.
| Specification | Model WFB-3000 | Model WFB-5000 | Model WFB-7000 (Custom) |
|---|---|---|---|
| Airflow Design | Downdraft / Crossdraft | Downdraft / Crossdraft | Downdraft / Crossdraft / Side-Draft |
| Nominal Airflow | 12,000 CFM | 18,000 CFM | 24,000+ CFM |
| Filtration System | 2-Stage: Pre-filter & Exhaust | 3-Stage: Pre-filter, Ceiling, Exhaust | 3-Stage High-Efficiency System |
| Exhaust Filter Eff. | 99.8% Particulate Capture | 99.85% Particulate Capture | >99.9% Particulate Capture |
| Lighting | 10 x T8 LED Fixtures (Class I, Div 2) | 16 x T8 LED Fixtures (Class I, Div 2) | 24 x T8 LED Fixtures (Class I, Div 2) |
| Luminance | ~100-125 foot-candles | ~125-150 foot-candles | ~150+ foot-candles |
| Control Panel | NEMA 12 Rated, Motor Starter, Light Ctrls | NEMA 12 Rated, VFD, Magnehelic Gauge | PLC Touchscreen, VFD, Curing Cycle |
| Construction Material | 18-Gauge Mild Steel | 18-Gauge Mild Steel, Powder-Coated | 18-Gauge Mild Steel, Powder-Coated |
| Internal Dimensions | 14' W x 9' H x 24' L | 16' W x 10' H x 28' L | Custom Sizing Available |
| External Dimensions | 14'4" W x 9'4" H x 27' L | 16'4" W x 10'4" H x 31' L | Based on Custom Internal Dimensions |
| Main Door Type | Bi-Fold or Tri-Fold | Bi-Fold or Tri-Fold | Bi-Fold, Tri-Fold, or Roll-Up |
| Personnel Door | 1 (with observation window) | 1 (with observation window) | 1-2 (with observation window) |
| Power Requirements | 208/230/460V, 3-Phase, 60Hz | 208/230/460V, 3-Phase, 60Hz | 208/230/460/575V, 3-Phase, 60Hz |
| Coating Compatibility | Lacquers, Varnishes, Stains, Sealers, Water-based & Solvent-based Wood Coatings | All standard wood coatings, including high-solids and conversion varnishes | All wood coatings are compatible with automated finishing line integration |
Working Principle of a Wood Finishing Paint Booth
A wood finishing paint booth works by producing a highly controlled environment. By doing this, it is guaranteed that the space where high-quality coatings are applied is free of contaminants, while at the same time, the hazardous overspray and volatile organic compounds (VOCs) are safely managed. In fact, the overall setup of the process is such that it can be repeated, it is safe, and it can be carried out efficiently for commercial and industrial purposes. The time duration during which the whole operation is carried out can be divided into 4 major stages:
- Intake of Air and Pressurization: The air, which is clean and at room temperature, is sucked into the booth, most of the time with the help of a unit that is integrated into the booth and is called the air makeup unit (AMU). It first passes through the pre-filters, which are used to filter out the particles that are larger in size. Then, the air is passed through the ceiling filters, which are of high efficiency, and this creates an envelope of clean air that slowly drops on the workpiece. By doing this, a positive pressure environment is created, which helps in the prevention of the entry of dust and contaminants from the surrounding shop into the cabinet paint booth, which ultimately causes the finish to be compromised.
- Precise Coating Application: Within the enclosed, well-lit area, the operator uses spray equipment to apply coatings such as lacquer, stain, or varnish. The carefully managed, non-turbulent airflow, usually in the form of a downdraft or semi-downdraft paint booth, helps in the even application of the coating and, at the same time, minimizes the overspray bounce-back, which results in better transfer efficiency, reducing the waste of the coating material in any wood coating booth.
- Collection of Overspray and Exhaust: While spraying, the air current takes the excess paint particles (paint mist) away from the work surface and the breathing zone of the operator. This polluted air is drawn into an exhaust plenum, generally located in the floor or a rear wall. It is then sent through a multi-stage exhaust filtration system (e.g., paint arrestor prefilter), which captures the solid particulates before the clean air is safely vented outside the facility. In this way, the operation is in line with EPA and OSHA regulations.
- Fast Travel Curing and Drying: In the case of industrial furniture spray booth models, after application, it is possible to change over to a cure or bake cycle. The booth is made airtight, and the AMU heats the air that is being recirculated to a predetermined temperature. Therefore, this greatly increases the rate of the cross-linking and finishing drying process, thereby reducing production bottlenecks, and the surface is hardened, and finished wood components can be handled and assembled more quickly.
Key Components of Your Wood Finishing Paint Booth
All aspects of our wood finishing paint booth are designed to be long-lasting, safe, and effective. Learning about the purpose and composition of all parts of our paint booth helps to illustrate the quality of our product.
| Component Name | Description | Function | Material | Typical Dimensions | Approx. Weight | Color |
|---|---|---|---|---|---|---|
| Booth Cabin Panels | Double-wall, insulated panels that form the main enclosure. Precision-punched for simple nut-and-bolt assembly. | Creates a sealed, controlled environment to contain overspray, prevent contamination, and ensure a flawless finish. | 18-gauge Mild steel with high-density rock wool insulation. | Varies by model. Standard panel: 24" W x 9' H. | 4,500 lbs (for 26' booth) | White powder-coated interior, Gray exterior. |
| Exhaust Fan & Motor | High-efficiency, non-sparking axial flow fan assembly paired with a TEFC (Totally Enclosed, Fan-Cooled) motor. | Generates consistent negative pressure and airflow, safely exhausting solvent fumes and overspray through the filtration system. | Cast aluminum, non-sparking fan blades; TEFC 3-phase motor. | 34" diameter fan; 5 HP motor. | 350 lbs | Industrial Gray |
| Filtration System | Multi-stage exhaust filtration bank using high-capture efficiency filter media. | Traps airborne lacquer, stain, and paint particulates before air is exhausted, ensuring environmental compliance and protecting equipment. | High-capacity fiberglass or accordion-style paper filters (e.g., Andreae). | 20" x 20" filter pads or custom rolls. | 5 lbs per box | White / Green |
| Lighting Fixtures | Class I, Division 2 explosion-proof LED light fixtures, sealed from the booth interior. | Provides bright, color-corrected (5000K) illumination for accurate color matching and detailed inspection during the finishing process. | Powder-coated steel housing with tempered glass lens. | 4-foot, 4-tube LED fixtures. | 30 lbs per fixture | White |
| Control Panel | UL-Listed central control station for all electrical functions of the wood finishing paint booth. | Allows for safe, one-touch operation of the exhaust fan and lighting systems. Includes motor starters and safety interlocks. | NEMA 12-rated steel enclosure. | 24" H x 20" W x 8" D | 50 lbs | Industrial Gray |
| Product & Personnel Doors | Heavy-duty, insulated main product doors (bi-fold or tri-fold) and a separate personnel door with an observation window. | Provides secure, easy access for moving large items like cabinets and furniture while maintaining a tight seal during operation. | 18-gauge G90 galvanized steel with heavy-duty hinges and latches. | Main: 10' W x 8' H; Personnel: 3' W x 7' H. | 400 lbs (Main); 150 lbs (Personnel) | White powder-coated interior, Gray exterior. |
| Air Makeup Unit (AMU) | (Optional) A direct-fired or indirect-fired heating and filtration unit that supplies tempered, clean air to the booth. | Replaces exhausted air to create a balanced environment, control temperature/humidity for optimal coating cure, and prevent shop-wide drafts. | Weatherproof galvanized steel housing. | Varies by CFM rating. | 1,500 - 3,000 lbs | Mill-finish Galvanized |
Industry Application of Wood Finishing Paint Booth
Our industrial wood finishing paint booth is not only engineered, but it is engineered as a strategic asset for facilities where finish quality, operational efficiency, and regulatory compliance are critical. For procurement managers and production supervisors, investing in our industrial wood finishing paint booth means acquiring a solution engineered for the demanding realities of contemporary wood manufacturing. It is a solution that resolves the core industrial challenge of achieving flawless, repeatable finishes while providing a safe, compliant, and efficient operational environment.
Cabinetry and Custom Millwork
In the cutthroat arena of custom cabinetry and architectural millwork, finish quality is a direct measure of brand equity. Our systems operate as dedicated cabinet paint booths, creating a contaminant-free environment critical for the application of Class A finishes. For procurement, this means a measurable cost avoidance of rework and waste. In order to ensure compliance with regulations, the booths are designed with the ability to meet or exceed the requirements of NFPA 33 and OSHA. The precise air flow and filtration system ensure a flawless application of each coat, from primer to top coat, which is necessary for the high-end residential and commercial market.
High-Volume Furniture Manufacturing
To a high-volume furniture manufacturing business, reliability is the key to profitability. Business downtime is not an option for us. Our furniture spray booth is made for continuous use, as required by a high-use environment. Our booth is made to last, thus serving as a good investment for any business. Our booth is designed with reliability in mind, providing repeatable conditions for a consistent finish. This is critical when it comes to matching colors and sheens across thousands of pieces of furniture. With our booth, manufacturers can be confident of meeting deadlines and quality demands without compromise.
Architectural Woodworking and Fixtures
This industry requires versatility and precision for finishing large and sometimes complex components, which include doors, window casings, and fixtures. Our wood finishing paint booth is the perfect solution for creating a controlled environment for the application of durable and high-performance coatings that require public and commercial exposure. Environmental regulation compliance, particularly in the abatement of VOCs, is one factor that is considered during the procurement phase by contractors and project managers. The booths are constructed to capture overspray, which makes it possible to use sophisticated filters for compliance with environmental regulations.
Musical Instruments and Specialty Woodcraft
In a craft such as luthiery or specialty woodwork, it is not simply a finish; it is an important part of the product. When working with sensitive materials such as nitrocellulose lacquer, an environment that is absolutely pristine environment is required. Our industrial paint booth is the best environment for your work. With our systems, you can ensure that there are no airborne particulates that can detract from a high-gloss finish. The reliability of our systems allows artisans to work with precision, thereby providing a perfect, mirror-finish finish to a product that demands such a finish to establish its premium status.
Buyer Recommendation
Procurement Guide: Selecting Your Wood Finishing Paint Booth
Investing in a Wood Finishing Paint Booth: Weigh your operations, compliance, and supplier capability with these points to help with your procurement decision for quality, safety, and value.
- Sizing and Customization: Our standard booth sizes may not fit your operations. Share your largest workpiece dimensions and floor space with us. We engineer booths to your specific requirements for maximum workflow efficiency.
- Airflow and Filtration: A clean finish starts with clean airflow and proper filtration for Lacquer/Varnish Finishing. Ensure your booth airflow and filtration meet or exceed local VOC and Particulate Regulations.
- Compliance and Certifications: Safety and Legality First: Our booths comply with NFPA 33, OSHA, and IFC Regulations. Request compliance certificates to avoid costly fines.
- Supplier Export Capability: We have experience shipping to international buyers and can arrange safe and timely delivery to your location worldwide.
- MOQ and Bulk Supply: Our MOQ is 1 Unit for single-booth installations. We also offer bulk supply for larger operations, phased delivery, and competitive pricing for bulk orders.
- Warranty, Parts Availability, and Support: We offer a full manufacturer’s warranty for major components, parts availability for filters, motors, etc., and technical support for installation and assistance.
- Detailed Itemized Quotation: We provide a transparent quotation with a detailed breakdown of costs for booth structure, control panel, lighting, filtration, fan/motor, and optional components like curing ovens or air make-up units, etc., with no hidden costs.
Product Comparison
Product Comparison: Choosing the Right Finishing Solution
The selection of the best environment for finishing is a critical decision with a direct influence on the quality of the finish, efficiency, and safety. Although there are several alternatives, a specialized wood finishing paint booth is designed with specific features for wood coating applications. The following table compares our specialized booths with other alternatives.
| Feature / Aspect | Our Wood Finishing Paint Booth | DIY / Makeshift Enclosure | Open-Face Spray Booth | Automotive Paint Booth |
|---|---|---|---|---|
| Price | Moderate to High (Capital Investment) | Very Low (Material Costs Only) | Low to Moderate | High to Very High |
| Durability | High: Constructed with industrial-grade galvanized steel for long-term production use and structural integrity. | Very Low: Temporary materials like plastic sheeting offer no long-term durability and require frequent replacement. | Moderate: Steel construction but simpler design, less robust than fully enclosed models. | Very High: Heavy-duty construction designed for demanding industrial and automotive environments. |
| Key Features | Optimized airflow for wood coatings, multi-stage filtration for dust & overspray, color-corrected lighting, NFPA/OSHA compliance, and optional curing systems. | Basic containment, often using box fans and furnace filters. Lacks critical safety interlocks and proper ventilation. | Exhaust chamber with filtration and fan. Lacks full contamination control and is less effective for larger pieces. | High-temperature baking cycles, advanced downdraft airflow, complex control systems. Often over-specified for wood. |
| Performance | Excellent: Superior contamination control for a flawless finish. High transfer efficiency and a safe, compliant operating environment. | Poor: High risk of dust and debris ruining the finish. Inconsistent airflow and significant fire/inhalation hazards. | Fair: Provides good overspray capture but is susceptible to airborne contaminants from the surrounding shop environment. | Excellent (for Metal): Superior finish quality, but high-heat curing can damage wood, causing warping, cracking, or joint failure. |
| Target Users | Professional cabinet makers, furniture manufacturers, architectural millwork shops, and high-volume woodworking operations. | Hobbyists, DIYers, or for very infrequent, non-critical, one-off projects. Not suitable for commercial use. | Small shops with space constraints, operations finishing small parts, or as a designated priming/sealing station. | Auto body and collision repair shops, aerospace and industrial metal finishers. Not optimized for wood substrates. |
Analysis: Although cheaper alternatives are available, this comes with significant trade-offs in finish quality, safety, and compliance. Although an automotive paint booth is a high-performance option, it is also inefficient and can cause damage in a woodworking application with its high-temperature cure systems. Our wood finishing paint booth is the ultimate solution for those who wish to balance investment with the specific environmental control, safety, and performance needed for professional woodworking and furniture manufacturing operations.
