Corrosion Coatings
Alloy 625 Wires is sprayed to protect steel structures and vessels.
EnquireWire
Alloy 625 Wires
Browse full product photos, component close-ups, and application views.
Review the key product specifications used for quotation and application planning.
Watch how the machine performs in real blasting and surface preparation conditions.
Alloy 625 Wires
Alloy 625 Wires is matched to the coating chemistry the job requires.
Wire is fed through the flame or arc spray gun drive rolls.
Flame or electric arc melts the wire as it reaches the nozzle.
Compressed air sprays molten droplets onto the prepared substrate.
Passes overlap until the specified coating thickness is reached.
Bond, texture, and thickness are checked before the part ships.

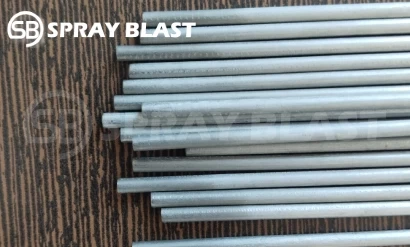

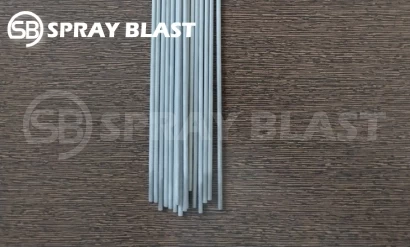

During the thermal spray coating procedure, alloy 625 wires are employed. Alloy 625 wire is a nickel-chromium alloy that is utilized for its high strength, outstanding fabricability, joining, and corrosion resistant qualities. The service temperature of alloy 625 ranges from very low to 1800°F (982°C). Strength in alloy 625 is generated from the stiffness impact of molybdenum wire and niobium on the Ni-Cr matrix, hence precipitation hardening procedures are not required. This mix of components also contributes to alloy 625's outstanding resistance to a wide variety of corrosion and high-temperature effects such as carburization and oxidation. Alloy 625 wires have qualities that make them a great choice for seawater applications. These properties include resistance to pitting and crevice corrosion, high fatigue and tensile strength, and resistance to chloride-ion stress corrosion cracking.
Alloy 625 wires include products suitable for general use coating as well as supplementary products for specific coating applications. The resulting alloy wire coating has a high degree of structural integrity. Alloy wire forms a thick coating on the substrate's surface. This material selection is determined by the coating environment. All of the materials utilized for machine element restoration and bond coating are present in alloy 625 wires.
Compare Alloy 625 Wires with other models in Wire.
| Specification | Metalizing Wire | This model Alloy 625 Wires | Aluminum Wire |
|---|---|---|---|
| Material | Zinc, Aluminium | — | Aluminum |
| Diameter | 6.00 mm To dia 1.20 mm. | 10 mm To 100 mm | 3.15 mm |
| Weight | 44lbs (20kgs) 450lbs (204kgs) | — | — |
| Packaging Size | 1/16"(1.6mm) (2mm) 3/32"(2.3mm) 1/8"(3.2mm) 3/16"(4.8mm) | — | — |
| Brand | Spray Blast | Spray Blast | Spray Blast |
| Country | India | India | India |
| Packaging | Spool Drum | — | — |
| Color | Silver | — | — |
| Delivery Time | 5-7 Days | 1 Weeks | 1-2 Weeks |
| Transport Type | Land / Sea / Air Transport | — | — |
| Price Range | Rs 350 - 7900 /kg | Rs 200 - 350 /kg | Rs 340/KG - 490/KG |
| Density | — | 8.4 g/cm3 | — |
| Melting Point | — | 1.350 °C (2460 °F) | — |
| Tensile Strength | — | Psi – 1,35,000 , MPa – 930 | 82 -115 Mpa |
| Minimum Order Quantity | — | 40 Kg | — |
| Production Capacity | — | 10 Tons | 2-3 Tons Daily |
| From | — | — | Wire |
| Wire Rod Thickness | — | — | From 8mm up to 20mm |
| Purity | — | — | 99.98 % |
| max. Resistivity | — | — | 0.028035 Ohm mm2/m |
| Conductivity(min) | — | — | 61.50 %IACS |
| Density at 20oC | — | — | 2705 Kg/m3 |
| Packaging Details | — | — | Carton, Bobbins |
| Nominal Cross Section Area | — | — | 0.5-150 mm2 |
| Resistance of Conductor | — | — | 0.254-52 ohm/km |
| Length | — | — | 6 - 12 m |
Typical applications for Alloy 625 Wires across industrial blasting, coating, and surface preparation work.
Alloy 625 Wires is sprayed to protect steel structures and vessels.
EnquireWorn shafts or housings are built up with sprayed alloy.
EnquireA sprayed layer keys later ceramic or carbide coats.
EnquireProduction parts receive a consistent sprayed metal film.
EnquireField metallizing restores large steel assets.
EnquireSelected wires are used where sparking risk must stay low.
EnquireBabbitt and similar alloys rebuild white-metal surfaces.
EnquireNickel or molybdenum wires coat parts that see heat.
EnquireAnswer a few questions and we will suggest a starting configuration for Alloy 625 Wires — then confirm the exact specification with our team.
Clear answers on specification, usage, and what to expect before you request a quote.
Tell us the application, quantity, and delivery need for Alloy 625 Wires.
Tell us the product, application, quantity, or repeat supply requirement for steel shot, steel grit, garnet abrasive, glass beads, or related blasting media.
